NSN 3110-01-271-6916 205FF5, 59056111, 5905611-1
Product Details | ANNULAR BALL BEARING
3110-01-271-6916 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 205FF5, 59056111, 5905611-1, 3110-01-271-6916, 01-271-6916, 3110012716916, 012716916
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 JAN 1988 | 01-271-6916 | 00014 ( BEARING, BALL, ANNULAR ) |

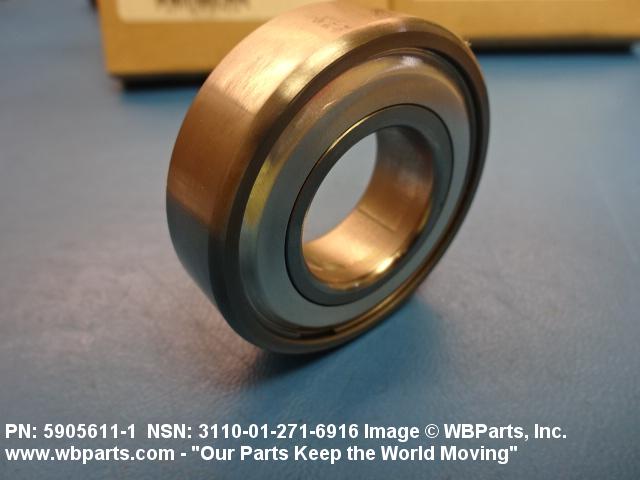

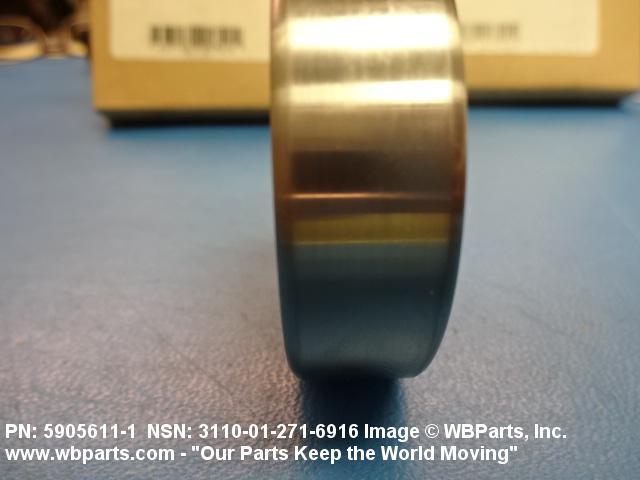

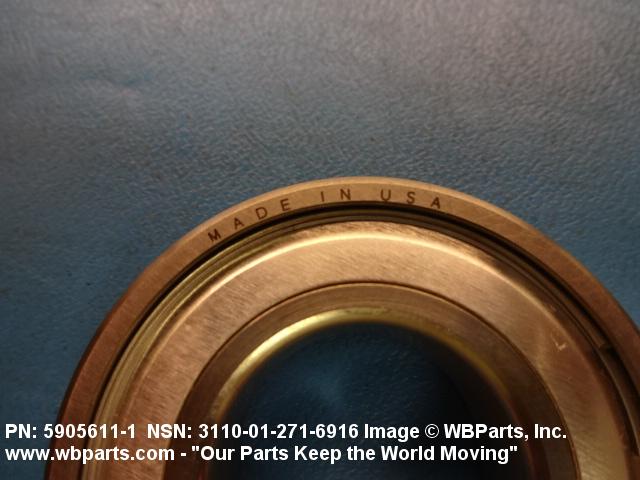

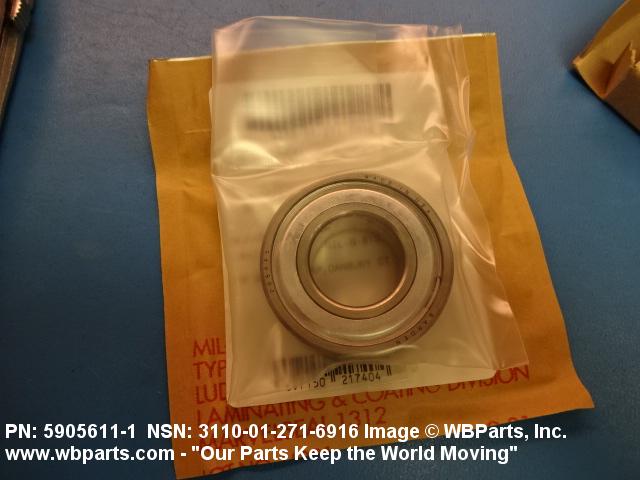

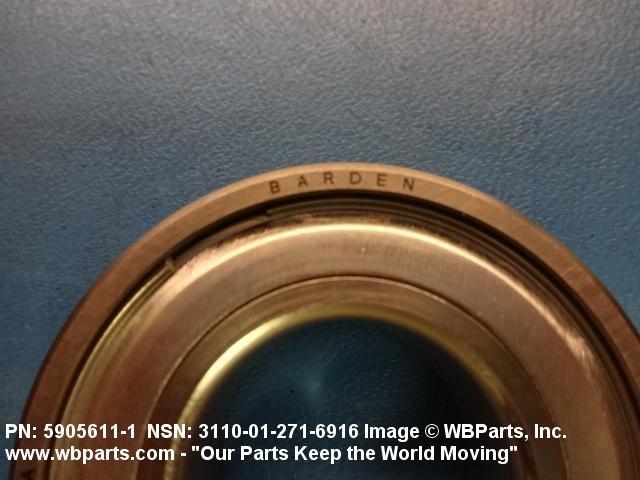

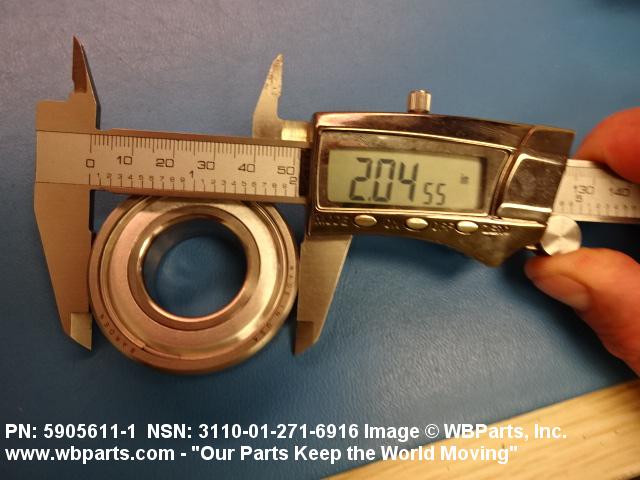

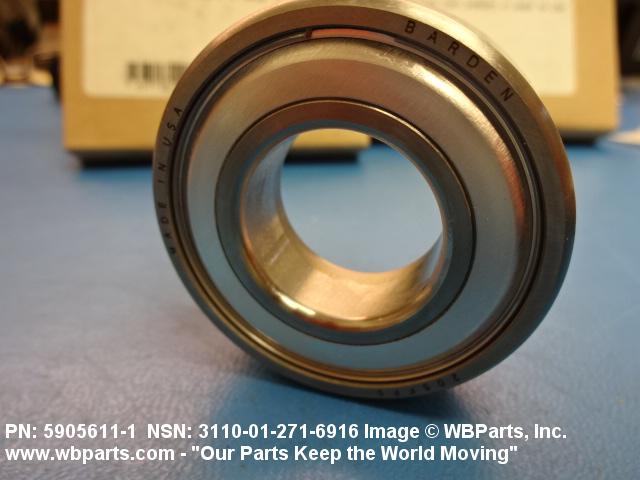

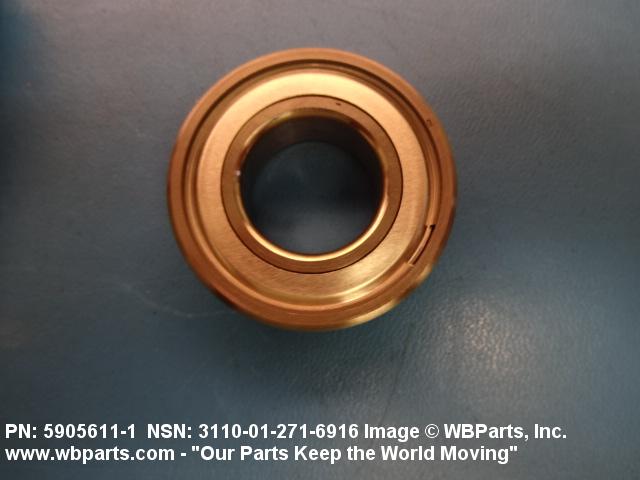

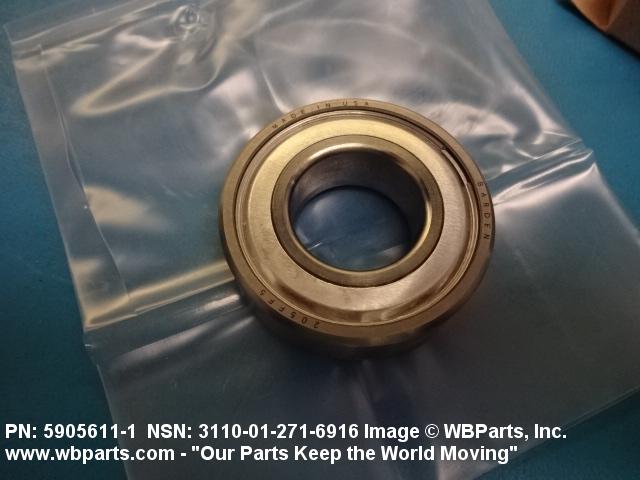

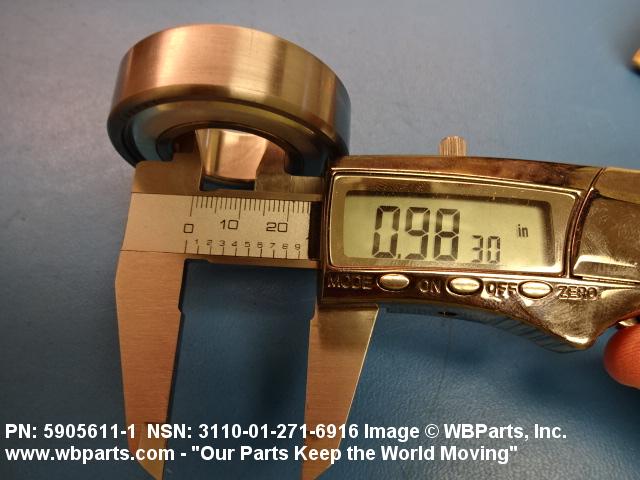

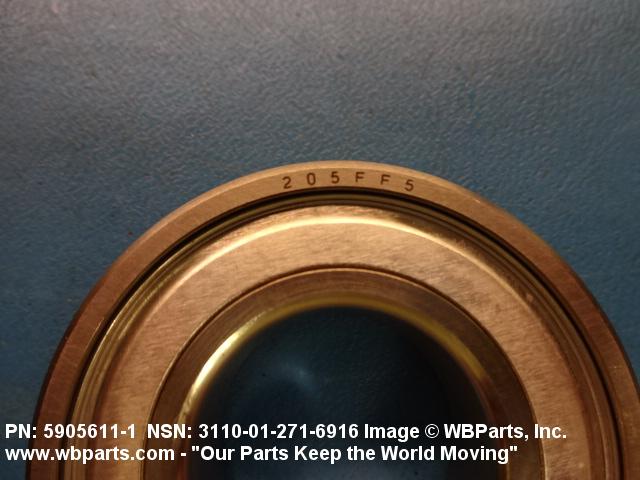

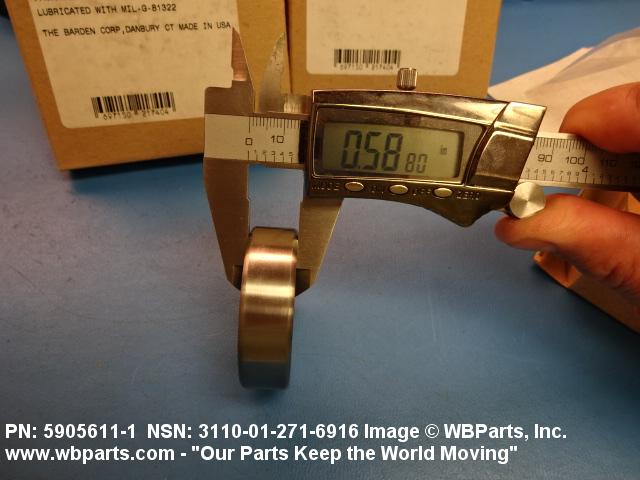

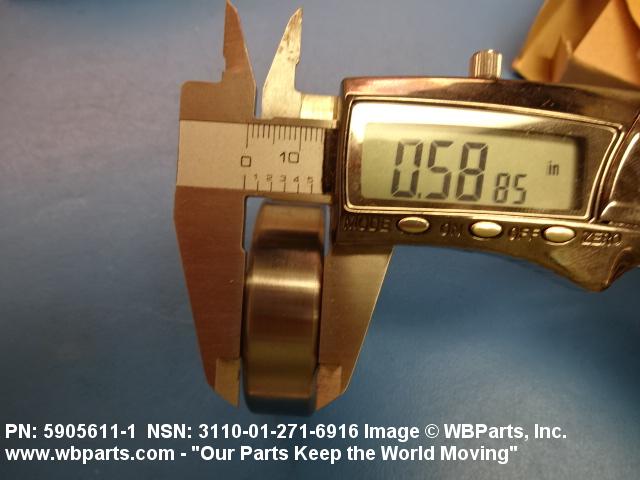

Drawings & Photos | NSN 3110-01-271-6916
Demand History | NSN 3110-01-271-6916
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905611-1 | 2024-09-273 | 31 | DIBBS |
| 3110-01-271-6916 | 2024-04-94 | 45 | United States |
| 5905611-1 | 2023-12-346 | 66 | DIBBS |
| 5905611-1 | 2022-08-223 | 45 | DIBBS |
| 5905611-1 | 2022-08-215 | 45 | DIBBS |
| 5905611-1 | 2021-07-202 | 11 | DIBBS |
| 59056111 | 2019-06-176 | 2 | United States |
| 3110-01-271-6916 | 2019-06-164 | 40 | United States |
| 3110-01-271-6916 | 2018-10-289 | 40 | DIBBS |
| 3110-01-271-6916 | 2018-10-281 | 40 | DIBBS |
| 205FF5 | 2012-12-336 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-271-6916
Related Products | NSN 3110-01-271-6916
Technical Data | NSN 3110-01-271-6916
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 305 OR STEEL COMP 430 RETAINER FIBER SEAL ALUMINUM ALLOY 1100 SHIELD |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE BALL AISI ASSN STD SINGLE MATERIAL RESPONSE INNER RING AISI ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AISI ASSN STD ALL MATERIAL RESPONSES RETAINER MIL-A-148 MIL SPEC SINGLE MATERIAL RESPONSE SHIELD |
| STYLE DESIGNATOR | 48 NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 15.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 25.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 52.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-3545 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0005 INCHES MINIMUM RADIAL AND 0.0009 INCHES MAXIMUM RADIAL |
| BEARING PRELOAD RATING | 35.0 POUNDS NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-271-6916
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-271-6916
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
