NSN 3110-01-264-5996 C6099B, C-6099-B, CT6231
Product Details | NEEDLE ROLLER BEARING
3110-01-264-5996 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: C6099B, C-6099-B, CT6231, CT-6231, 2J4626, 3110-01-264-5996, 01-264-5996, 3110012645996, 012645996
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 05 OCT 1987 | 01-264-5996 | 00051 ( BEARING, ROLLER, NEEDLE ) |
Drawings & Photos | NSN 3110-01-264-5996
Demand History | NSN 3110-01-264-5996
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-264-5996 | 2011-09-252 | 3 | US |
| 2J4626 | 2008-10-294 | 1 | US |
Cross Reference | NSN 3110-01-264-5996
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-264-5996
Related Products | NSN 3110-01-264-5996
Technical Data | NSN 3110-01-264-5996
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

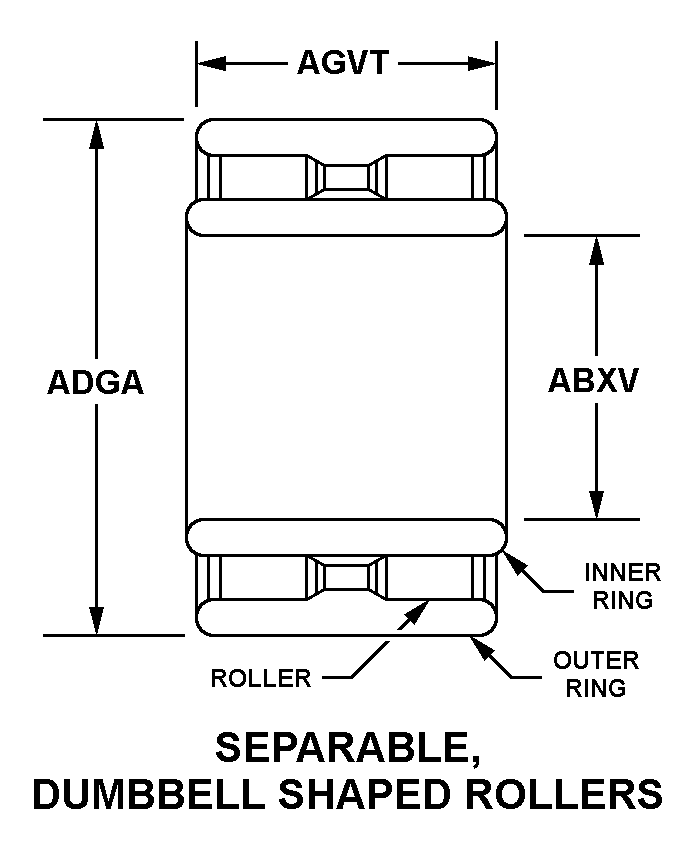

| STYLE DESIGNATOR | 450 SEPARABLE, DUMBBELL SHAPED ROLLERS |
| BORE DIAMETER | 1.9990 INCHES MINIMUM AND 2.0000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 3.6867 INCHES MINIMUM AND 3.6875 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.9590 INCHES MINIMUM AND 0.9640 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-01-264-5996
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-264-5996
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
