NSN 3110-01-264-3805 AAM12210, AAM122-10, 214040257103
Product Details | DUPLEX BALL BEARING
3110-01-264-3805 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Part Alternates: AAM12210, AAM122-10, 214040257103, 214-040-257-103, 3110-01-264-3805, 01-264-3805, 3110012643805, 012643805
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 29 SEP 1987 | 01-264-3805 | 30213 ( BEARING, BALL, DUPLEX ) |
Drawings & Photos | NSN 3110-01-264-3805
Demand History | NSN 3110-01-264-3805
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-264-3805 | 2020-10-304 | 1 | DIBBS-RFPs |
| 214-040-257-103 | 2019-07-191 | 9 | DIBBS |
| 214-040-257-103 | 2019-05-139 | 9 | DIBBS |
| 3110-01-264-3805 | 2018-10-301 | 4 | DIBBS |
| 3110-01-264-3805 | 2018-04-113 | 3 | DIBBS |
| 3110-01-264-3805 | 2017-11-312 | 4 | DIBBS |
| 3110-01-264-3805 | 2017-10-278 | 5 | DIBBS |
| 3110-01-264-3805 | 2017-09-249 | 2 | DIBBS |
| 214040257103 | 2014-02-58 | 6 | United States |
| 3110-01-264-3805 | 2014-02-48 | 2 | DIBBS |
| 3110-01-264-3805 | 2014-02-48 | 12 | DIBBS |
| 3110-01-264-3805 | 2013-07-186 | 46 | DIBBS-RFPs |
| 3110-01-264-3805 | 2013-06-157 | 10 | DIBBS |
| 3110-01-264-3805 | 2012-11-318 | 6 | DIBBS |
| 3110-01-264-3805 | 2011-02-32 | 2 | DIBBS |
| 3110-01-264-3805 | 2010-03-78 | 10 | DIBBS |
| 3110-01-264-3805 | 2009-02-36 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-264-3805
Related Products | NSN 3110-01-264-3805
Technical Data | NSN 3110-01-264-3805
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6491 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

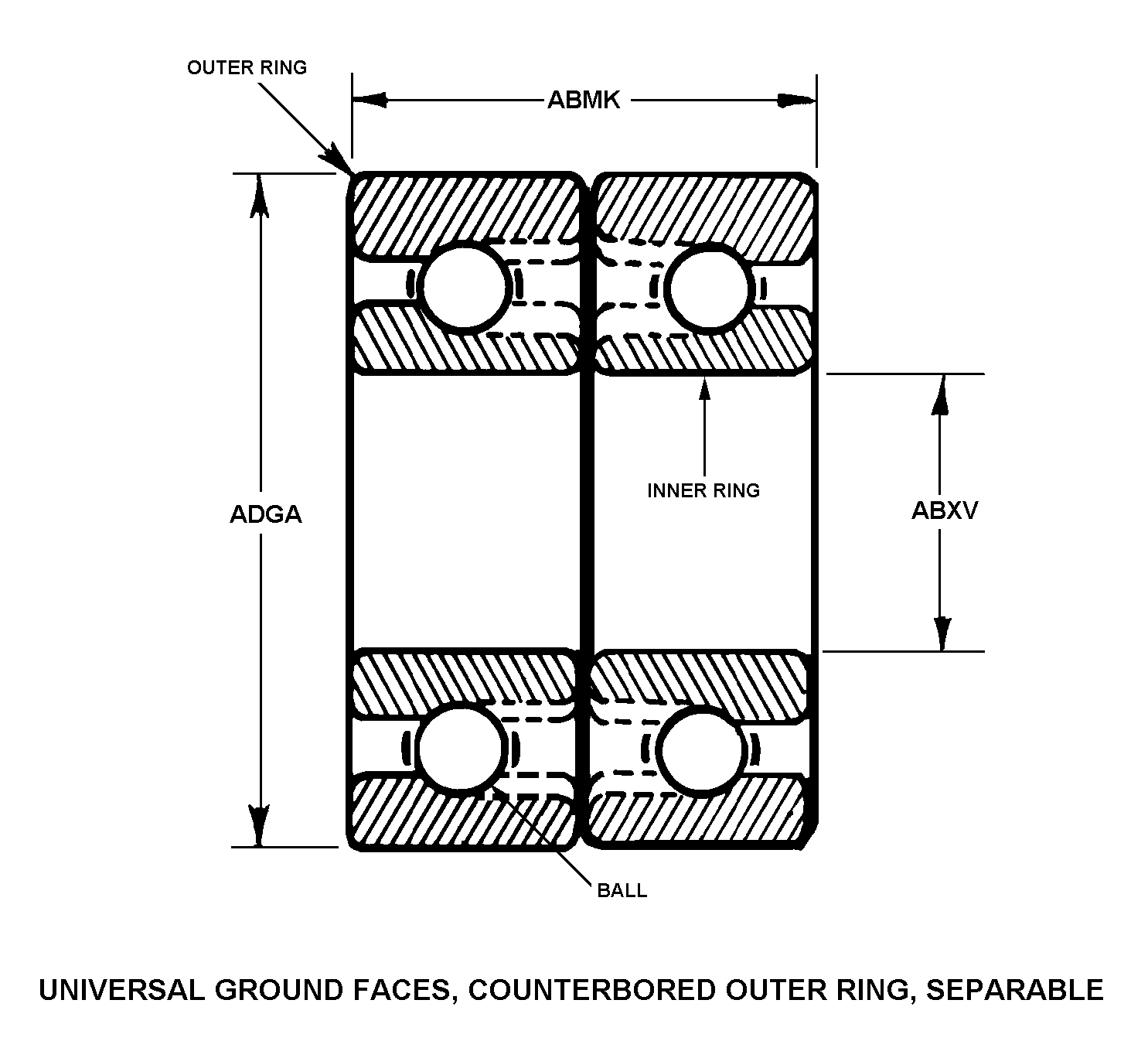

| STYLE DESIGNATOR | 90B UNIVERSAL GROUND FACES, COUNTERBORED OUTER RING, SEPARABLE |
| OVERALL WIDTH | 2.4996 INCHES MINIMUM AND 2.5196 INCHES MAXIMUM |
| BORE DIAMETER | 4.3302 INCHES MINIMUM AND 4.3307 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 7.2828 INCHES MINIMUM AND 7.2835 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | ANGULAR |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 214-040-257-103 |
Restrictions/Controls & Freight Information | NSN 3110-01-264-3805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-264-3805
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
