NSN 3110-01-253-4488 4004C6634, 4004C6-6-34, 4004C6634WE

Product Details | BEARING ROLLER

3110-01-253-4488 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.

Part Alternates: 4004C6634, 4004C6-6-34, 4004C6634WE, 4004C6-634WE, 3110-01-253-4488, 01-253-4488, 3110012534488, 012534488

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	18 APR 1987	01-253-4488	00037 ( ROLLER, BEARING )

Drawings & Photos | NSN 3110-01-253-4488

Part Number	Request Date	QTY	Origin
4004C6-6-34	2025-03-82	252	DIBBS
4004C6-634WE	2025-03-82	252	DIBBS
4004C6-6-34	2025-01-23	299	DIBBS
4004C6-634WE	2025-01-23	299	DIBBS
4004C6-6-34	2024-09-267	151	DIBBS
4004C6-634WE	2024-09-267	151	DIBBS
4004C6-6-34	2024-05-140	145	DIBBS
4004C6-634WE	2024-05-140	145	DIBBS
4004C6-6-34	2024-02-46	149	DIBBS
4004C6-634WE	2024-02-46	149	DIBBS
4004C6-6-34	2023-10-288	105	DIBBS
4004C6-634WE	2023-10-288	105	DIBBS
3110-01-253-4488	2018-08-220	1	DIBBS-RFPs
3110-01-253-4488	2013-09-266	135	DIBBS
3110-01-253-4488	2011-03-80	307	DIBBS
3110-01-253-4488	2011-02-34	307	DIBBS
3110-01-253-4488	2010-08-222	307	DIBBS
3110-01-253-4488	2010-06-165	201	DIBBS
3110-01-253-4488	2010-02-54	201	DIBBS
3110-01-253-4488	2009-12-344	98	DIBBS
3110-01-253-4488	2008-11-316	98	DIBBS
3110-01-253-4488	2007-06-179	286	DIBBS

Cross Reference | NSN 3110-01-253-4488

Part Number	Cage Code	Manufacturer
4004C6-6-34	2S718	KOYO BEARINGS USA LLC DBA SYLVANIA BEARINGS PLANT
4004C6-6-34	5XMS1	KOYO BEARINGS USA LLC DIV HEADQUARTERS
4004C6-6-34	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
4004C6-6-34	78118	MPB CORPORATION DBA TIMKEN AEROSPACE
4004C6-6-34	99167	HAMILTON SUNDSTRAND CORPORATION
4004C6-634WE	26647	WENCOR GROUP, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-253-4488

Compare

Related Products | NSN 3110-01-253-4488

3110-01-253-4748, 3110-01-253-4759, 3110-01-253-4767, 3110-01-253-4783, 3110-01-253-4784

Technical Data | NSN 3110-01-253-4488

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OVERALL

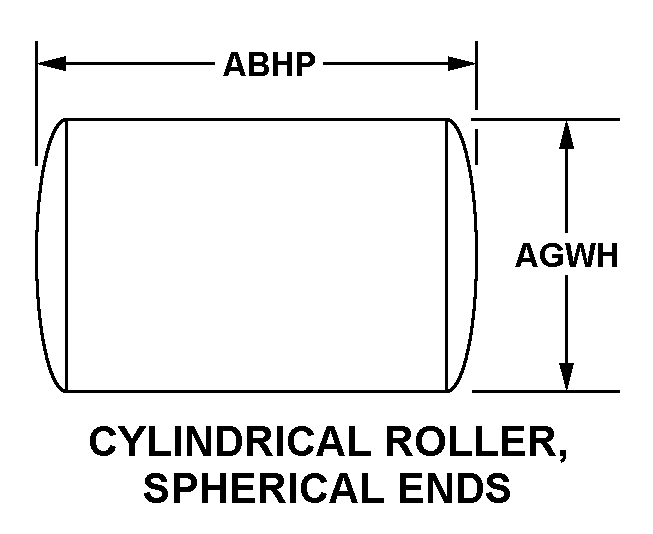

STYLE DESIGNATOR	530 CYLINDRICAL ROLLER, SPHERICAL ENDS
OVERALL LENGTH	6.0 MILLIMETERS NOMINAL
ROLLING ELEMENT DIAMETER	6.0 MILLIMETERS NOMINAL
SPECIAL FEATURES	MATCHED SET OF 34 ROLLERS
SPECIFICATION/STANDARD DATA	99167-4004 MANUFACTURERS STANDARD
MANUFACTURERS CODE	99167
MFR SOURCE CONTROLLING REFERENCE	4004C6-6-34

Restrictions/Controls & Freight Information | NSN 3110-01-253-4488

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-253-4488

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 SE : Set

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 SE : Set
