NSN 3110-01-198-3461 T32265, 01-198-3461, 011983461
Product Details | BEARING RETAINING PLATE
3110-01-198-3461 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: T32265, 3110-01-198-3461, 01-198-3461, 3110011983461, 011983461
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 JAN 1985 | 01-198-3461 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-198-3461
Cross Reference | NSN 3110-01-198-3461
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T32265 | 75160 | DEERE & CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-198-3461
Related Products | NSN 3110-01-198-3461
Technical Data | NSN 3110-01-198-3461
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON OVERALL |

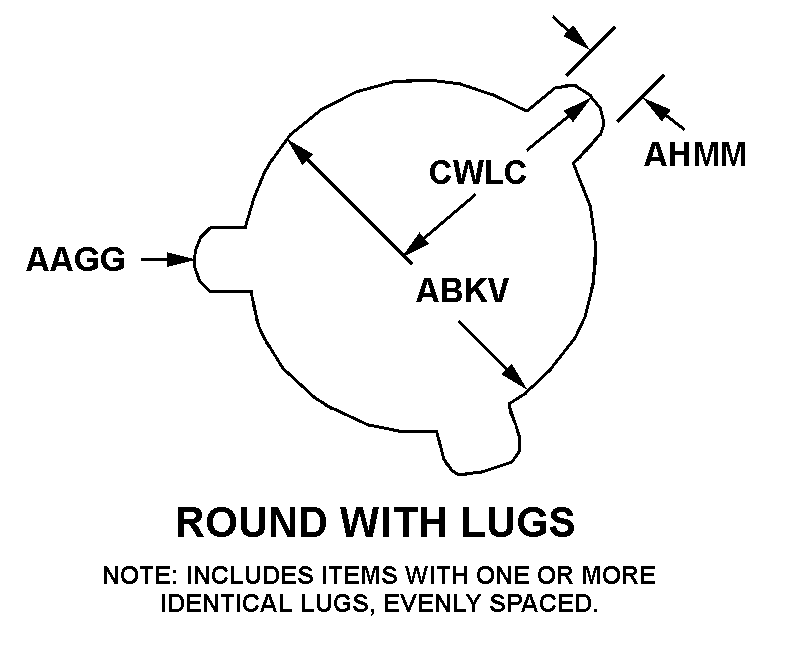

| STYLE DESIGNATOR | B20 ROUND WITH LUGS |
| LUG QUANTITY | 3 |
| OUTSIDE DIAMETER | 4.0000 INCHES NOMINAL |
| LUG WIDTH | 0.760 INCHES NOMINAL |
| RADIUS FROM CENTER OF PLATE TO END OF LUG | 2.380 INCHES NOMINAL |
| MINOR THICKNESS | 0.331 INCHES NOMINAL |
| APERTURE DIAMETER | 1.430 INCHES MINIMUM AND 1.450 INCHES MAXIMUM |
| BODY THICKNESS | 0.501 INCHES NOMINAL |
| OVERALL THICKNESS | 1.550 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 2.249 INCHES MINIMUM AND 2.251 INCHES MAXIMUM |
| SECOND COUNTERBORE DIAMETER | 2.562 INCHES NOMINAL |
| SECOND COUNTERBORE DEPTH | 0.532 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | 0.688 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 2.880 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |

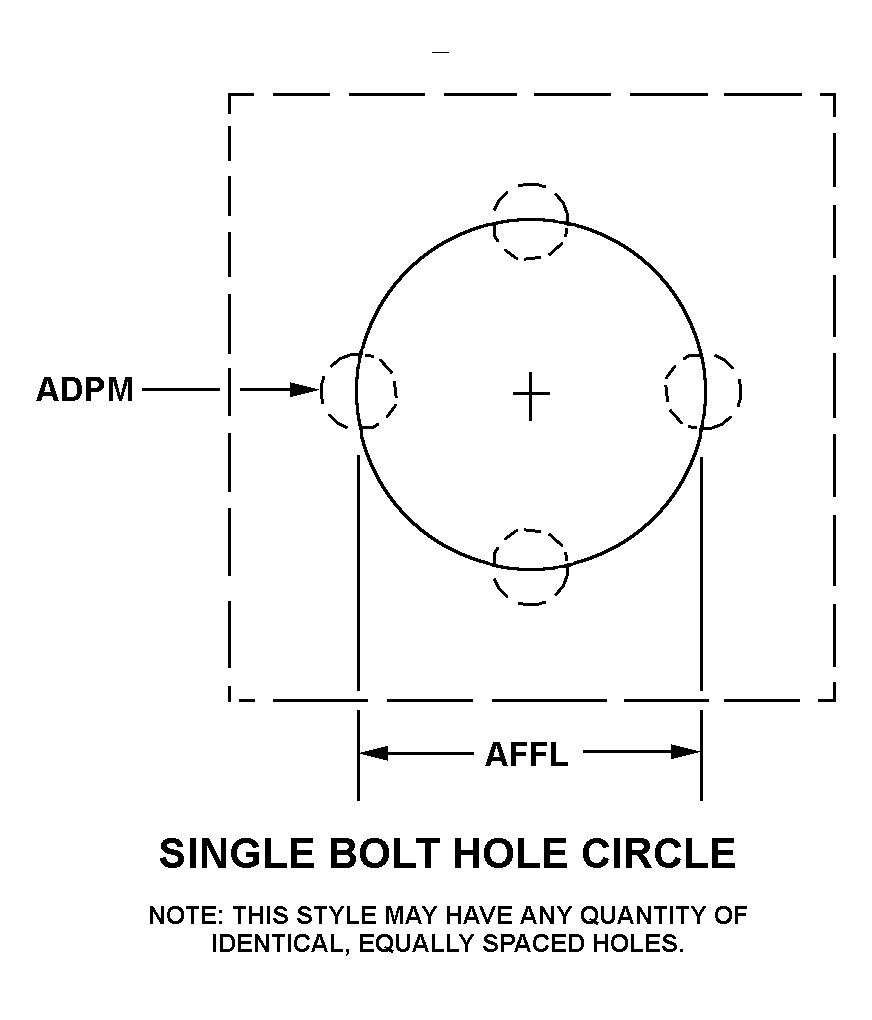

| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 3 |
| MOUNTING BOLT CIRCLE DIAMETER | 4.000 INCHES NOMINAL |
| SPECIAL FEATURES | SECOND RAISED SURFACE BACKFACE 0.719 IN. HIGH,3.260 IN. OD |
