Product Details | BEARING RETAINING PLATE
3110-01-190-2720 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 363B1601, 363B160-1, 3110-01-190-2720, 01-190-2720, 3110011902720, 011902720
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 SEP 1984 | 01-190-2720 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-190-2720
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-190-2720
Related Products | NSN 3110-01-190-2720
Technical Data | NSN 3110-01-190-2720
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CL 1A MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B30 SQUARE |
| LENGTH | 0.940 INCHES NOMINAL |

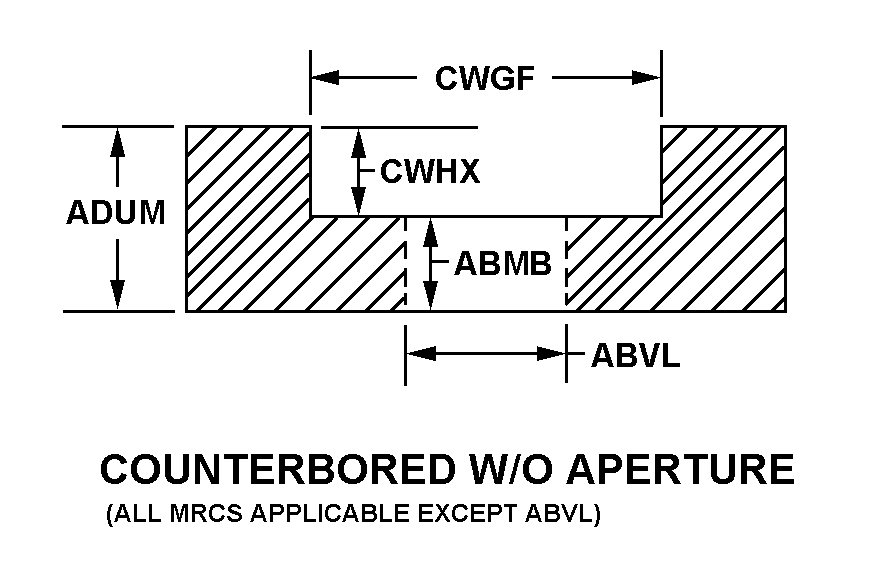

| CROSS-SECTIONAL SHAPE STYLE | C14B COUNTERBORED WITHOUT APERTURE |
| MINOR THICKNESS | 0.180 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 0.5000 INCHES MINIMUM AND 0.5005 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.210 INCHES NOMINAL |
| OVERALL THICKNESS | 0.250 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| MOUNTING HOLE ARRANGEMENT STYLE | D12 FOUR HOLES |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 0.688 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 0.688 INCHES NOMINAL |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.344 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.344 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | F-16 ACFT |
| MANUFACTURERS CODE | 17472 |
| DESIGN CONTROL REFERENCE | 363B160-1 |
