NSN 3110-01-189-7564 3589741, 358974-1, 01-189-7564
Product Details | ANNULAR BALL BEARING
3110-01-189-7564 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 3589741, 358974-1, 3110-01-189-7564, 01-189-7564, 3110011897564, 011897564
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 20 SEP 1984 | 01-189-7564 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-189-7564
Demand History | NSN 3110-01-189-7564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-189-7564 | 2019-02-38 | 10 | MANUAL |
| 3110-01-189-7564 | 2011-08-235 | 192 | DIBBS |
| 3110-01-189-7564 | 2011-06-161 | 125 | DIBBS |
| 3110-01-189-7564 | 2008-06-164 | 2 | Indonesia |
| 3110-01-189-7564 | 2008-04-101 | 307 | DIBBS |
| 3110-01-189-7564 | 2008-01-31 | 283 | DIBBS |
| 3110-01-189-7564 | 2007-09-260 | 190 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-189-7564
Related Products | NSN 3110-01-189-7564
Technical Data | NSN 3110-01-189-7564
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL COMP 4340 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6441 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6441 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6440 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 6441 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 6415 ASSN STD SINGLE MATERIAL RESPONSE RETAINER |
| SURFACE TREATMENT | SILVER RETAINER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2410 ASSN STD SINGLE TREATMENT RESPONSE RETAINER |

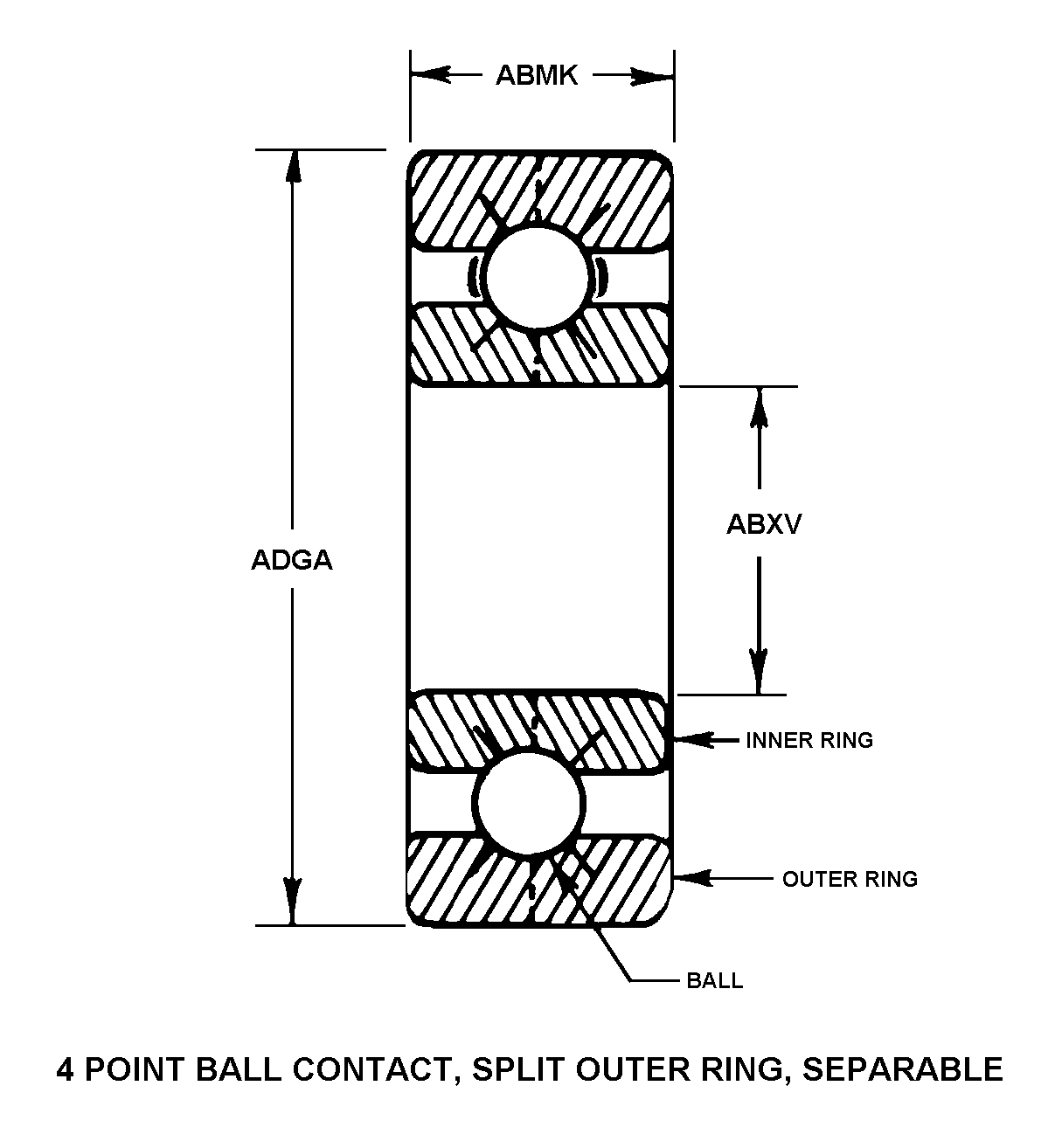

| STYLE DESIGNATOR | 40C 4 POINT BALL CONTACT, SPLIT OUTER RING, SEPARABLE |
| OVERALL WIDTH | 10.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 17.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 35.0 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0007 INCHES MINIMUM RADIAL AND 0.0013 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | DOUBLE HOLDING WIRES ON EACH OUTSIDE CORNERS OF OUTER RING,STEEL 17-4PH;BEARINGS TO BE DEMAGNETIZED,RESIDUAL FIELD STRENGTH NOT TO EXCEED 5.0 GAUSS |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | PLATED RETAINER SILVER |
Restrictions/Controls & Freight Information | NSN 3110-01-189-7564
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-189-7564
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
