NSN 3110-01-179-9512 P9103PPFS381A, Z993L03LR1MV, 10107545
Product Details | ANNULAR BALL BEARING
3110-01-179-9512 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: P9103PPFS381A, Z993L03LR1MV, 10107545 , 103KSZZLOOSER.P.MOBIL28LUBE, 103KSZZLOOSERPMOBIL28LUBE, 1371130113, 137-113-0113, 3110-01-179-9512, 01-179-9512, 3110011799512, 011799512
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 23 MAY 1984 | 01-179-9512 | 00014 ( BEARING, BALL, ANNULAR ) |

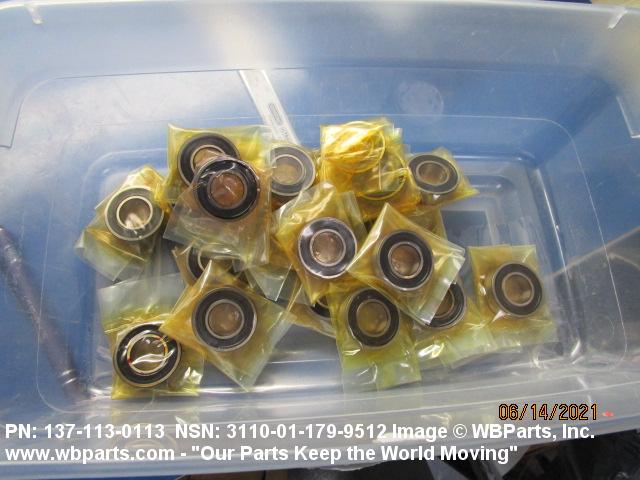

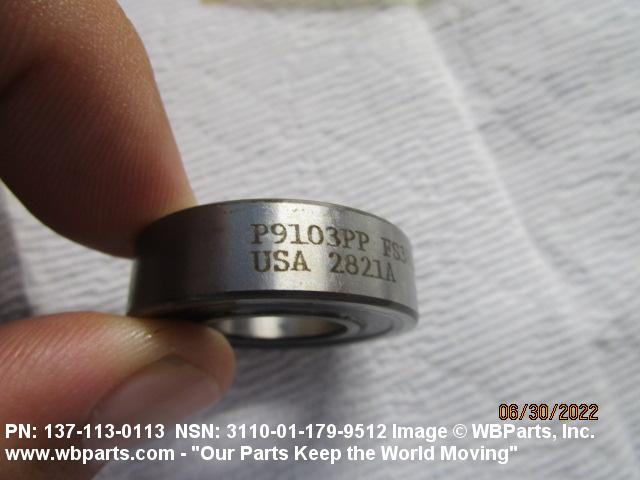

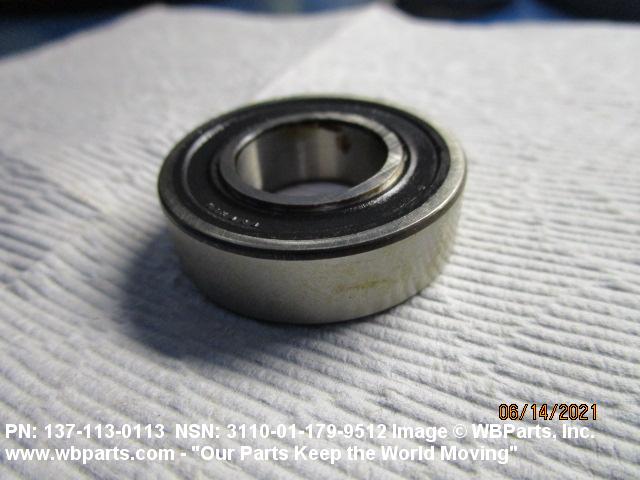

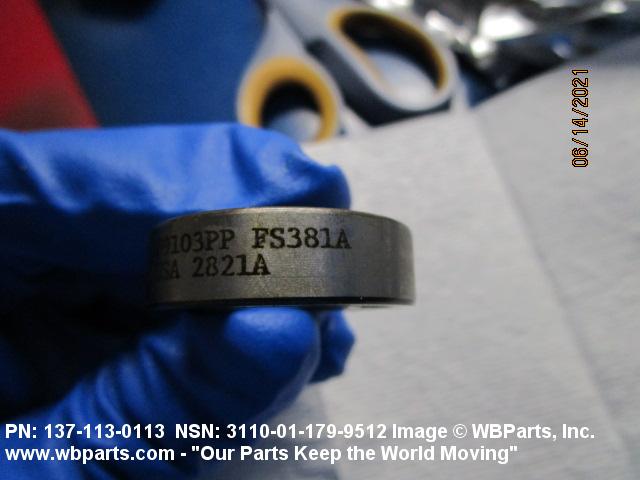

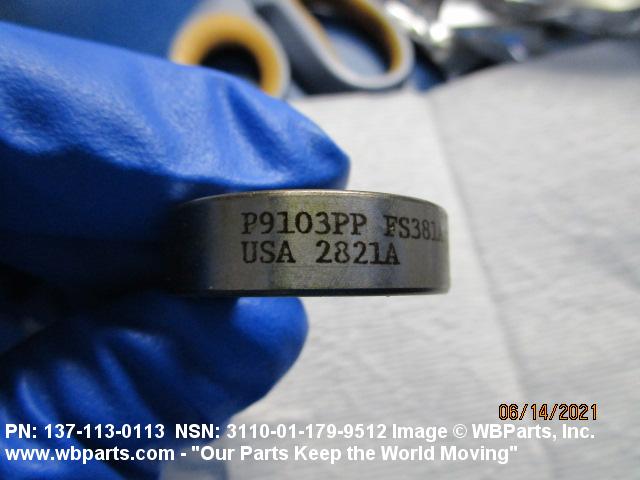

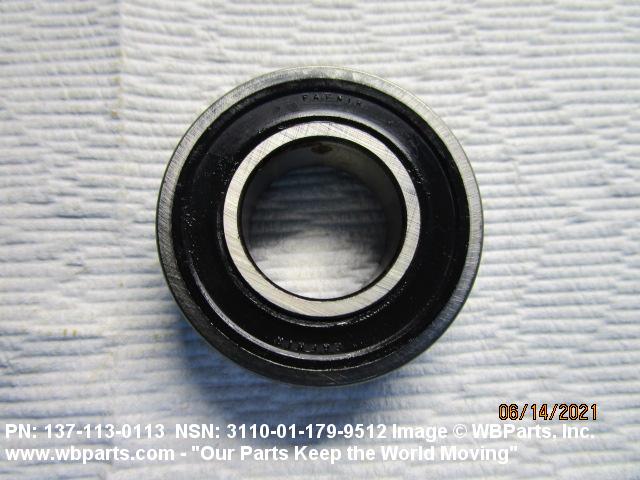

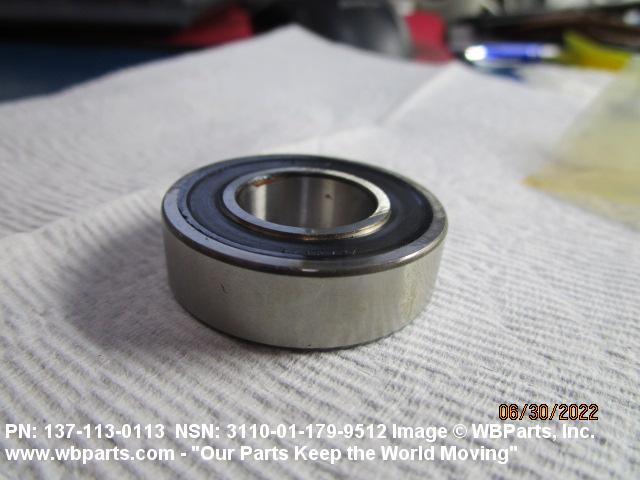

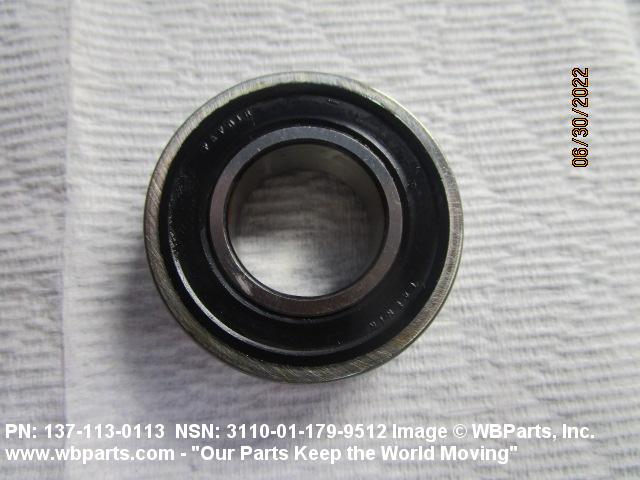

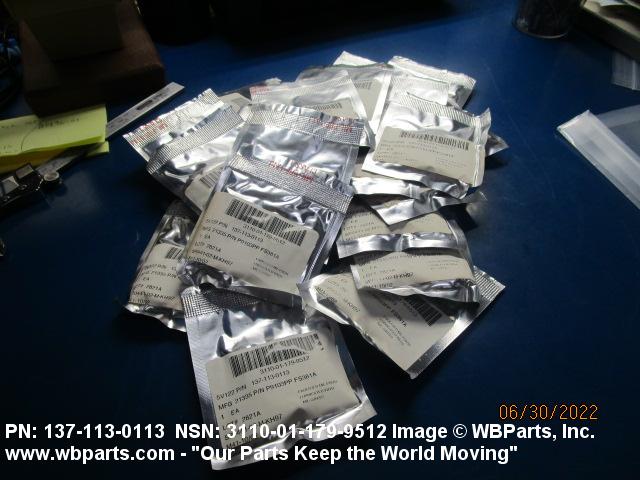

Drawings & Photos | NSN 3110-01-179-9512
Demand History | NSN 3110-01-179-9512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 137-113-0113 | 2024-02-44 | 71 | DIBBS |
| 137-113-0113 | 2024-02-36 | 71 | DIBBS |
| 3110-01-179-9512 | 2022-06-178 | 21 | United States |
| 137-113-0113 | 2021-07-206 | 21 | DIBBS |
| 3110-01-179-9512 | 2021-06-159 | 21 | United States |
| 137-113-0113 | 2021-02-48 | 21 | DIBBS |
| 137-113-0113 | 2020-03-77 | 21 | DIBBS |
| 137-113-0113 | 2019-10-300 | 21 | DIBBS |
| 137-113-0113 | 2019-02-53 | 21 | DIBBS |
| 137-113-0113 | 2019-02-45 | 21 | DIBBS |
| 3110-01-179-9512 | 2018-09-260 | 21 | DIBBS |
| 3110-01-179-9512 | 2018-08-224 | 21 | DIBBS |
| 3110-01-179-9512 | 2017-05-123 | 1 | CO |
| 3110-01-179-9512 | 2017-01-12 | 51 | DIBBS |
| 3110-01-179-9512 | 2017-01-04 | 51 | DIBBS |
| 3110-01-179-9512 | 2016-12-364 | 23 | DIBBS |
| 3110-01-179-9512 | 2016-12-356 | 23 | DIBBS |
| 3110-01-179-9512 | 2016-11-312 | 57 | DIBBS |
| 3110-01-179-9512 | 2016-10-300 | 57 | DIBBS |
| 3110-01-179-9512 | 2016-06-172 | 85 | DIBBS |
| 3110-01-179-9512 | 2016-06-153 | 35 | DIBBS |
| 3110-01-179-9512 | 2016-05-145 | 150 | DIBBS |
| 3110-01-179-9512 | 2016-04-105 | 50 | DIBBS |
| 3110-01-179-9512 | 2016-04-97 | 50 | DIBBS |
| 3110-01-179-9512 | 2015-11-334 | 55 | DIBBS |
| 3110-01-179-9512 | 2008-10-301 | 10 | Colombia |
| 3110-01-179-9512 | 2008-10-276 | 2 | Chile |
Cross Reference | NSN 3110-01-179-9512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103KSZZLOOSER.P.MOBIL28LUBE | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 137-113-0113 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 137-113-0113 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 137-113-0113 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 137-113-0113 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 137-113-0113 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |

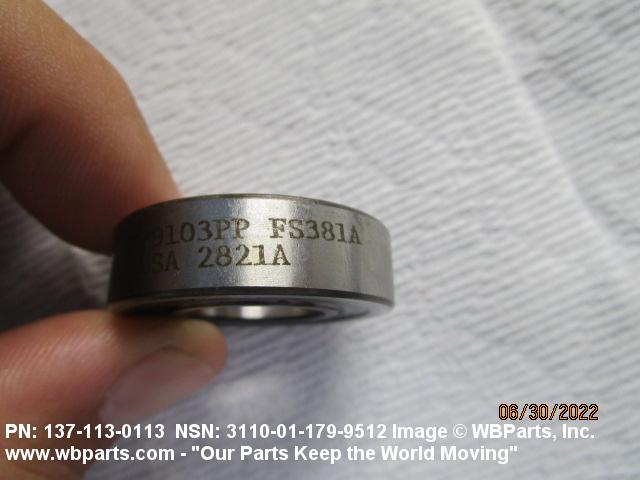

| P9103PPFS381A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| P9103PPFS381A | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| Z993L03LR1MV | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-179-9512
Related Products | NSN 3110-01-179-9512
Technical Data | NSN 3110-01-179-9512
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |

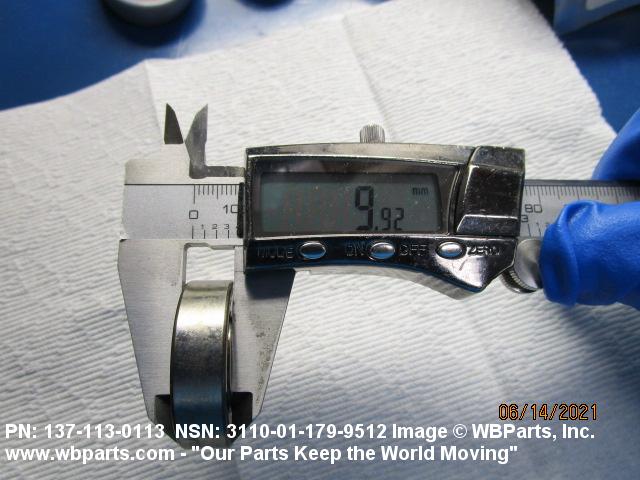

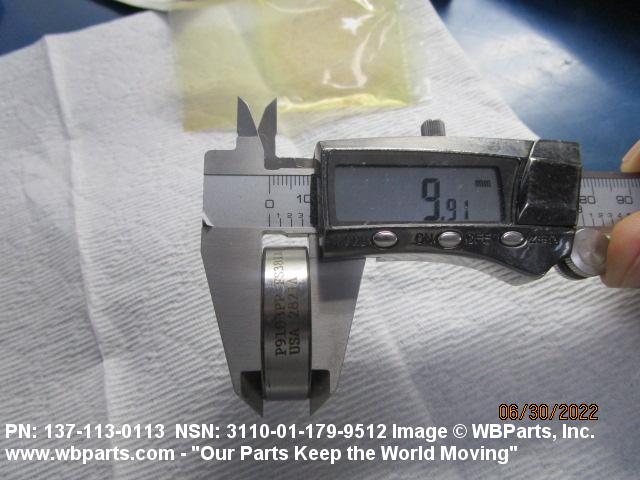

| OVERALL WIDTH | 10.00 MILLIMETERS NOMINAL |

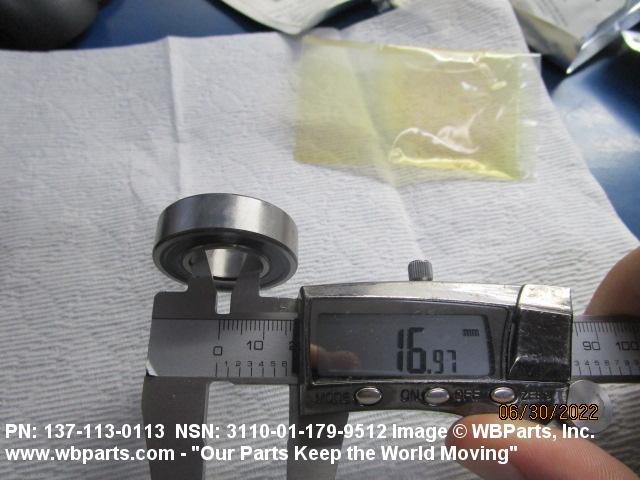

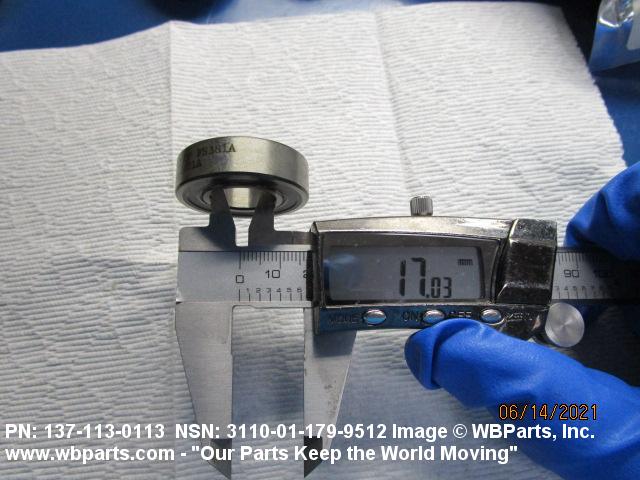

| BORE DIAMETER | 17.00 MILLIMETERS NOMINAL |

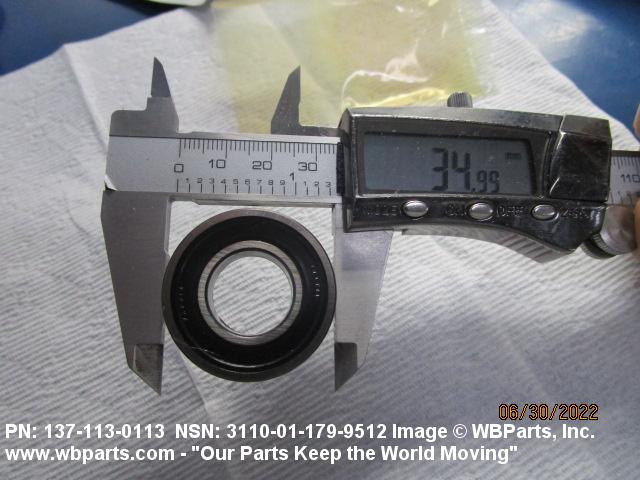

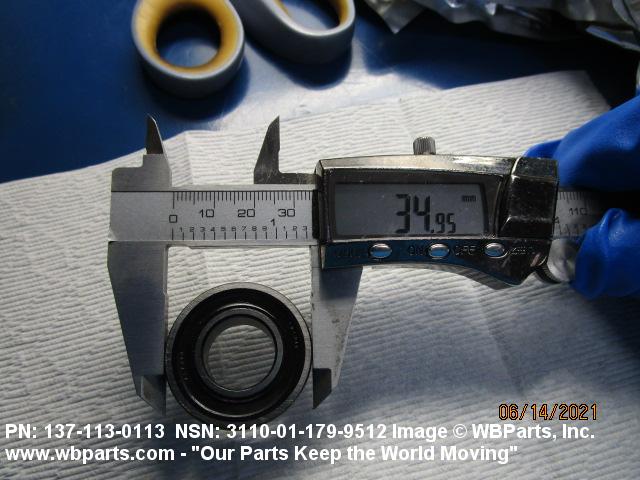

| OVERALL OUTSIDE DIAMETER | 35.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0004 INCHES MINIMUM RADIAL AND 0.0009 INCHES MAXIMUM RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-01-179-9512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-179-9512
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
