NSN 3110-01-129-7977 10159493 , 98208, 01-129-7977
Product Details | BEARING RETAINING PLATE
3110-01-129-7977 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 10159493 , 98208, 3110-01-129-7977, 01-129-7977, 3110011297977, 011297977
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 APR 1982 | 01-129-7977 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-129-7977
Demand History | NSN 3110-01-129-7977
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 98208 | 2022-10-296 | 2 | DIBBS |
| 98208 | 2022-01-31 | 2 | DIBBS |
Cross Reference | NSN 3110-01-129-7977
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98208 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-129-7977
Related Products | NSN 3110-01-129-7977
Technical Data | NSN 3110-01-129-7977
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

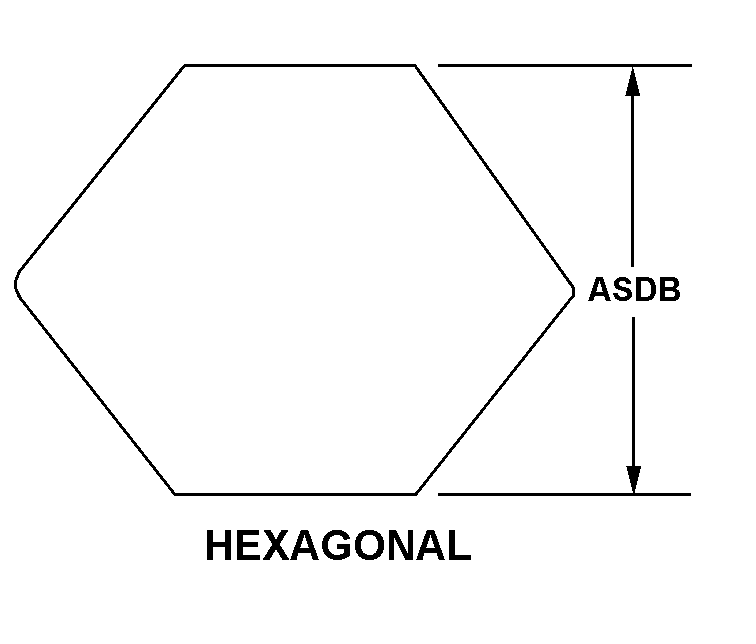

| STYLE DESIGNATOR | B45 HEXAGONAL |
| CROSS-SECTIONAL SHAPE STYLE | C6A RAISED SURFACE WITH APERTURE |
| MINOR THICKNESS | 2.158 INCHES NOMINAL |
| APERTURE DIAMETER | 1.800 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 2.047 INCHES MINIMUM AND 2.0478 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 2.316 INCHES MINIMUM AND 2.320 INCHES MAXIMUM |
| OVERALL THICKNESS | 3.220 INCHES NOMINAL |
| OUTSIDE RAISED SURFACE DIAMETER | 2.3746 INCHES MINIMUM AND 2.3749 INCHES MAXIMUM |
| RAISED SURFACE HEIGHT | 2.282 INCHES MINIMUM AND 2.290 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED, COUNTERSUNK |
| MOUNTING HOLE DIAMETER | 0.1336 INCHES MINIMUM AND 0.1417 INCHES MAXIMUM |
| COUNTERSINK DIAMETER | 0.180 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D1 VERTICAL CENTERLINE |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 2.610 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF LOWER HOLE | 1.305 INCHES NOMINAL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| SPECIAL FEATURES | THREADED MOUNTING HOLES; SIX SECONDARY MOUNTING HOLES 0.216 IN. DIA MIN TO 0.236 IN. DIA MAX,EQUALLY SPACED ON 2.780 IN. DIA BLT CIRCLE |
| MANUFACTURERS CODE | 11599 |
| DESIGN CONTROL REFERENCE | 98208 |
Restrictions/Controls & Freight Information | NSN 3110-01-129-7977
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-129-7977
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
