NSN 3110-01-096-5634 AAV9313K102, AAV9313K-102, 4114021216
Product Details | ANNULAR BALL BEARING
3110-01-096-5634 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: AAV9313K102, AAV9313K-102, 4114021216, 411402-1216 , 61913VAA, 145DS301, 145DS3011, 145DS301-1, 145DS3012, 145DS301-2, 145DS3013, 145DS301-3, 1913S10, 3110-01-096-5634, 01-096-5634, 3110010965634, 010965634
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 JUN 1980 | 01-096-5634 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-01-096-5634
Demand History | NSN 3110-01-096-5634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-096-5634 | 2020-11-324 | 1 | United States |
| 3110-01-096-5634 | 2009-02-37 | 20 | United States |
Cross Reference | NSN 3110-01-096-5634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145DS301 | 77272 | THE BOEING COMPANY DBA BOEING |
| 145DS301-1 | 77272 | THE BOEING COMPANY DBA BOEING |
| 145DS301-2 | 77272 | THE BOEING COMPANY DBA BOEING |
| 145DS301-3 | 77272 | THE BOEING COMPANY DBA BOEING |
| 1913S10 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 61913VAA | 52676 | SKF USA INC. |
| AAV9313K-102 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-096-5634
Technical Data | NSN 3110-01-096-5634
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6490 ASSN STD SINGLE MATERIAL RESPONSE BALL AMS 6490 ASSN STD SINGLE MATERIAL RESPONSE INNER RING AMS 6490 ASSN STD SINGLE MATERIAL RESPONSE OUTER RING AMS 4616 ASSN STD SINGLE MATERIAL RESPONSE RETAINER |

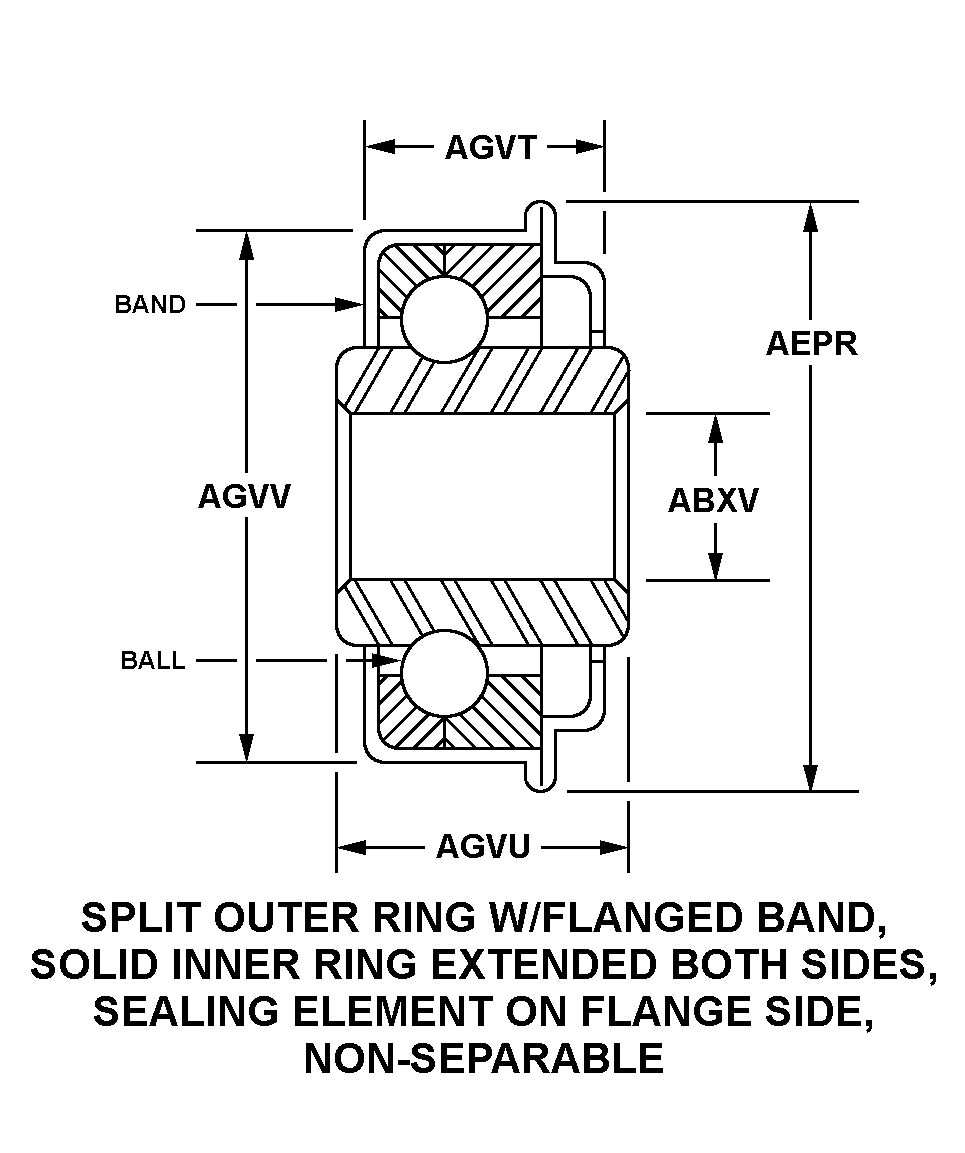

| STYLE DESIGNATOR | 60 SPLIT OUTER RING WITH FLANGED BAND, SOLID INNER RING EXTENDED BOTH SIDES, SEALING ELEMENT ON FLANGE SIDE, NON-SEPARABLE |
| OVERALL WIDTH | 13.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 65.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 90.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0019 INCHES NOMINAL RADIAL AND 0.0110 INCHES NOMINAL AXIAL |
| SPECIAL FEATURES | STABILIZED FOR OPERATION FROM M65 DEG F TO P600 DEG F,C60.0 ROCKWELL HARDNESS BALLS AND RINGS,B55.0 ROCKWELL HARDNESS RETAINER |
| TEST DATA DOCUMENT | 77272-145DS301-1 DRAWING |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY SOURCE CONTROL DRAWING |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | RETAINER SILVER |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 145DS301 |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 145DS301-3 |
