NSN 3110-01-084-2535 SB3217201, SB3217-201, L305610XX2397
Product Details | TAPERED ROLLER BEARING CUP
3110-01-084-2535 An outer component of a tapered roller bearing which provides a contact surface for the rolling elements of the bearing.
Part Alternates: SB3217201, SB3217-201, L305610XX2397, L305610XX-2-397, 3110-01-084-2535, 01-084-2535, 3110010842535, 010842535
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 OCT 1979 | 01-084-2535 | 00024 ( CUP, TAPERED ROLLER BEARING ) |

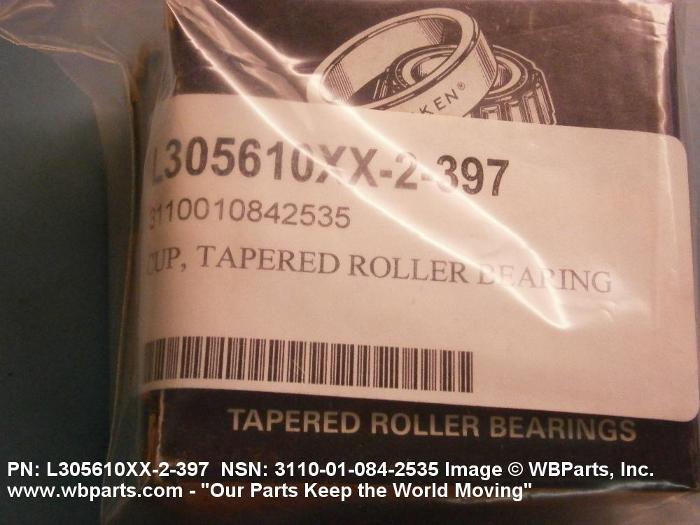

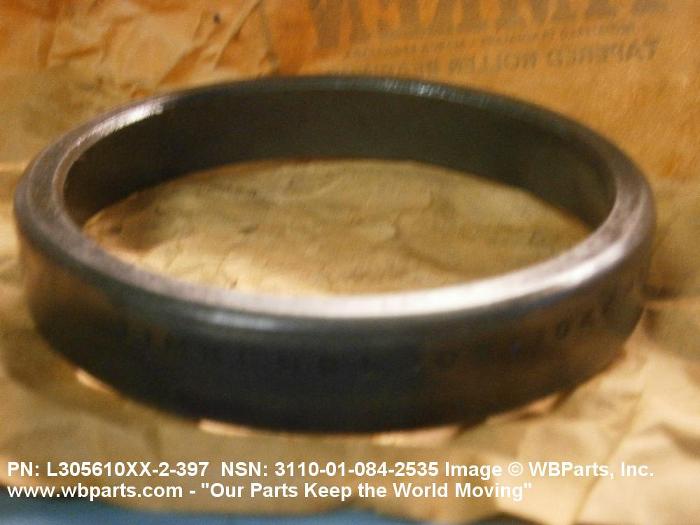

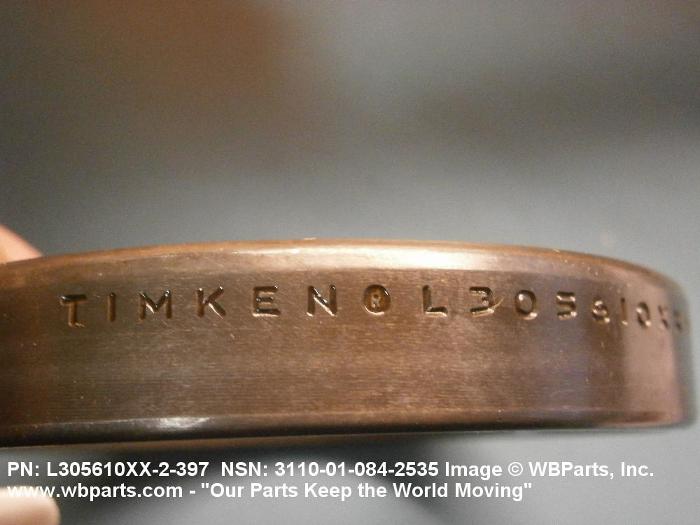

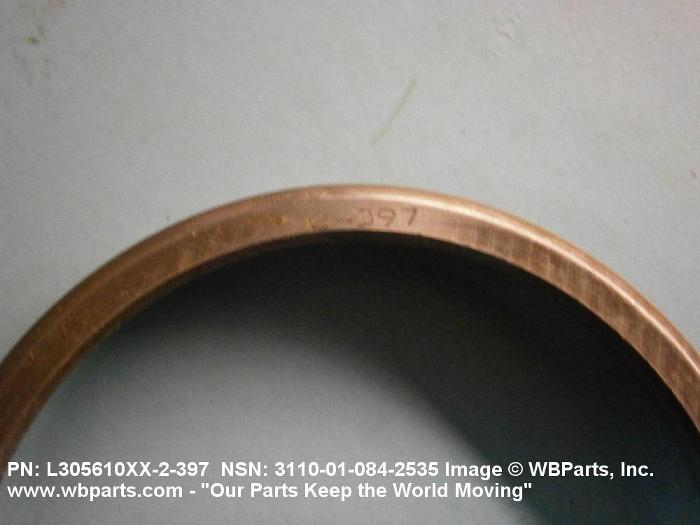

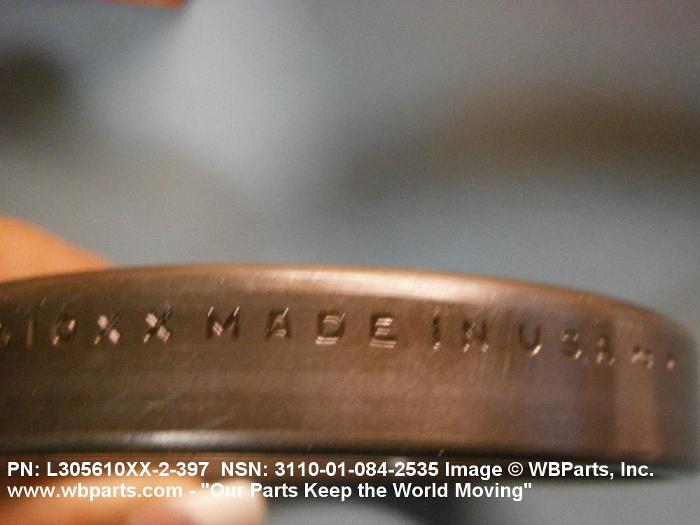

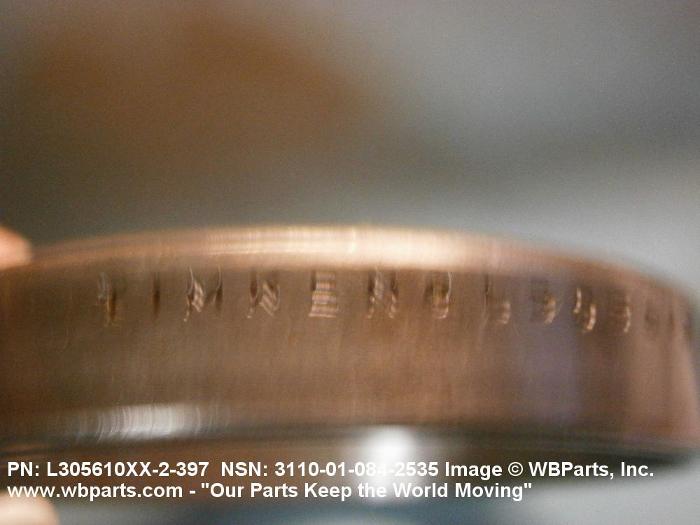

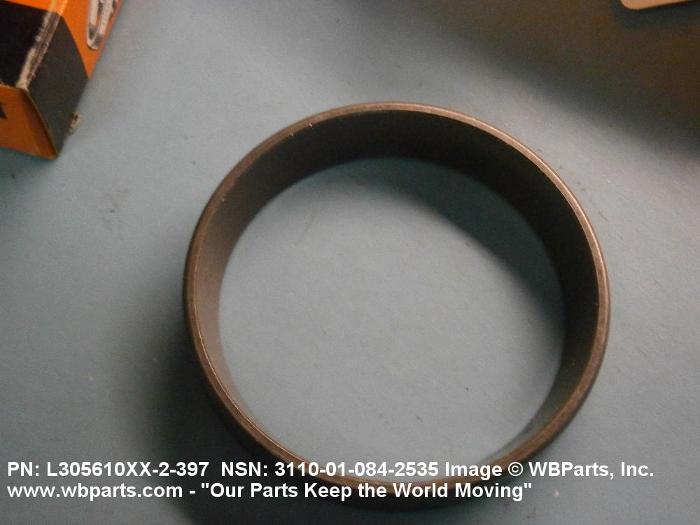

Drawings & Photos | NSN 3110-01-084-2535
Demand History | NSN 3110-01-084-2535
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-084-2535 | 2022-05-137 | 1 | United States |
| SB3217-201 | 2021-12-360 | 471 | DIBBS |
| 3110-01-084-2535 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-01-084-2535 | 2020-08-232 | 1 | Canada |
| 3110-01-084-2535 | 2020-05-150 | 1 | United States |
| SB3217-201 | 2019-06-156 | 171 | DIBBS |
| 3110-01-084-2535 | 2018-12-347 | 1 | United States |
| 3110-01-084-2535 | 2018-11-332 | 263 | DIBBS |
| 3110-01-084-2535 | 2017-07-186 | 197 | DIBBS |
| 3110-01-084-2535 | 2017-05-136 | 242 | DIBBS |
| 3110-01-084-2535 | 2017-01-10 | 266 | DIBBS |
| 3110-01-084-2535 | 2016-11-318 | 189 | DIBBS |
| 3110-01-084-2535 | 2015-11-309 | 172 | DIBBS |
| 3110-01-084-2535 | 2014-08-223 | 1 | DIBBS |
| 3110-01-084-2535 | 2014-06-168 | 133 | DIBBS |
| 3110-01-084-2535 | 2013-04-111 | 115 | DIBBS |
| SB3217201 | 2012-06-177 | 5 | Hong Kong |
| SB3217201 | 2012-04-97 | 5 | Hong Kong |
| 3110-01-084-2535 | 2011-10-300 | 231 | DIBBS |
| 3110-01-084-2535 | 2011-08-235 | 39 | DIBBS |
| SB3217201 | 2011-07-206 | 2 | US |
| SB3217201 | 2011-02-54 | 2 | IT |
| 3110-01-084-2535 | 2010-06-161 | 120 | DIBBS |
| 3110-01-084-2535 | 2010-04-120 | 120 | DIBBS |
| 3110-01-084-2535 | 2010-02-56 | 208 | DIBBS |
| 3110-01-084-2535 | 2010-01-12 | 284 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-084-2535
Related Products | NSN 3110-01-084-2535
Technical Data | NSN 3110-01-084-2535
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 566 NORMAL ANGLE |
| OUTSIDE DIAMETER | 3.1875 INCHES MINIMUM AND 3.1885 INCHES MAXIMUM |
| OVERALL WIDTH | 0.5625 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.0600 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
| SPECIAL FEATURES | STABILIZED FOR OPERATION FROM M65 DEG F TO P250 DEG F |
| TEST DATA DOCUMENT | 78286-SB3217-201 DRAWING |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | SB3217-201 |
Restrictions/Controls & Freight Information | NSN 3110-01-084-2535
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-084-2535
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
