NSN 3110-01-079-8617 AG50278, 0AH48234, 35008971
Product Details | NEEDLE ROLLER BEARING
3110-01-079-8617 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: AG50278, 0AH48234, 35008971, 3500897-1, 356498, 3589571, 358957-1, 3110-01-079-8617, 01-079-8617, 3110010798617, 010798617
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 16 JUL 1979 | 01-079-8617 | 00051 ( BEARING, ROLLER, NEEDLE ) |

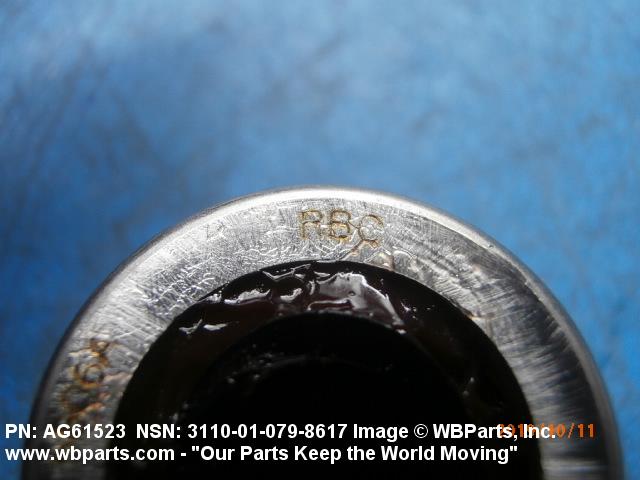

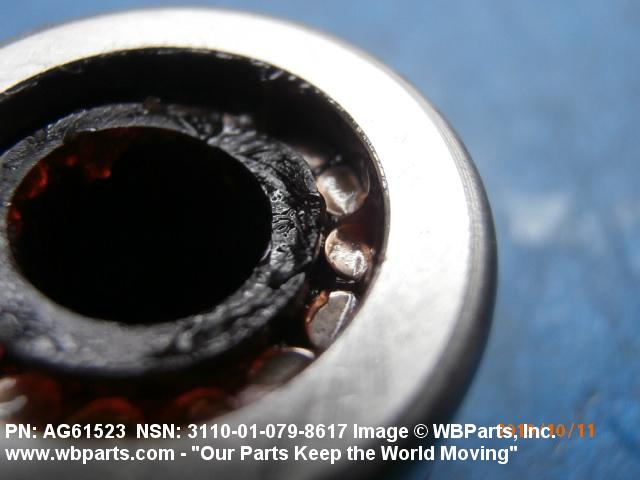

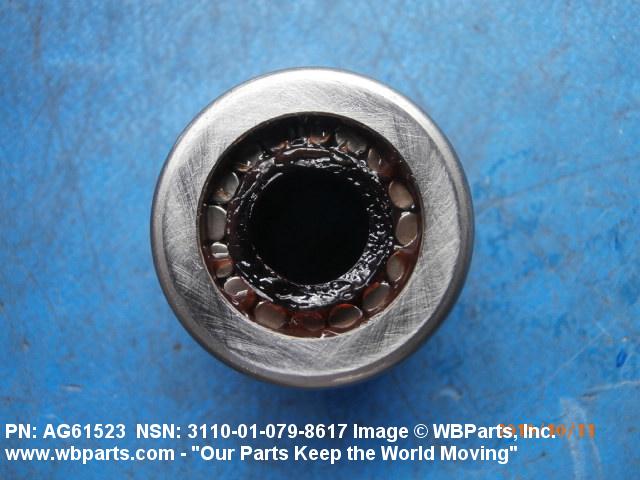

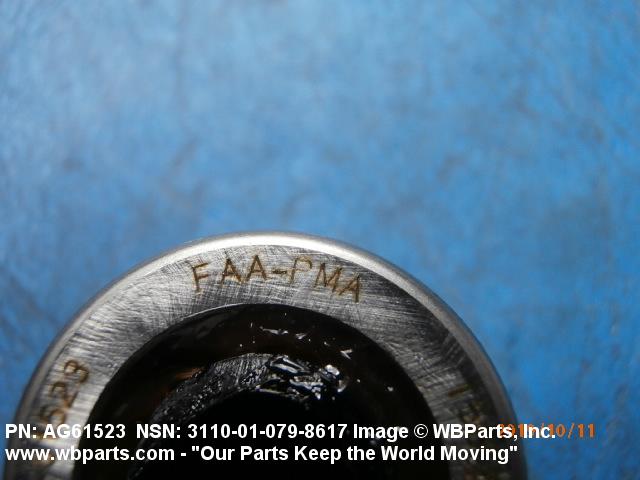

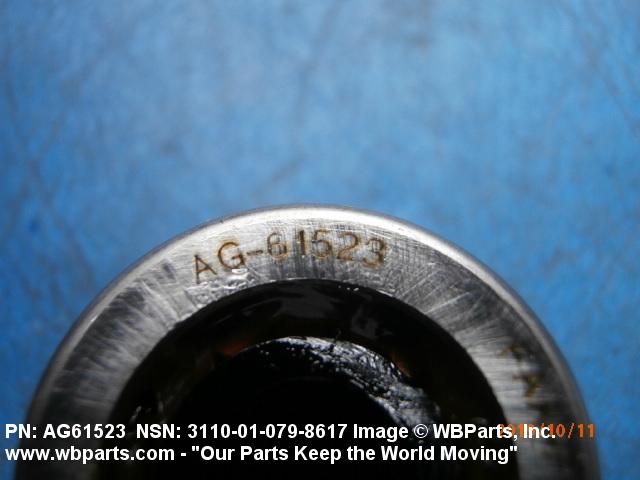

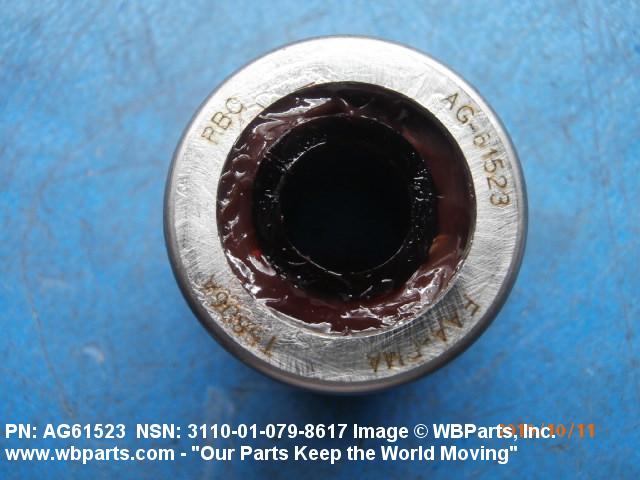

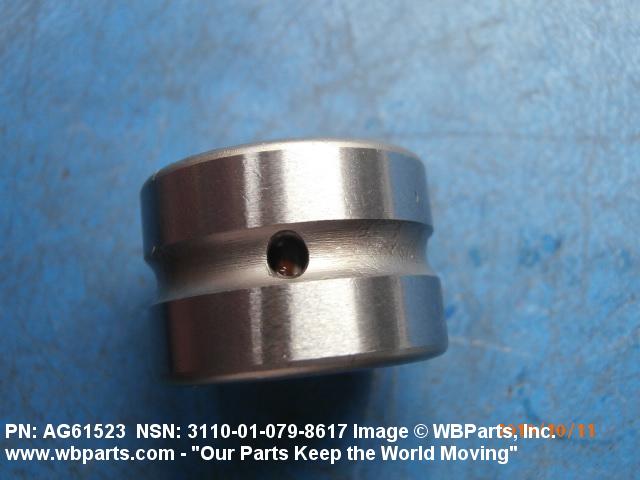

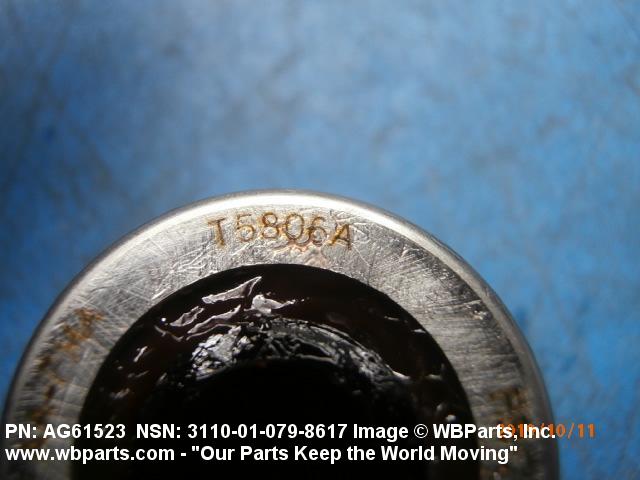

Drawings & Photos | NSN 3110-01-079-8617
Demand History | NSN 3110-01-079-8617
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3500897-1 | 2024-10-303 | 53 | DIBBS |
| 3500897-1 | 2024-10-295 | 53 | DIBBS |
| 3110-01-079-8617 | 2024-04-96 | 36 | US |
| 35008971 | 2023-11-331 | 36 | United States |
| 3110-01-079-8617 | 2022-04-95 | 30 | TR |
| 3110-01-079-8617 | 2021-11-307 | 10 | TR |
| 3110-01-079-8617 | 2019-09-253 | 3 | Taiwan |
| 3589571 | 2011-06-181 | 100 | Hong Kong |
| 3110-01-079-8617 | 2011-03-73 | 2 | CN |
| 3110-01-079-8617 | 2011-03-73 | 120 | CN |
| 3110-01-079-8617 | 2011-03-65 | 150 | AM |
| 3110-01-079-8617 | 2011-02-55 | 150 | China |
Cross Reference | NSN 3110-01-079-8617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0AH48234 | 72216 | UNITED TECHNOLOGIES AUTOMOTIVE INC COMPONENTS DIV |
| 3500897-1 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3500897-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 356498 | 19919 | MINNESOTA MINING AND MFG CO |
| 358957-1 | 19919 | MINNESOTA MINING AND MFG CO |
| AG50278 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-079-8617
Related Products | NSN 3110-01-079-8617
Technical Data | NSN 3110-01-079-8617
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 434 SEPARABLE ROLLERS, NO INNER RACE, HARDENED AND GROUND |
| OVERALL WIDTH | 0.5930 INCHES NOMINAL |
| BORE DIAMETER | 0.4373 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8747 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICATING OIL |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| FEATURES PROVIDED | ALIGNING RING |
| III END ITEM IDENTIFICATION | A1OA ACFT |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 3500897-1 |
Restrictions/Controls & Freight Information | NSN 3110-01-079-8617
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-079-8617
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
