NSN 3110-01-075-1577 1111382, 111138-2, 01-075-1577
Product Details | INNER BEARING RING
3110-01-075-1577 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Part Alternates: 1111382, 111138-2, 3110-01-075-1577, 01-075-1577, 3110010751577, 010751577
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 14 APR 1979 | 01-075-1577 | 00028 ( RING, BEARING, INNER ) |
Drawings & Photos | NSN 3110-01-075-1577
Demand History | NSN 3110-01-075-1577
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-075-1577 | 2007-06-167 | 1 | DIBBS |
Cross Reference | NSN 3110-01-075-1577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111138-2 | 19564 | CRSI INC DELAWARE DIV GENERAL DYNAMICS SATCOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-075-1577
Related Products | NSN 3110-01-075-1577
Technical Data | NSN 3110-01-075-1577
| Characteristic | Specifications |
|---|---|

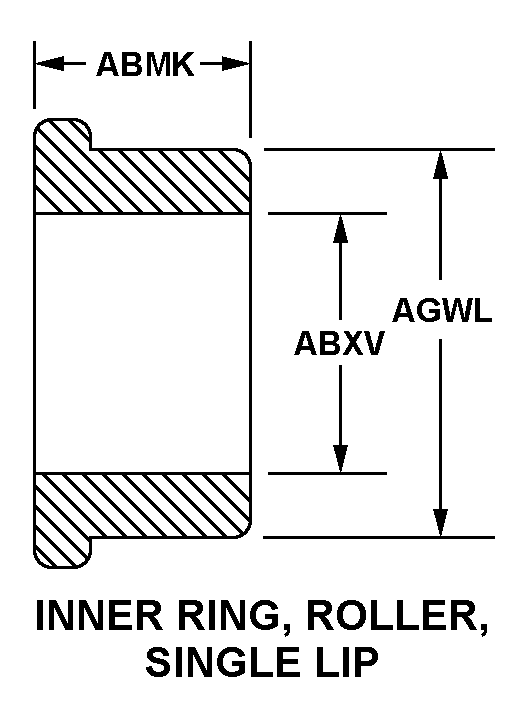

| STYLE DESIGNATOR | 496 INNER RING, ROLLER, SINGLE LIP |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 12.50 MILLIMETERS NOMINAL |
| SMALLEST OUTSIDE DIAMETER | 14.00 MILLIMETERS NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| III END ITEM IDENTIFICATION | ANTENNA 19546,MRT-2 |
| MANUFACTURERS CODE | 19564 |
| DESIGN CONTROL REFERENCE | 111138-2 |
Restrictions/Controls & Freight Information | NSN 3110-01-075-1577
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-075-1577
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | IY | TG:"GROUND RADIO COMMUNICATIONS, GROUND COMMUNICATIONS PROJECTS, COMPASS LINK DEFENSE SATELLITE COMMUNICATIONS SYSTEM (DSCS) 439L, COMMUNICATION SYSTEM. 469L, CONVERSION OF RANGE TELEMETRY SYSTEM (CORTS) 484L, MOBILE SECURE VOICE SYSTEM, 484N, PACIFIC AREA COMMUNICATION SYSTEM 486L, EUROPEAN WIDEBAND RADIO RELAY SYSTEM, 487L, SURVIVAL LOW FREQUENCY SYSTEM, 487M, VLF/LF SPECIAL PURPOSE COMMUNICATIONS SYSTEM, 488L, GREEN PINE SYSTEM, 489L, FOX-THULE TROPO SYSTEM, 490L DCS AUTOVON (OVERSEAS) SYSTEM, 439L, SECURE V " |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
