NSN 3110-01-042-2423 PB26462, PB264621, PB26462-1
Product Details | PIVOT BALL BEARING
3110-01-042-2423 A bearing specifically designed internally to carry the combination radial and axial thrust produced at the end of a tapered or cylindrical flanged shaft in motion. See also BEARING, BALL, THRUST.
Part Alternates: PB26462, PB264621, PB26462-1, C270, 3110-01-042-2423, 01-042-2423, 3110010422423, 010422423
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 07 JUN 1977 | 01-042-2423 | 18032 ( BEARING, BALL, PIVOT ) |
Drawings & Photos | NSN 3110-01-042-2423
Cross Reference | NSN 3110-01-042-2423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C270 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| C270 | 59750 | RMB MINIATURE BEARINGS INC |
| PB26462 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| PB26462 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| PB26462-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| PB26462-1 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-042-2423
Related Products | NSN 3110-01-042-2423
Technical Data | NSN 3110-01-042-2423
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

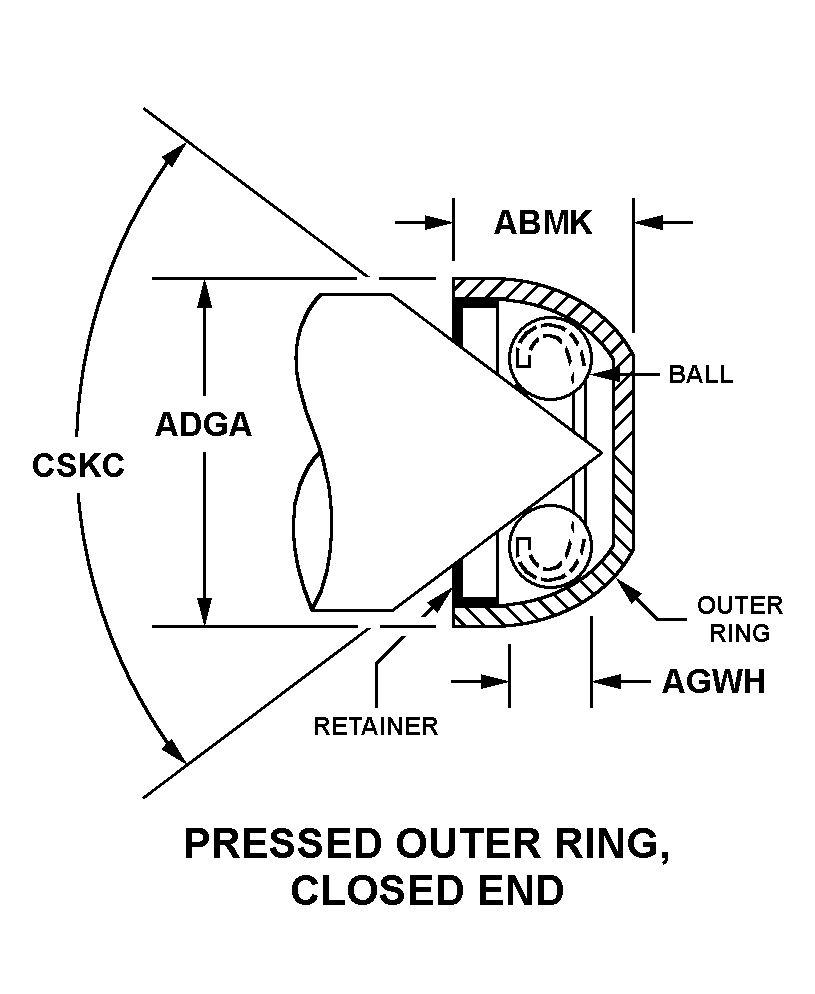

| STYLE DESIGNATOR | 136 PRESSED OUTER RING, CLOSED END |
| TAPER ANGLE | 60.00 DEGREES NOMINAL |
| OVERALL WIDTH | 0.0591 INCHES MINIMUM AND 0.0641 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.1064 INCHES MINIMUM AND 0.1074 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.0394 INCHES NOMINAL |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | ANGULAR |
| BEARING BALL QUANTITY | 3 |
| MANUFACTURERS CODE | 55972 |
| MFR SOURCE CONTROLLING REFERENCE | PB26462 |
Restrictions/Controls & Freight Information | NSN 3110-01-042-2423
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-042-2423
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
