NSN 3110-01-021-4199 4004C67510, 4004C6-7-5-10, 01-021-4199

Product Details | BEARING ROLLER

3110-01-021-4199 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.

Part Alternates: 4004C67510, 4004C6-7-5-10, 3110-01-021-4199, 01-021-4199, 3110010214199, 010214199

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	17 MAY 1976	01-021-4199	00037 ( ROLLER, BEARING )

Drawings & Photos | NSN 3110-01-021-4199

Part Number	Request Date	QTY	Origin
4004C6-7-5-10	2024-10-305	124	DIBBS
4004C6-7-5-10	2024-08-241	55	DIBBS
4004C6-7-5-10	2024-03-74	18	DIBBS
4004C6-7-5-10	2023-08-220	69	DIBBS
4004C6-7-5-10	2023-07-211	69	DIBBS
4004C6-7-5-10	2023-03-69	21	DIBBS
4004C6-7-5-10	2023-03-61	21	DIBBS
4004C6-7-5-10	2022-05-144	29	DIBBS
4004C6-7-5-10	2022-05-125	29	DIBBS
4004C6-7-5-10	2021-08-220	130	DIBBS
4004C6-7-5-10	2019-02-34	79	DIBBS
3110-01-021-4199	2018-07-182	103	DIBBS
3110-01-021-4199	2018-04-91	199	DIBBS
3110-01-021-4199	2017-05-137	70	DIBBS
3110-01-021-4199	2017-05-129	70	DIBBS

Cross Reference | NSN 3110-01-021-4199

Part Number	Cage Code	Manufacturer
4004C6-7-5-10	5XMS1	KOYO BEARINGS USA LLC DIV HEADQUARTERS
4004C6-7-5-10	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
4004C6-7-5-10	78118	MPB CORPORATION DBA TIMKEN AEROSPACE
4004C6-7-5-10	99167	HAMILTON SUNDSTRAND CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-01-021-4199

Compare

Related Products | NSN 3110-01-021-4199

3110-01-021-4218, 3110-01-021-4219, 3110-01-021-5049, 3110-01-021-5060, 3110-01-021-5075

Technical Data | NSN 3110-01-021-4199

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD SINGLE MATERIAL RESPONSE OVERALL

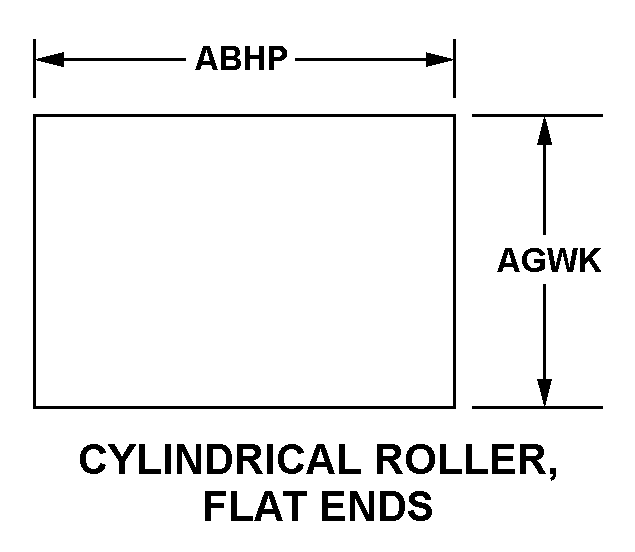

STYLE DESIGNATOR	522 CYLINDRICAL ROLLER, FLAT ENDS
OVERALL LENGTH	7.5 MILLIMETERS NOMINAL
ROLLING ELEMENT DIAMETER	6.0 MILLIMETERS NOMINAL
MANUFACTURERS CODE	78118
DESIGN CONTROL REFERENCE	4004C6-7-5-10

Restrictions/Controls & Freight Information | NSN 3110-01-021-4199

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114690	BALLS/ROLLS BEARING
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	742	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-01-021-4199

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 SE : Set

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 SE : Set
