NSN 3110-01-014-5559 HK18162RS, HK1816-2RS, 01-014-5559
Product Details | NEEDLE ROLLER BEARING
3110-01-014-5559 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: HK18162RS, HK1816-2RS, 3110-01-014-5559, 01-014-5559, 3110010145559, 010145559
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 25 DEC 1975 | 01-014-5559 | 00051 ( BEARING, ROLLER, NEEDLE ) |

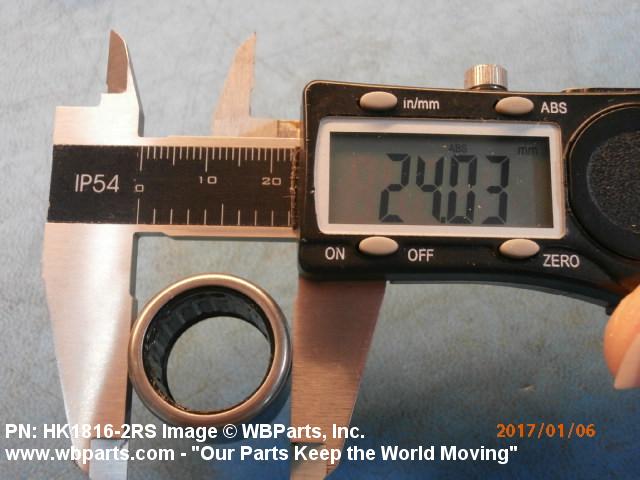

Drawings & Photos | NSN 3110-01-014-5559
Demand History | NSN 3110-01-014-5559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HK18162RS | 2023-03-73 | 14 | South Africa |
| HK18162RS | 2020-10-289 | 3 | South Africa |
| HK18162RS | 2016-12-342 | 10 | South Africa |
| HK18162RS | 2016-11-335 | 13 | South Africa |
| 3110-01-014-5559 | 2009-10-295 | 4 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-014-5559
Technical Data | NSN 3110-01-014-5559
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL RETAINER STEEL ROLLER RUBBER SYNTHETIC SEAL STEEL SHELL |
| STYLE DESIGNATOR | 414 NON-SEPARABLE, WITH ROLLER RETAINER, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 16.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 18.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 24.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 16.000 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
| III END ITEM IDENTIFICATION | COMBINATION ROTOGRAVURE LINE INTAGLIO PRESS A AND B |
Restrictions/Controls & Freight Information | NSN 3110-01-014-5559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | 12 | Bureau of Engraving and Printing Washington, DC 20228 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-014-5559
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
