NSN 3110-01-003-1296 167C1229, 01-003-1296, 010031296
Product Details | BEARING RETAINING PLATE
3110-01-003-1296 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 167C1229, 3110-01-003-1296, 01-003-1296, 3110010031296, 010031296
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 12 APR 1975 | 01-003-1296 | 22293 ( PLATE, RETAINING, BEARING ) |
Drawings & Photos | NSN 3110-01-003-1296
Demand History | NSN 3110-01-003-1296
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-003-1296 | 2017-05-129 | 3 | DIBBS |
| 3110-01-003-1296 | 2013-09-258 | 48 | DIBBS |
| 3110-01-003-1296 | 2008-02-43 | 17 | DIBBS |
Cross Reference | NSN 3110-01-003-1296
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 167C1229 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-01-003-1296
Related Products | NSN 3110-01-003-1296
Technical Data | NSN 3110-01-003-1296
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| STYLE DESIGNATOR | B1 ROUND |
| OUTSIDE DIAMETER | 3.070 INCHES MINIMUM AND 3.110 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | C14A COUNTERBORED WITH APERTURE |
| MINOR THICKNESS | 1.120 INCHES NOMINAL |
| APERTURE DIAMETER | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| COUNTERBORE DIAMETER | 1.440 INCHES MINIMUM AND 1.480 INCHES MAXIMUM |
| COUNTERBORE DEPTH | 0.040 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.160 INCHES MINIMUM AND 1.200 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.285 INCHES MINIMUM AND 0.301 INCHES MAXIMUM |

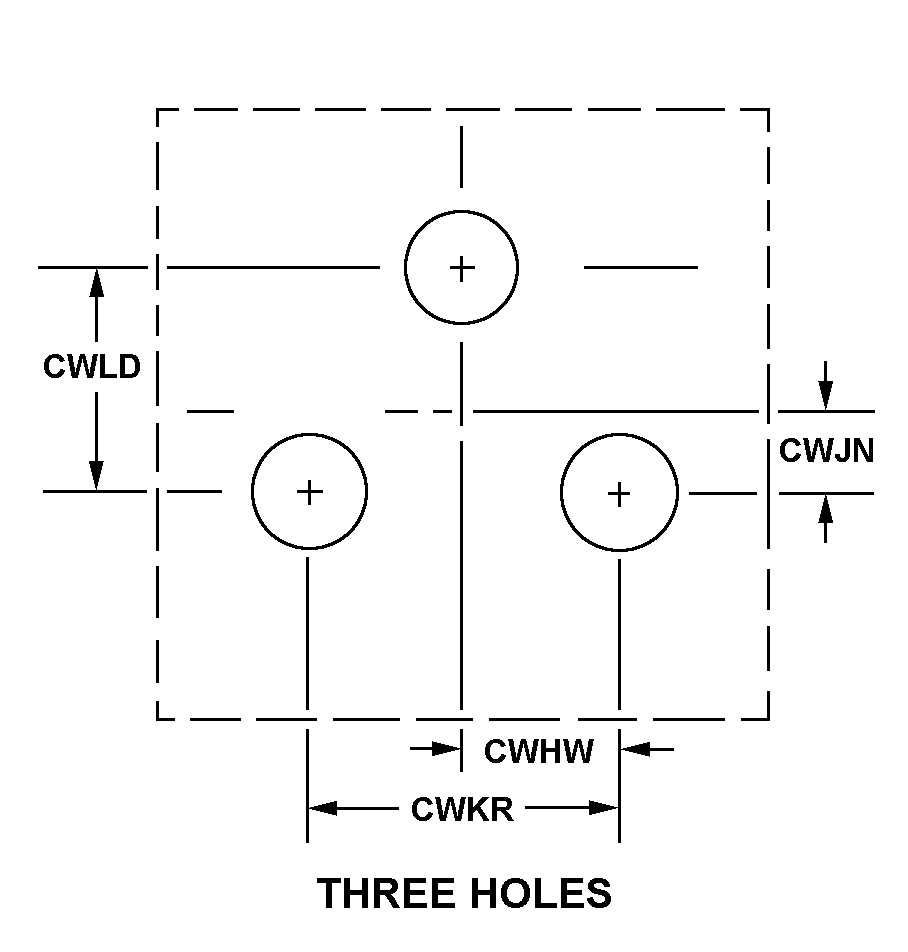

| MOUNTING HOLE ARRANGEMENT STYLE | D10 THREE HOLES |
| DISTANCE FROM VERTICAL CENTERLINE TO CENTER OF RIGHT HOLE | 1.009 INCHES NOMINAL |
| DISTANCE FROM HORIZONTAL CENTERLINE TO CENTER OF RIGHT HOLE | 0.583 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG BASE | 2.018 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS ALONG HEIGHT | 1.748 INCHES NOMINAL |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM |
| SPECIAL FEATURES | RETAINER O.D. HAS TWO SQUARE LUGSLOCATED 0.850 IN. NOM FROM FACE OF FLANGE W/DIA OF 1.750 IN. NOM TO PROVIDE A LOCKING DEVICE |
| III FSC APPLICATION DATA | GEARBOX ACCESSORY |
| MANUFACTURERS CODE | 05606 |
| DESIGN CONTROL REFERENCE | 167C1229 |
Restrictions/Controls & Freight Information | NSN 3110-01-003-1296
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-01-003-1296
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | GG | TG:GUNNERY EQUIPMENT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
