NSN 3110-00-938-2837 MRB22ZZT3, FS1737, 76068
Product Details | ANNULAR BALL BEARING
3110-00-938-2837 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: MRB22ZZT3, FS1737, 76068, 760681, 76068-1, 760684, 76068-4, 77038AFS3363E499YH, 3110-00-938-2837, 00-938-2837, 3110009382837, 009382837
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 MAR 1967 | 00-938-2837 | 00014 ( BEARING, BALL, ANNULAR ) |

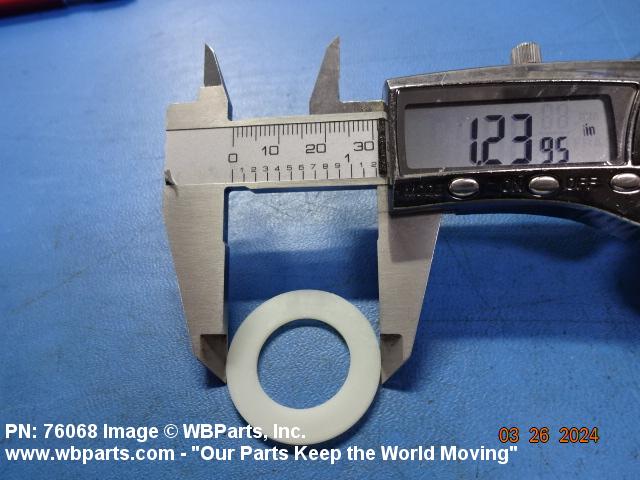

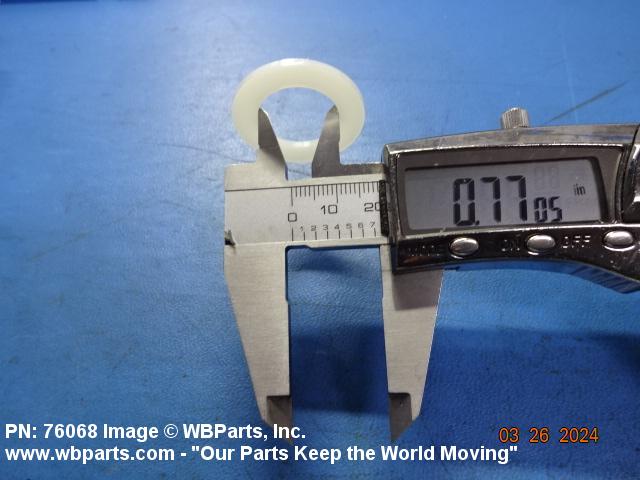

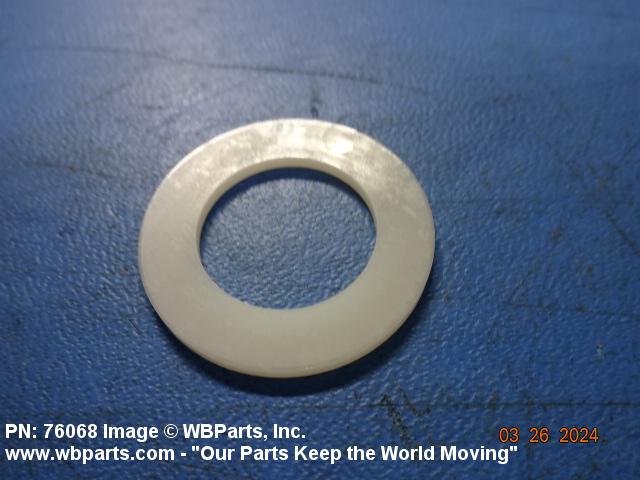

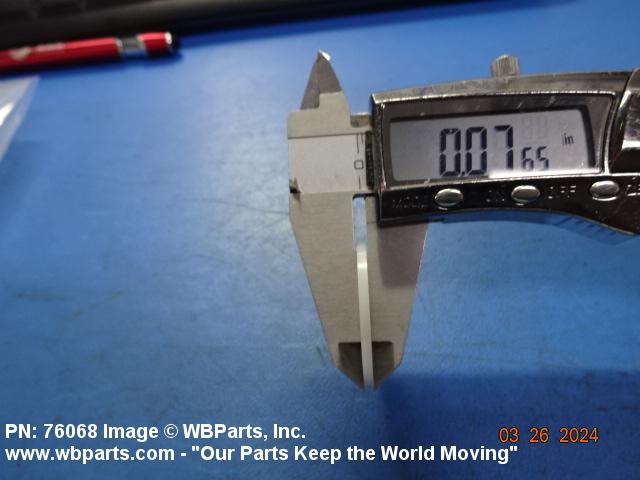

Drawings & Photos | NSN 3110-00-938-2837
Demand History | NSN 3110-00-938-2837
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 76068 | 2024-03-80 | 200 | United States |
| MRB22ZZT3 | 2011-07-186 | 24 | UK |
Cross Reference | NSN 3110-00-938-2837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 76068 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 76068-1 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 76068-4 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 77038AFS3363E499YH | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| FS1737 | 21760 | SCHATZ BEARING CORPORATION |
| MRB22ZZT3 | 36069 | FAG AEROSPACE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-938-2837
Related Products | NSN 3110-00-938-2837
Technical Data | NSN 3110-00-938-2837
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 7.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 8.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 22.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| SHIELD QUANTITY | 2 |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0003 INCHES MINIMUM RADIAL AND 0.0006 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | INTERNAL CLEARANCE MEASURED UNDER A 1 LB LOAD |
| MANUFACTURERS CODE | 99193 |
| MFR SOURCE CONTROLLING REFERENCE | 76068 |
Restrictions/Controls & Freight Information | NSN 3110-00-938-2837
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-938-2837
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
