NSN 3110-00-926-4537 JH10100H, JH1010OH, JH-1010-OH
Product Details | NEEDLE ROLLER BEARING
3110-00-926-4537 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: JH10100H, JH1010OH, JH-1010-OH, JH1010-OH, JH1010X0H, 116C31495, 116C3149-5, 3110-00-926-4537, 00-926-4537, 3110009264537, 009264537
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 24 JUN 1966 | 00-926-4537 | 00051 ( BEARING, ROLLER, NEEDLE ) |

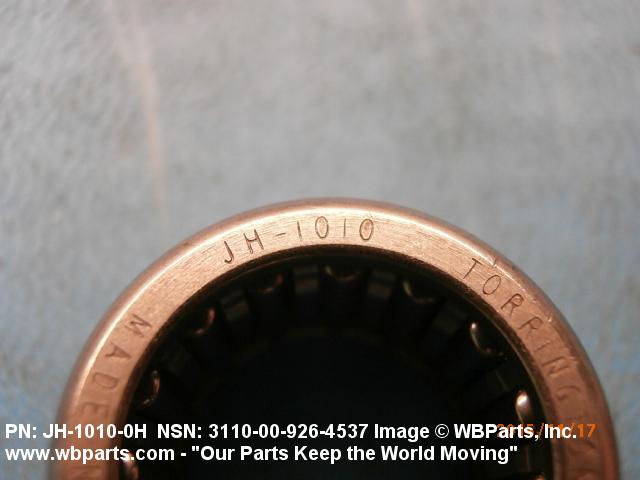

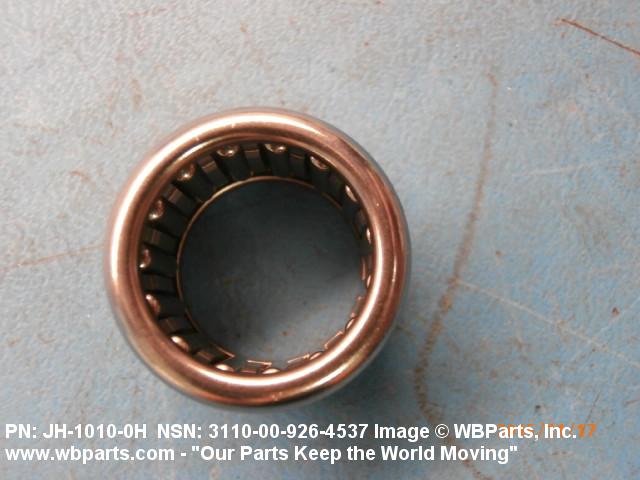

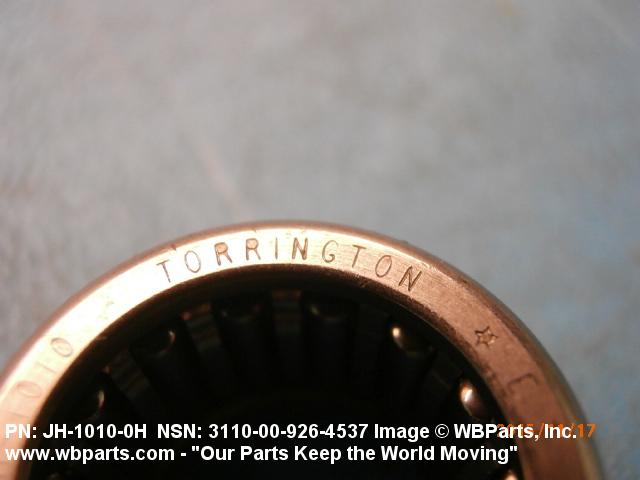

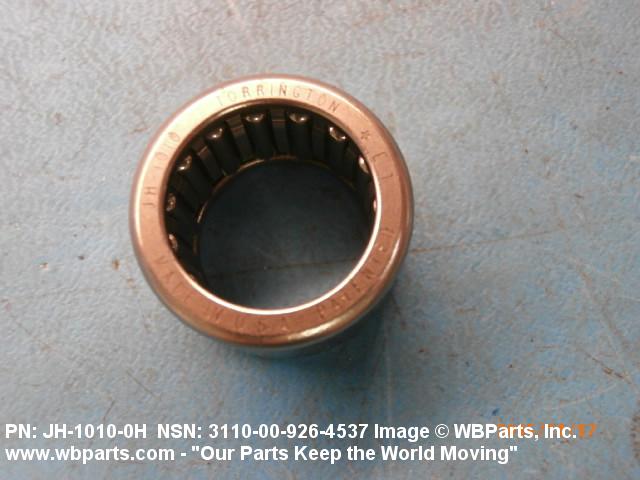

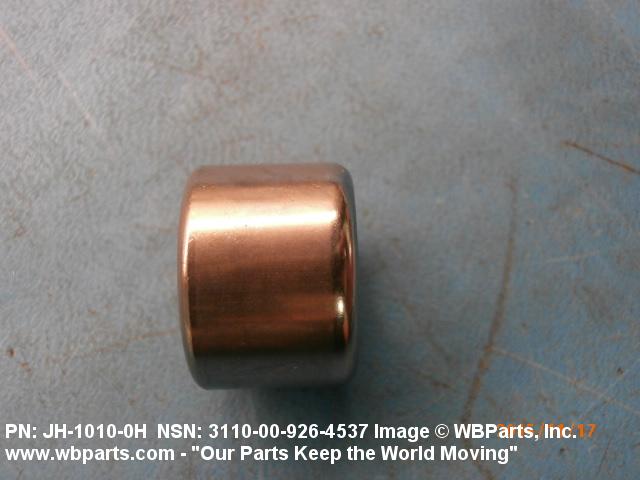

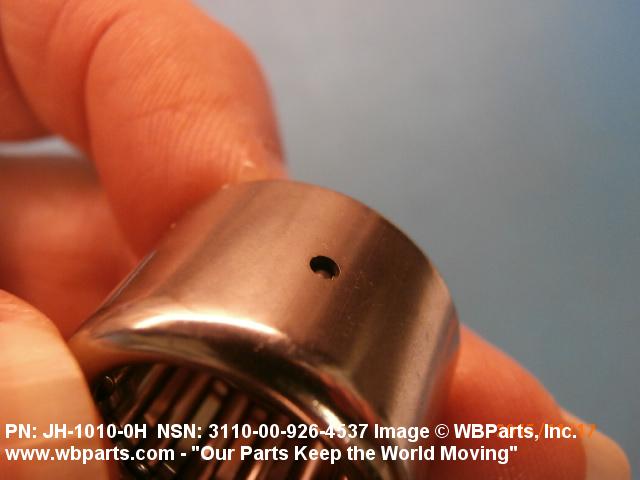

Drawings & Photos | NSN 3110-00-926-4537
Demand History | NSN 3110-00-926-4537
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-926-4537 | 2020-06-180 | 1 | SA |
| 3110-00-926-4537 | 2018-12-352 | 1 | United States |
| 3110-00-926-4537 | 2015-11-315 | 4 | United States |
| 3110-00-926-4537 | 2015-10-275 | 4 | United States |
| 3110-00-926-4537 | 2015-03-79 | 4 | United States |
| 3110-00-926-4537 | 2010-10-286 | 2 | US |
| 3110-00-926-4537 | 2009-07-205 | 10 | US |
Cross Reference | NSN 3110-00-926-4537
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 116C3149-5 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
| JH-1010-OH | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| JH1010-OH | 80380 | ALLEN FILTER CO |
| JH1010-OH | K0018 | TIMKEN EUROPE A BRANCH OF THE TIMKEN COMPANY |
| JH10100H | 60399 | REGAL-BELOIT CORPORATION DBA FASCO GROUP DIV CASSVILLE |
| JH1010X0H | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-926-4537
Related Products | NSN 3110-00-926-4537
Technical Data | NSN 3110-00-926-4537
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 410 NON-SEPARABLE, OPEN END, DRAWN SHELL |

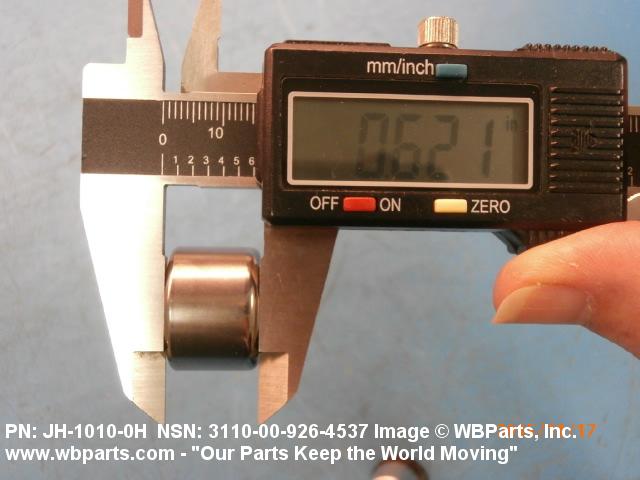

| OVERALL WIDTH | 0.6250 INCHES NOMINAL |

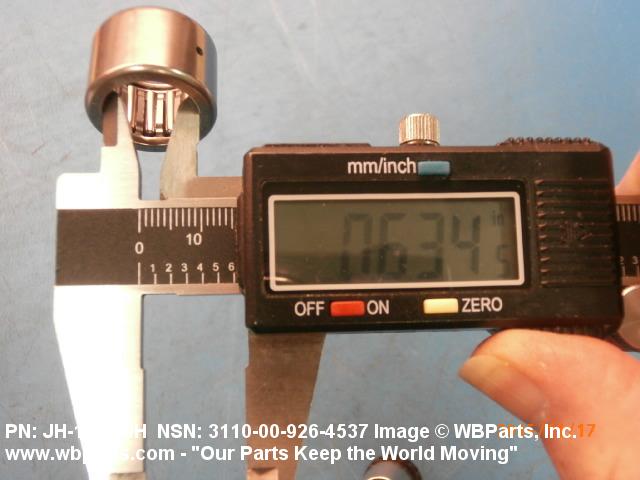

| BORE DIAMETER | 0.6250 INCHES NOMINAL |

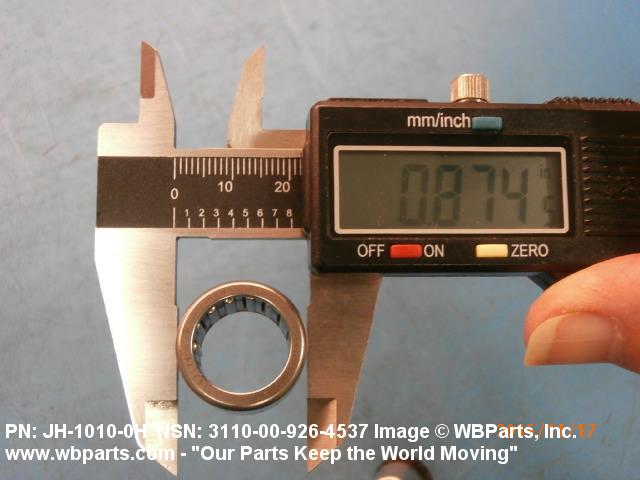

| OVERALL OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE IN OUTER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-926-4537
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-926-4537
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
