NSN 3110-00-923-4715 GR16SS, 00-923-4715, 009234715
Product Details | NEEDLE ROLLER BEARING
3110-00-923-4715 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: GR16SS, 3110-00-923-4715, 00-923-4715, 3110009234715, 009234715
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 JAN 1966 | 00-923-4715 | 00051 ( BEARING, ROLLER, NEEDLE ) |
Drawings & Photos | NSN 3110-00-923-4715
Demand History | NSN 3110-00-923-4715
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GR16SS | 2019-09-270 | 23 | DIBBS |
| GR16SS | 2019-09-262 | 23 | DIBBS |
Cross Reference | NSN 3110-00-923-4715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GR16SS | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-923-4715
Related Products | NSN 3110-00-923-4715
Technical Data | NSN 3110-00-923-4715
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OUTER RING STEEL ROLLER RUBBER SYNTHETIC SEAL |

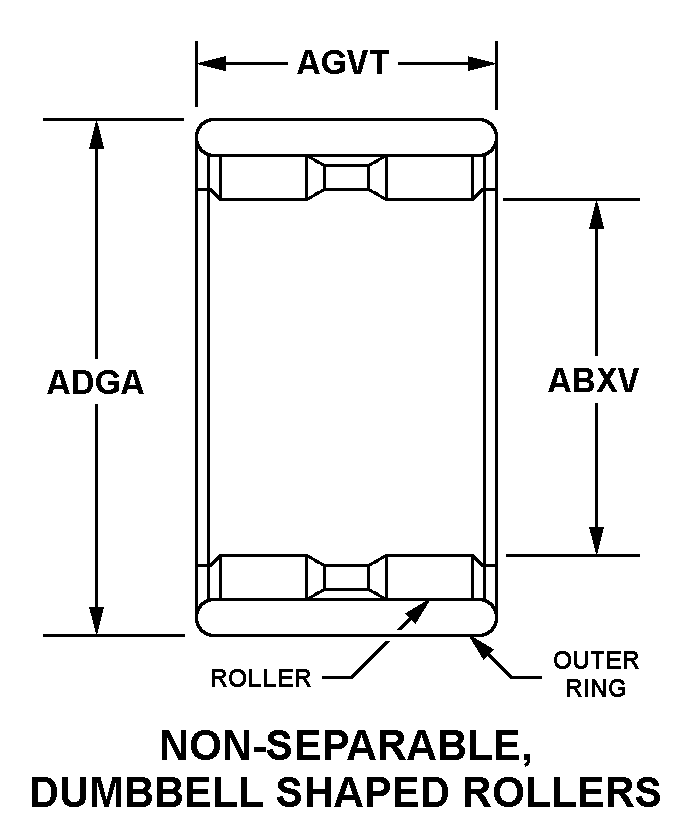

| STYLE DESIGNATOR | 452 NON-SEPARABLE, DUMBBELL SHAPED ROLLERS |
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| OUTER RING WIDTH | 1.0000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | LIPS TURNED INWARDLY |
| ALIGNMENT TYPE | RIGID |
| FEATURES PROVIDED | LUBRICATION HOLE AND LUBRICATION GROOVE |
Restrictions/Controls & Freight Information | NSN 3110-00-923-4715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-923-4715
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
