NSN 3110-00-919-5411 8756608, 00-919-5411, 009195411
Product Details | BEARING BALL RETAINER
3110-00-919-5411 A frame or inclosure which spaces and retains the rolling elements of a BEARING, BALL (as modified).
Part Alternates: 8756608, 3110-00-919-5411, 00-919-5411, 3110009195411, 009195411
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 03 AUG 1966 | 00-919-5411 | 00032 ( RETAINER, BALL, BEARING ) |
Drawings & Photos | NSN 3110-00-919-5411
Demand History | NSN 3110-00-919-5411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-919-5411 | 2015-08-240 | 1 | DIBBS-RFPs |
| 3110-00-919-5411 | 2013-12-343 | 55 | DIBBS |
| 3110-00-919-5411 | 2011-05-146 | 42 | DIBBS |
| 3110-00-919-5411 | 2011-05-140 | 6 | DIBBS |
| 3110-00-919-5411 | 2007-11-306 | 10 | DIBBS |
| 3110-00-919-5411 | 2007-08-242 | 9 | DIBBS |
Cross Reference | NSN 3110-00-919-5411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8756608 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-919-5411
Related Products | NSN 3110-00-919-5411
Technical Data | NSN 3110-00-919-5411
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5083 OR ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/4,H111 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/6,H112 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-250/11,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 3,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

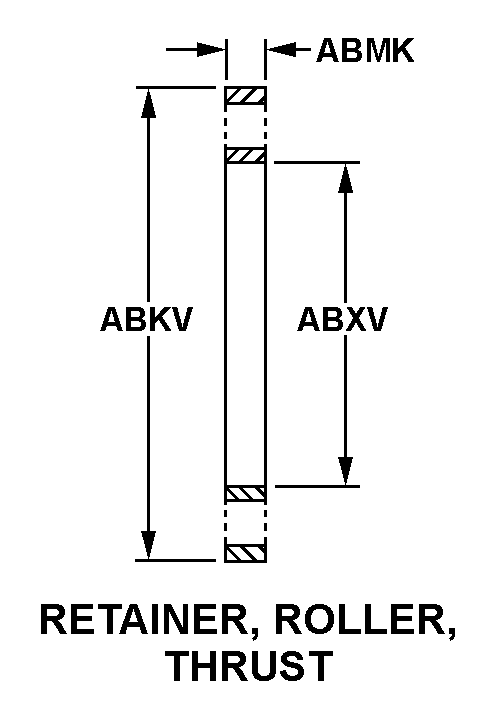

| STYLE DESIGNATOR | 610 RETAINER, ROLLER, THRUST |
| OUTSIDE DIAMETER | 7.9063 INCHES MINIMUM AND 8.0313 INCHES MAXIMUM |
| OVERALL WIDTH | 0.3750 INCHES NOMINAL |
| BORE DIAMETER | 5.2188 INCHES MINIMUM AND 5.3438 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 3110-00-919-5411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-919-5411
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
