NSN 3110-00-917-8978 A1851T, 00-917-8978, 009178978
Product Details | THRUST BALL BEARING
3110-00-917-8978 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: A1851T, 3110-00-917-8978, 00-917-8978, 3110009178978, 009178978
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 27 JUL 1966 | 00-917-8978 | 00019 ( BEARING, BALL, THRUST ) |
Drawings & Photos | NSN 3110-00-917-8978
Demand History | NSN 3110-00-917-8978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| A1851T | 2018-03-78 | 18 | US |
| 3110-00-917-8978 | 2018-01-30 | 10 | United States |
| A1851T | 2016-03-75 | 20 | |
| A1851T | 2014-05-150 | 19 | US |
| A1851T | 2013-02-46 | 41 | |
| A1851T | 2012-11-318 | 46 | |
| A1851T | 2012-07-207 | 18 | |
| 3110-00-917-8978 | 2011-01-07 | 3 | US |
| A1851T | 2010-11-322 | 23 | |
| 3110-00-917-8978 | 2009-03-71 | 150 | US |
| 3110-00-917-8978 | 2007-09-267 | 1 | KE |
| A1851T | 2007-08-232 | 1 | ZA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-917-8978
Related Products | NSN 3110-00-917-8978
Technical Data | NSN 3110-00-917-8978
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED-STD-66 FED STD SINGLE MATERIAL RESPONSE OVERALL |

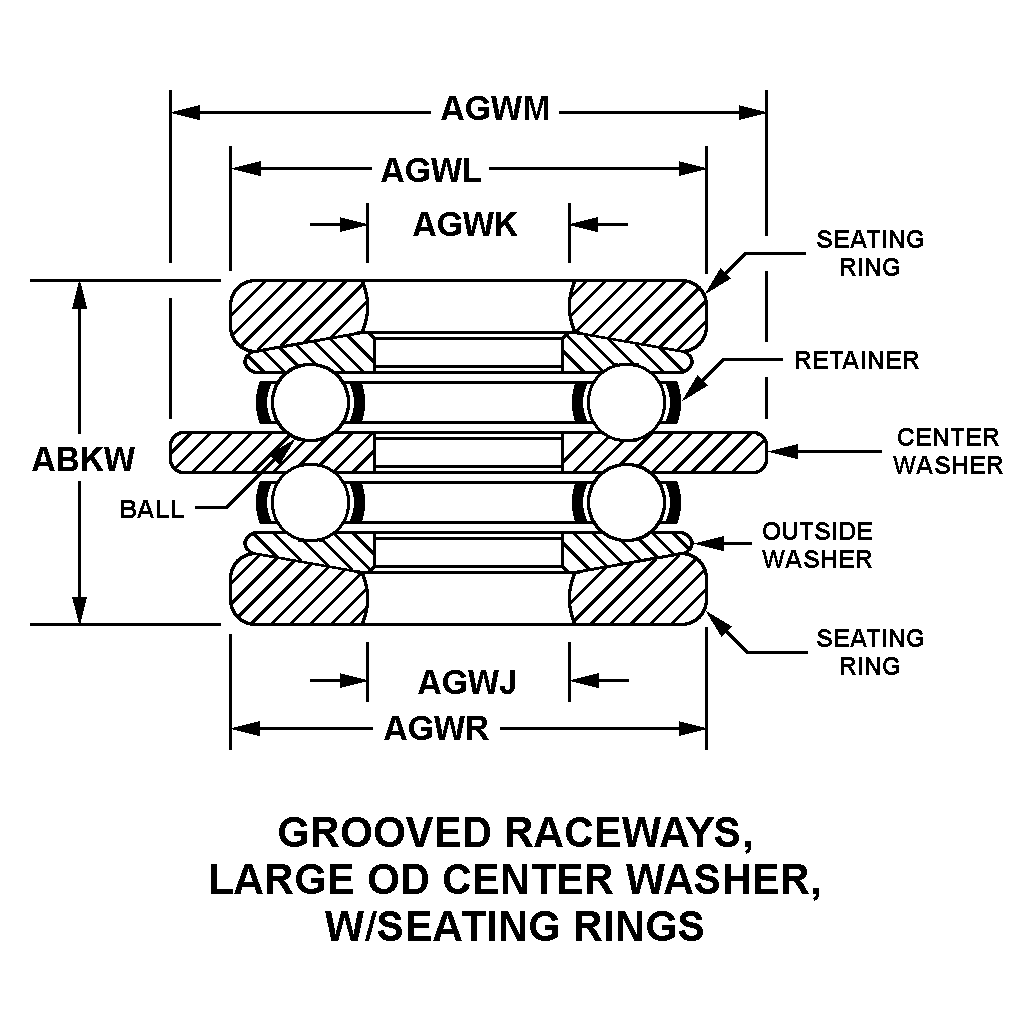

| STYLE DESIGNATOR | 178 GROOVED RACEWAYS, LARGE OD CENTER WASHER, W/SEATING RINGS |
| OVERALL HEIGHT | 1.0570 INCHES MINIMUM AND 1.0670 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 2.7950 INCHES MINIMUM AND 2.8050 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | 2.8700 INCHES MINIMUM AND 2.8800 INCHES MAXIMUM |
| SMALLEST OUTSIDE DIAMETER | 3.9800 INCHES MINIMUM AND 3.9810 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 4.1860 INCHES MINIMUM AND 4.1870 INCHES MAXIMUM |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | ID AND OD FRACTURED ON CENTERLINE AND NOTCHED W/60 DEG ANGLE |
| MANUFACTURERS CODE | 24692 |
| DESIGN CONTROL REFERENCE | A1851T |
Restrictions/Controls & Freight Information | NSN 3110-00-917-8978
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
