NSN 3110-00-871-7637 297099, 00-871-7637, 008717637
Product Details | THRUST ROLLER BEARING
3110-00-871-7637 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Part Alternates: 297099, 3110-00-871-7637, 00-871-7637, 3110008717637, 008717637
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 NOV 1967 | 00-871-7637 | 00020 ( BEARING, ROLLER, THRUST ) |
Drawings & Photos | NSN 3110-00-871-7637
Cross Reference | NSN 3110-00-871-7637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 297099 | 62983 | EATON AEROSPACE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-871-7637
Related Products | NSN 3110-00-871-7637
Technical Data | NSN 3110-00-871-7637
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY RETAINER STEEL ROLLER STEEL SEATING RING STEEL WASHER |

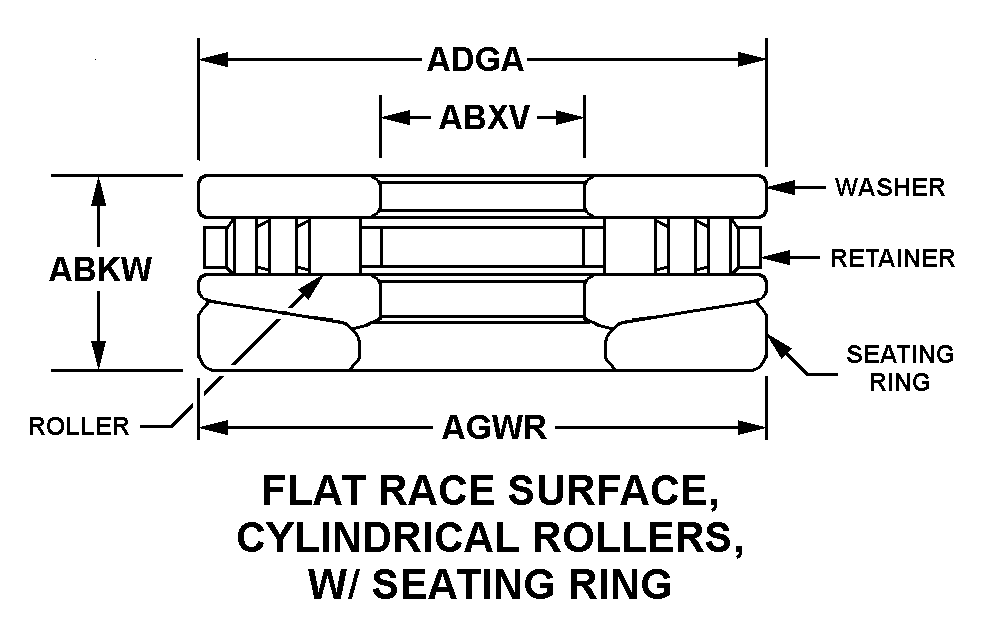

| STYLE DESIGNATOR | 336 FLAT RACE SURFACE, CYLINDRICAL ROLLERS, W/SEATING RING |
| OVERALL HEIGHT | 1.0510 INCHES MINIMUM AND 1.0640 INCHES MAXIMUM |
| BORE DIAMETER | 1.1811 INCHES MINIMUM AND 1.1814 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.8130 INCHES MINIMUM |
| SEATING RING OUTSIDE DIAMETER | ANY ACCEPTABLE |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | BANDED OD |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | 297099 |
Restrictions/Controls & Freight Information | NSN 3110-00-871-7637
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-871-7637
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
