NSN 3110-00-833-8532 479213-211, 00-833-8532, 479213211
Product Details | ANNULAR BALL BEARING
3110-00-833-8532 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 479213-211, 3110-00-833-8532, 00-833-8532, 3110008338532, 479213211, 008338532
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 SEP 1967 | 00-833-8532 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-833-8532
Cross Reference | NSN 3110-00-833-8532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 479213-211 | 52676 | SKF USA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-833-8532
Technical Data | NSN 3110-00-833-8532
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

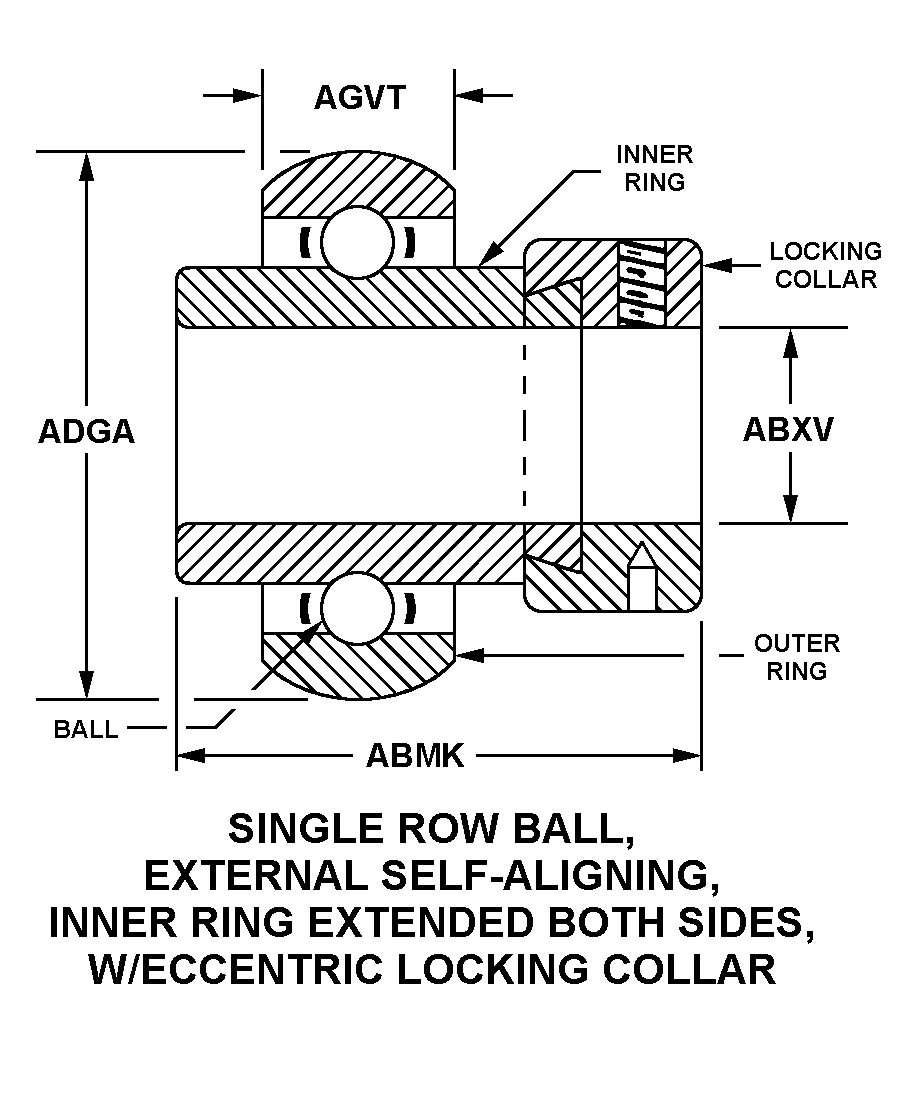

| STYLE DESIGNATOR | 104 SINGLE ROW BALL, EXTERNAL SELF-ALIGNING, INNER RING EXTENDED BOTH SIDES, WITH ECCENTRIC LOCKING COLLAR |
| OVERALL WIDTH | 2.6865 INCHES MINIMUM AND 2.6875 INCHES MAXIMUM |
| BORE DIAMETER | 2.6865 INCHES MINIMUM AND 2.6875 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.7234 INCHES MINIMUM AND 4.7244 INCHES MAXIMUM |
| OUTER RING WIDTH | 27.00 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | DOD-G-24508 MIL SPEC SINGLE MATERIAL RESPONSE |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | LUBRICATION HOE IN OUTER RING ALND 3/8-24 BY 5/8 IN LG SETSCREWS ON LOCKING COLLAR 120 DEG APART |
Restrictions/Controls & Freight Information | NSN 3110-00-833-8532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-833-8532
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
