NSN 3110-00-825-0883 TE012, 23624, 25887
Product Details | ANNULAR BALL BEARING
3110-00-825-0883 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: TE012, 23624, 25887, 3110-00-825-0883, 00-825-0883, 3110008250883, 008250883
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 AUG 1967 | 00-825-0883 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-825-0883
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-825-0883
Technical Data | NSN 3110-00-825-0883
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

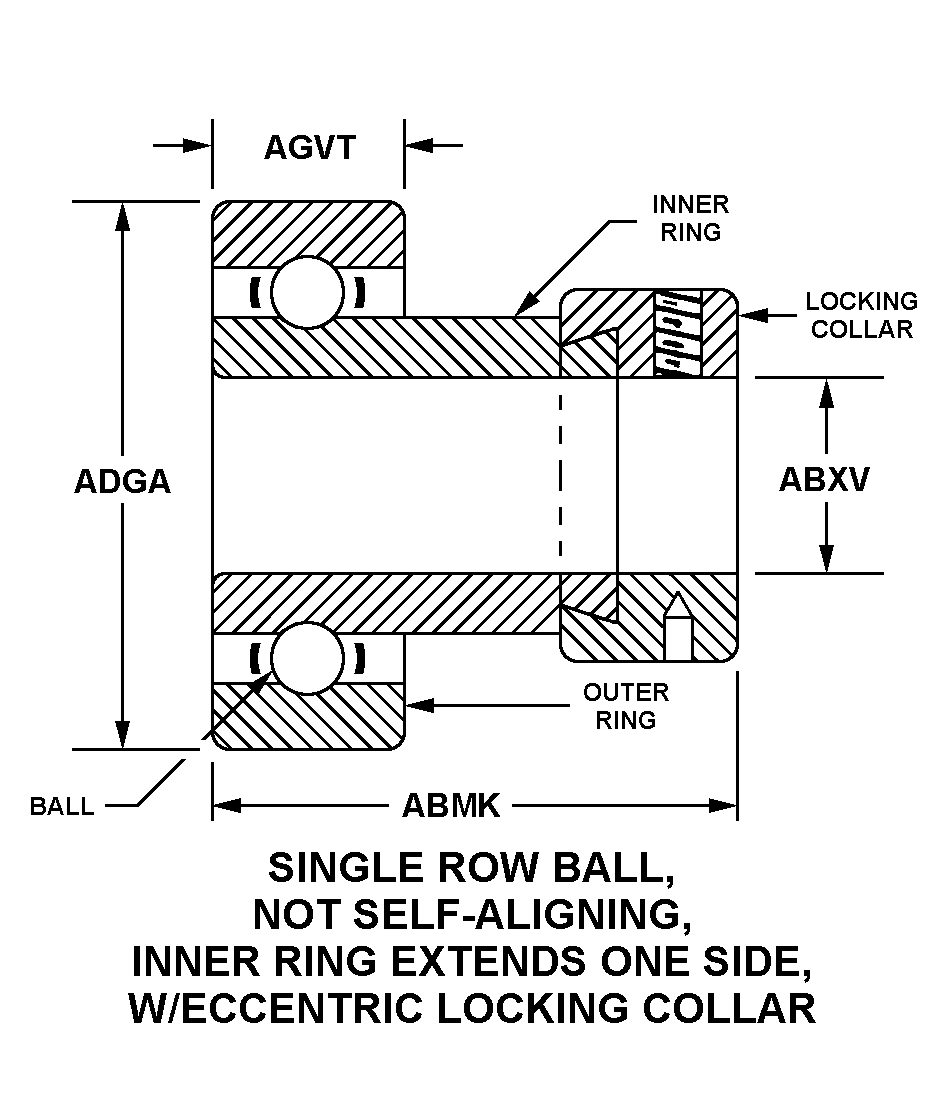

| STYLE DESIGNATOR | 120 SINGLE ROW BALL, NOT SELF-ALIGNING, INNER RING EXTENDS ONE SIDE, WITH ECCENTRIC LOCKING COLLAR |
| OVERALL WIDTH | 1.1250 INCHES NOMINAL |
| BORE DIAMETER | 0.7812 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.8594 INCHES NOMINAL |
| OUTER RING WIDTH | 0.5938 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-00-825-0883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-825-0883
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
