NSN 3110-00-806-0035 7268947, 00-806-0035, 008060035
Product Details | NEEDLE ROLLER BEARING
3110-00-806-0035 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: 7268947, 3110-00-806-0035, 00-806-0035, 3110008060035, 008060035
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 15 APR 1968 | 00-806-0035 | 00051 ( BEARING, ROLLER, NEEDLE ) |

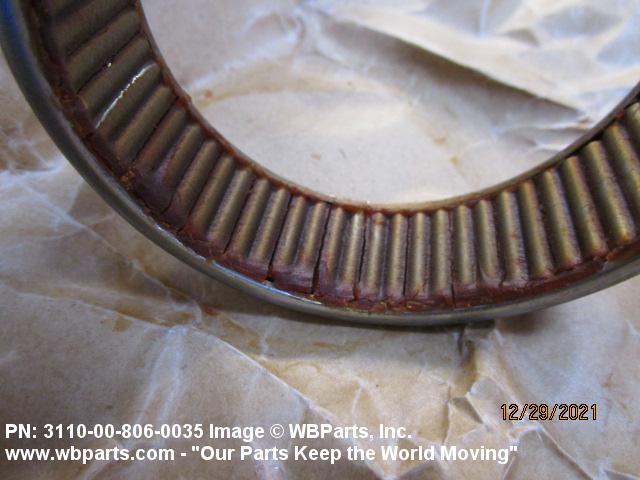

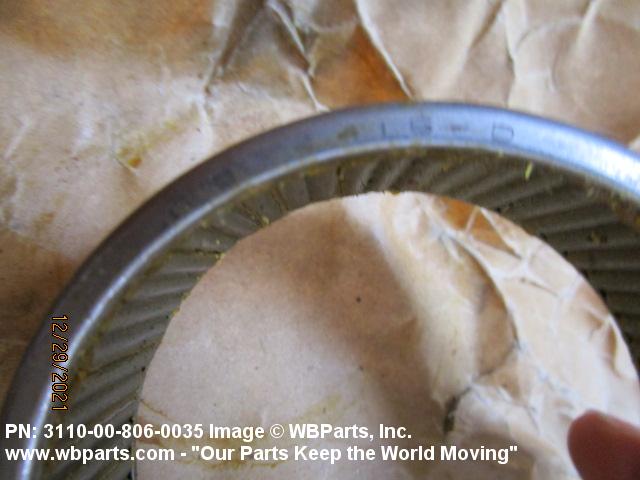

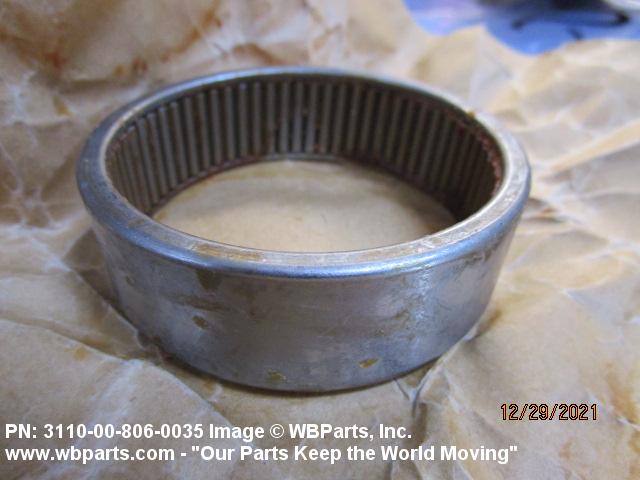

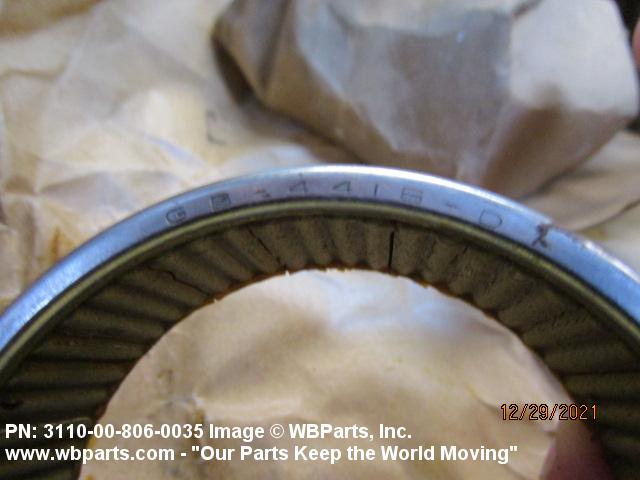

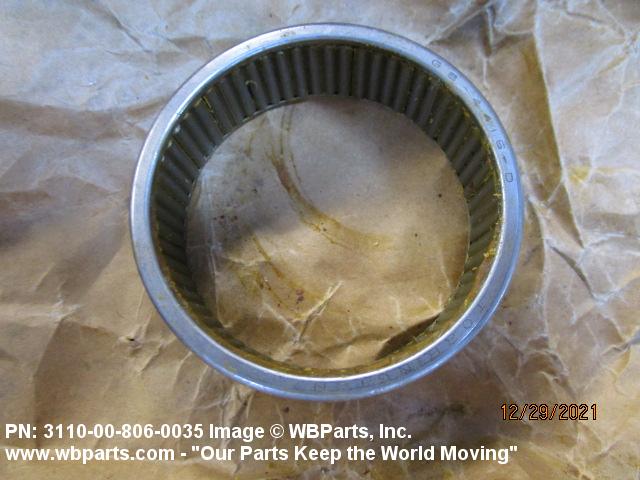

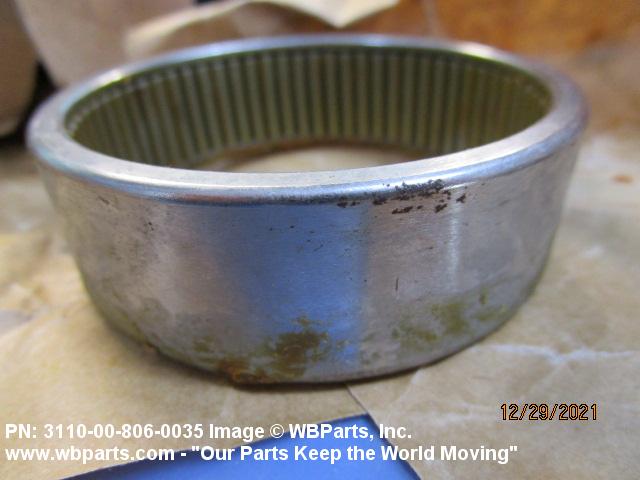

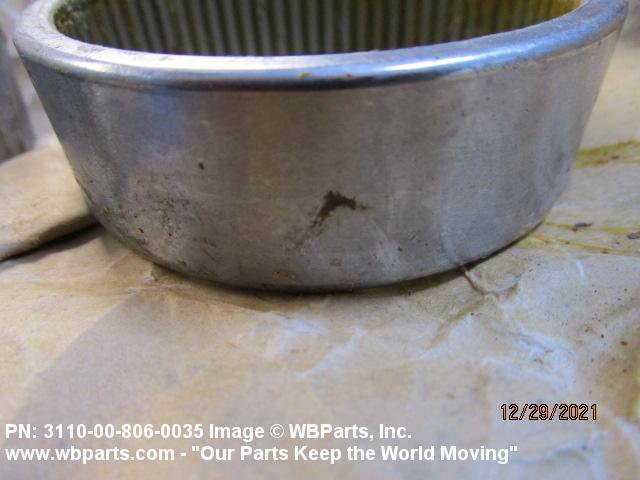

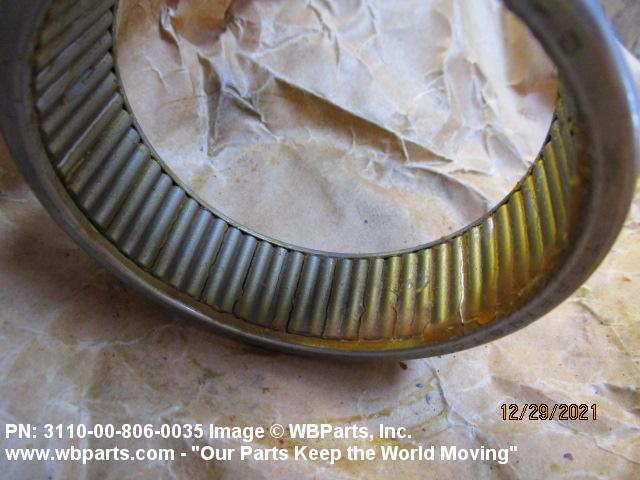

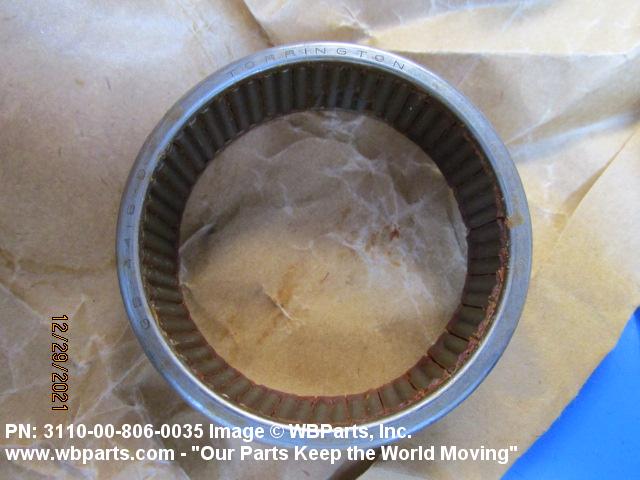

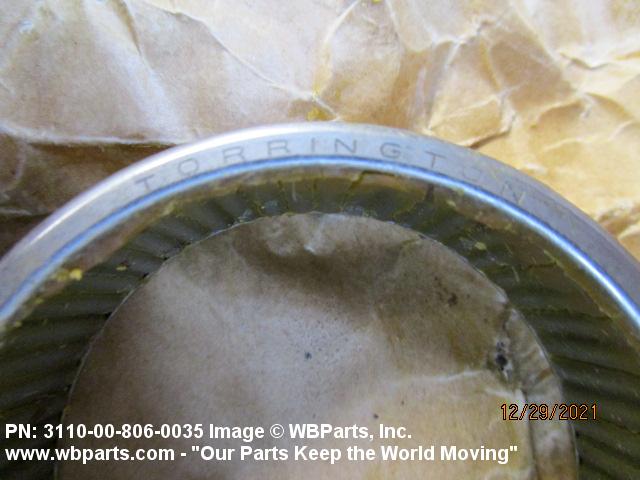

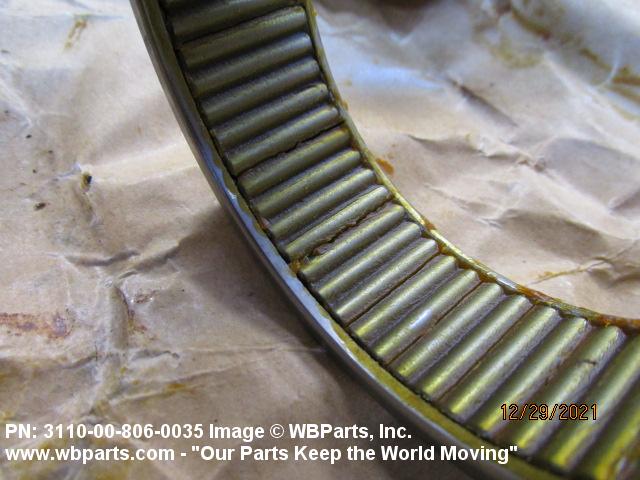

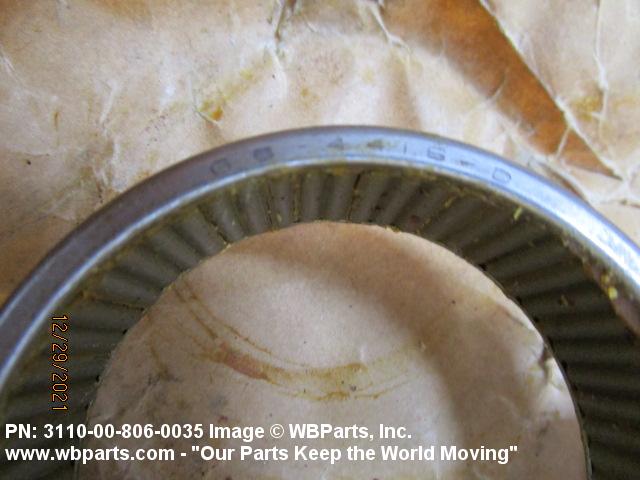

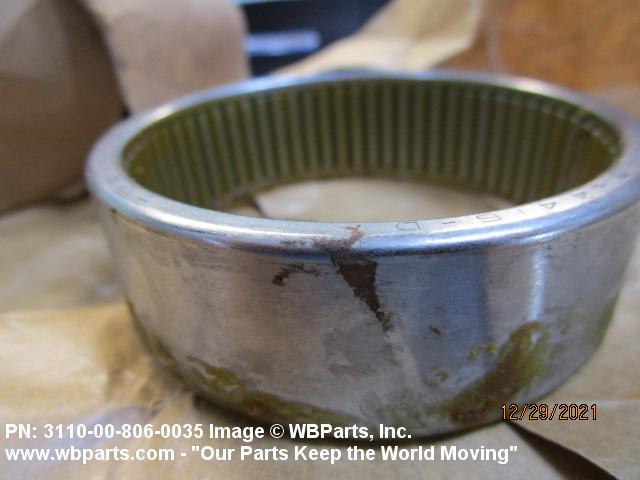

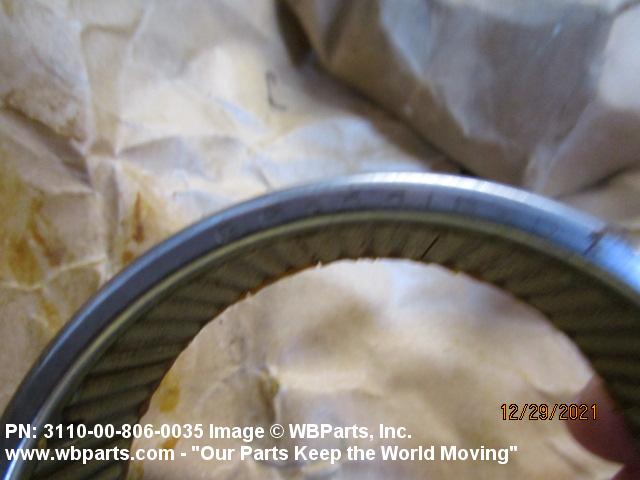

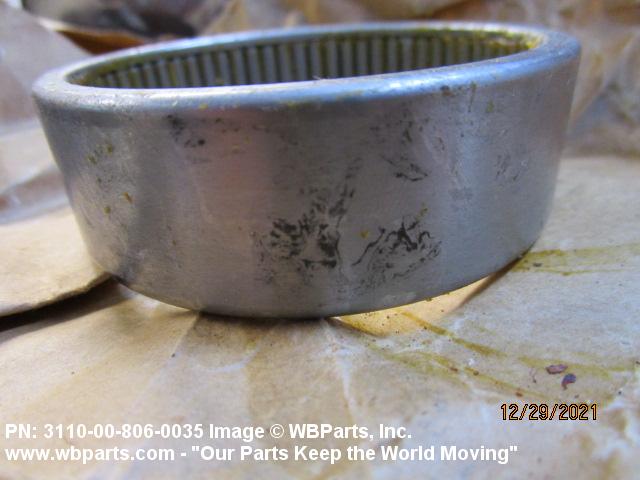

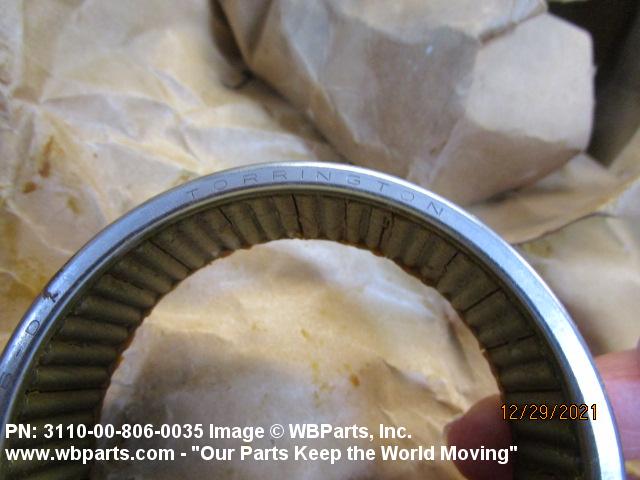

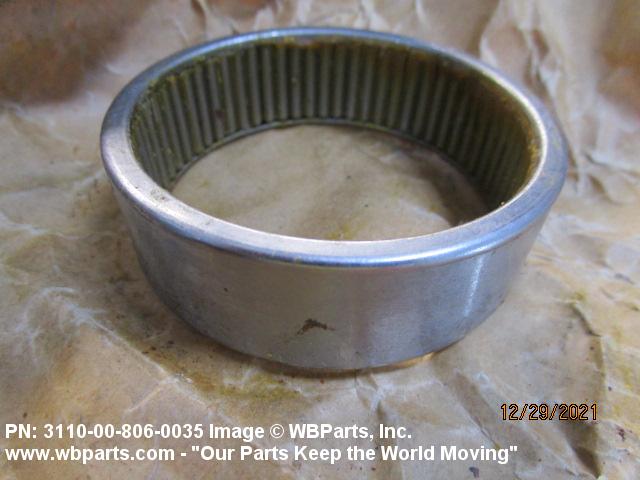

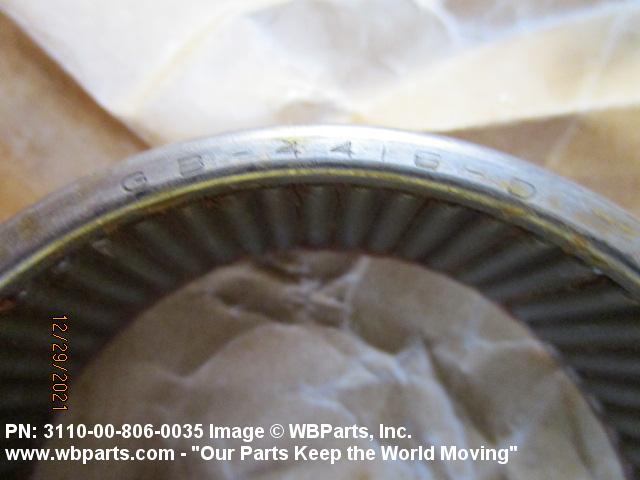

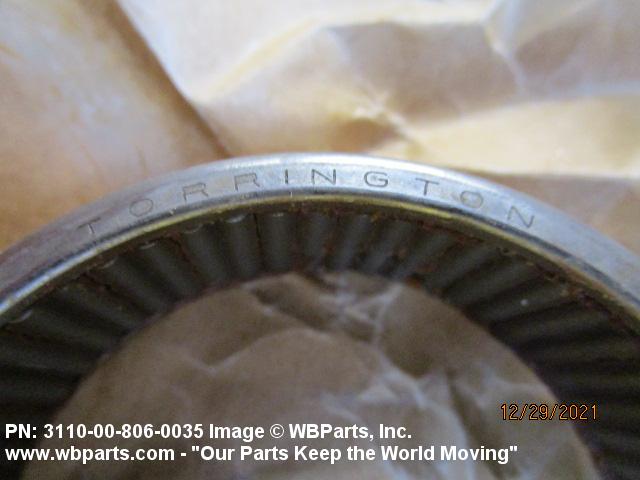

Drawings & Photos | NSN 3110-00-806-0035
Demand History | NSN 3110-00-806-0035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-806-0035 | 2021-12-354 | 1 | Greece |
| 3110-00-806-0035 | 2021-10-298 | 5 | Greece |
| 3110-00-806-0035 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-00-806-0035 | 2020-10-292 | 58 | DIBBS |
| 3110-00-806-0035 | 2020-07-203 | 1 | DIBBS-RFPs |
| 3110-00-806-0035 | 2019-06-168 | 190 | DIBBS |
| 3110-00-806-0035 | 2019-06-168 | 174 | DIBBS |
| 3110-00-806-0035 | 2018-02-53 | 1 | DIBBS-RFPs |
| 7268947 | 2015-07-182 | 10 | UK |
| 3110-00-806-0035 | 2013-05-139 | 120 | DIBBS |
| 3110-00-806-0035 | 2013-02-39 | 112 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-806-0035
Technical Data | NSN 3110-00-806-0035
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CUP STEEL SEAL |
| STYLE DESIGNATOR | 418 SEPARABLE ROLLERS, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 1.0000 INCHES NOMINAL |
| BORE DIAMETER | 2.7500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.1250 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 3 |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7268947 |
Restrictions/Controls & Freight Information | NSN 3110-00-806-0035
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | FF | |
| Type of Cargo | Z | No special type of cargo code applicable |
