NSN 3110-00-722-1011 1204000123, 12-04000123, 12-040-00-123
Product Details | PIVOT BALL BEARING
3110-00-722-1011 A bearing specifically designed internally to carry the combination radial and axial thrust produced at the end of a tapered or cylindrical flanged shaft in motion. See also BEARING, BALL, THRUST.
Part Alternates: 1204000123, 12-04000123, 12-040-00-123, 8176230, SS6A, 3110-00-722-1011, 00-722-1011, 3110007221011, 007221011
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-722-1011 | 18032 ( BEARING, BALL, PIVOT ) |
Drawings & Photos | NSN 3110-00-722-1011
Cross Reference | NSN 3110-00-722-1011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12-040-00-123 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 12-04000123 | 78022 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 8176230 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| SS6A | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-722-1011
Technical Data | NSN 3110-00-722-1011
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |

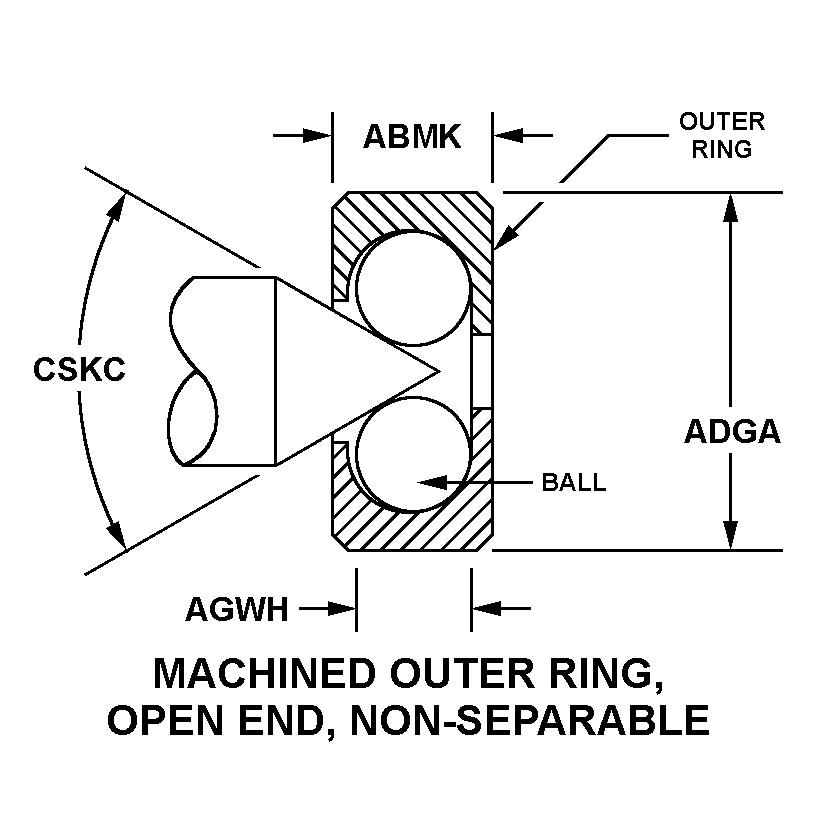

| STYLE DESIGNATOR | 132 MACHINED OUTER RING, OPEN END, NON-SEPARABLE |
| TAPER ANGLE | 60.00 DEGREES NOMINAL |
| OVERALL WIDTH | 0.1406 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.3750 INCHES NOMINAL |
| ROLLING ELEMENT DIAMETER | 0.0937 INCHES NOMINAL |
| LOAD DIRECTION | ANGULAR |
| BEARING BALL QUANTITY | 6 |
Restrictions/Controls & Freight Information | NSN 3110-00-722-1011
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-722-1011
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
