NSN 3110-00-717-0722 MS5196227, MS51962-27, M132N
Product Details | INNER BEARING RING
3110-00-717-0722 The inner component of a ball or roller bearing which provides a contact surface for the rolling elements of an antifriction bearing.
Part Alternates: MS5196227, MS51962-27, M132N, M1-32N, MI32N, A1900, GX814, IR324024, IR8446C, RD47627, 47627, 8RR6C, 1R324024, 3110-00-717-0722, 00-717-0722, 3110007170722, 007170722
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-717-0722 | 00028 ( RING, BEARING, INNER ) |
Drawings & Photos | NSN 3110-00-717-0722
Demand History | NSN 3110-00-717-0722
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-717-0722 | 2013-05-144 | 18 | DIBBS |
| 3110-00-717-0722 | 2013-05-129 | 18 | DIBBS |
| 3110-00-717-0722 | 2013-04-113 | 2 | DIBBS |
| MI32N | 2010-01-18 | 8 | US |
Cross Reference | NSN 3110-00-717-0722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1R324024 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 47627 | 23926 | KOMATSU AMERICA INTL CO |
| 8RR6C | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| A1900 | 07484 | ACCURATE BUSHING COMPANY DBA SMITH BEARING |
| GX814 | 72328 | COTTA TRANSMISSION COMPANY, LLC |
| IR324024 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| IR8446C | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| M1-32N | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| MI32N | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| MS51962-27 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RD47627 | 23926 | KOMATSU AMERICA INTL CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-717-0722
Related Products | NSN 3110-00-717-0722
Technical Data | NSN 3110-00-717-0722
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340H OR STEEL COMP 4720 OR STEEL COMP 8620 OR STEEL COMP 8720 OR STEEL COMP 1018 OR STEEL COMP 1117 OR STEEL COMP E51100 OR STEEL COMP E52100 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OR SAE ASSN STD ALL MATERIAL RESPONSES OR AISI ASSN STD ALL MATERIAL RESPONSES OVERALL |

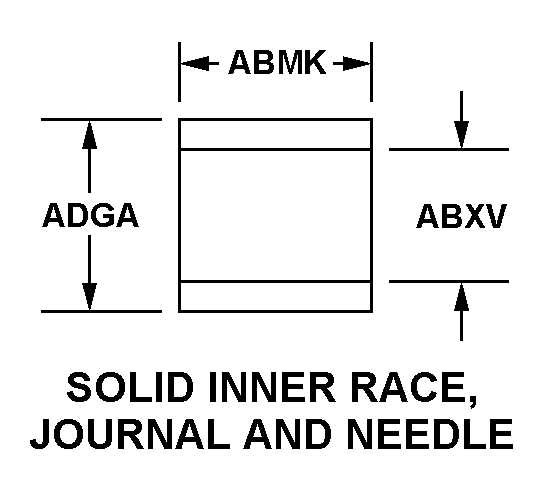

| STYLE DESIGNATOR | 484 SOLID INNER RACE, JOURNAL AND NEEDLE |
| OVERALL WIDTH | 1.5100 INCHES NOMINAL |
| BORE DIAMETER | 2.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.50000 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| SPECIAL FEATURES | ONE TO FOUR OIL HOLES; OIL GROOVE OPTIONAL IN ID |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51962-27 |
Restrictions/Controls & Freight Information | NSN 3110-00-717-0722
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
