NSN 3110-00-679-9631 8756478, 8756478S, 8756478-S
Product Details | BEARING RETAINING PLATE
3110-00-679-9631 A comparatively flat rigid item, with or without a centrally located aperture, designed to hold an annular bearing or a sleeve bearing in a fitted inclosure. It must have drilled and/or tapped holes for mounting purposes. Excludes END BELL, ELECTRICAL ROTATING EQUIPMENT.
Part Alternates: 8756478, 8756478S, 8756478-S, 3110-00-679-9631, 00-679-9631, 3110006799631, 006799631
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-679-9631 | 22293 ( PLATE, RETAINING, BEARING ) |

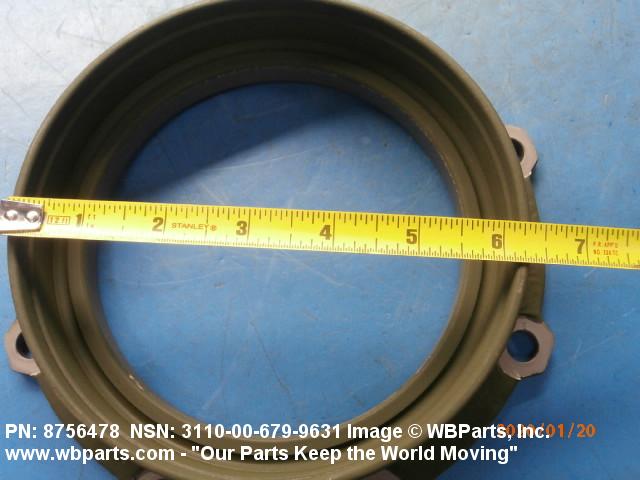

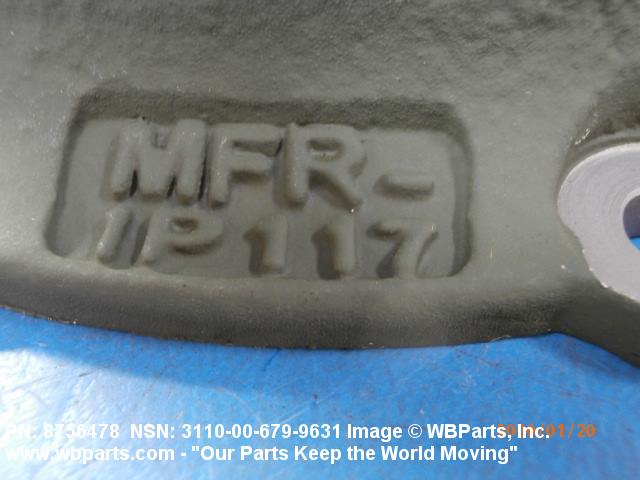

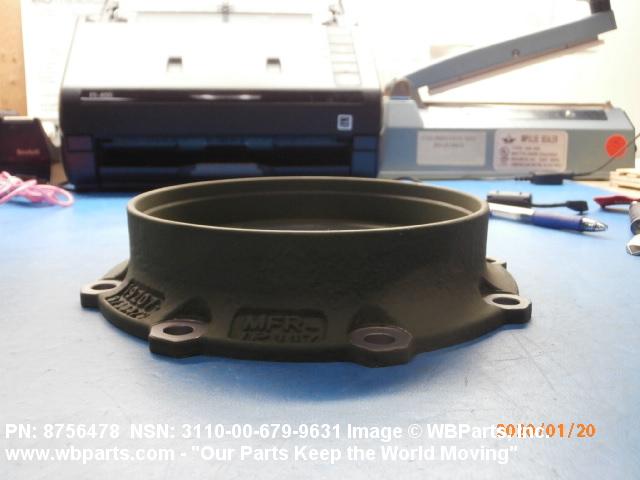

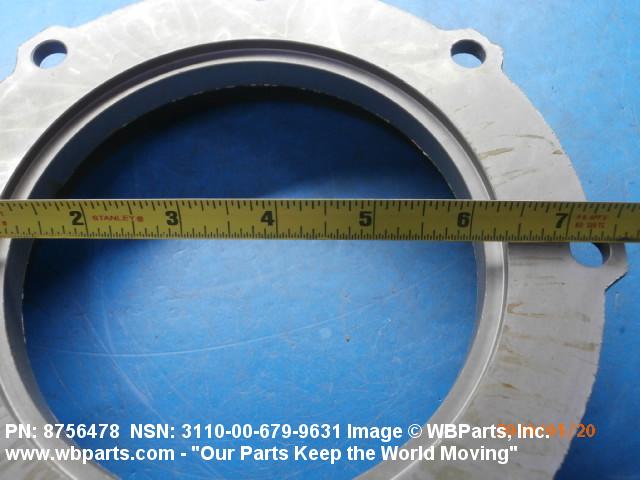

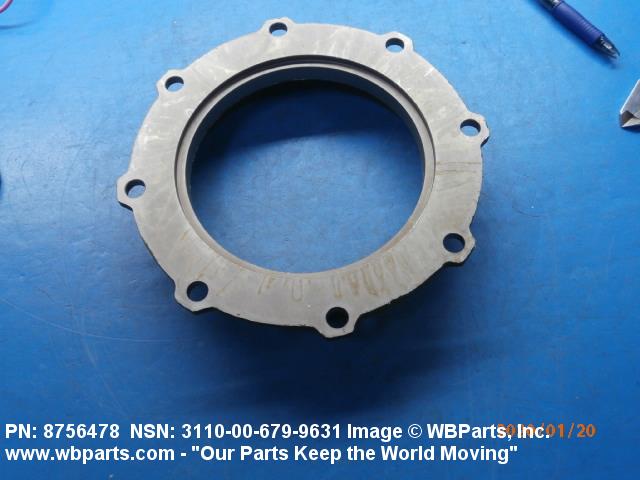

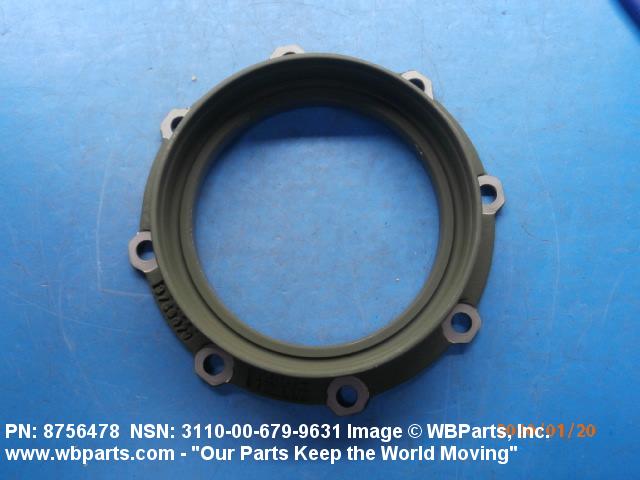

Drawings & Photos | NSN 3110-00-679-9631
Demand History | NSN 3110-00-679-9631
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-679-9631 | 2020-07-187 | 109 | DIBBS |
| 3110-00-679-9631 | 2020-03-87 | 109 | DIBBS |
| 3110-00-679-9631 | 2020-03-77 | 109 | DIBBS |
| 3110-00-679-9631 | 2020-02-45 | 184 | DIBBS |
| 3110-00-679-9631 | 2020-01-23 | 184 | DIBBS |
| 8756478 | 2020-01-06 | 3 | Malaysia |
| 3110-00-679-9631 | 2019-08-213 | 99 | DIBBS |
| 3110-00-679-9631 | 2019-07-205 | 99 | DIBBS |
| 3110-00-679-9631 | 2018-11-319 | 160 | DIBBS |
| 3110-00-679-9631 | 2018-11-311 | 160 | DIBBS |
| 3110-00-679-9631 | 2012-09-249 | 345 | DIBBS |
| 3110-00-679-9631 | 2012-07-187 | 105 | DIBBS |
| 3110-00-679-9631 | 2012-04-95 | 98 | DIBBS |
| 3110-00-679-9631 | 2012-03-75 | 62 | DIBBS |
| 3110-00-679-9631 | 2009-02-33 | 100 | IL |
| 3110-00-679-9631 | 2007-11-323 | 133 | DIBBS |
| 3110-00-679-9631 | 2007-09-247 | 110 | DIBBS |
| 3110-00-679-9631 | 2007-08-239 | 340 | DIBBS |
| 3110-00-679-9631 | 2007-01-22 | 34 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-679-9631
Related Products | NSN 3110-00-679-9631
Technical Data | NSN 3110-00-679-9631
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | B20 ROUND WITH LUGS |
| LUG QUANTITY | 8 |

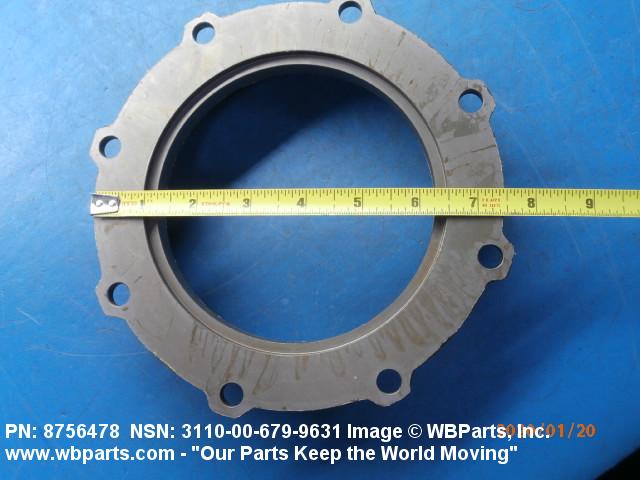

| OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |

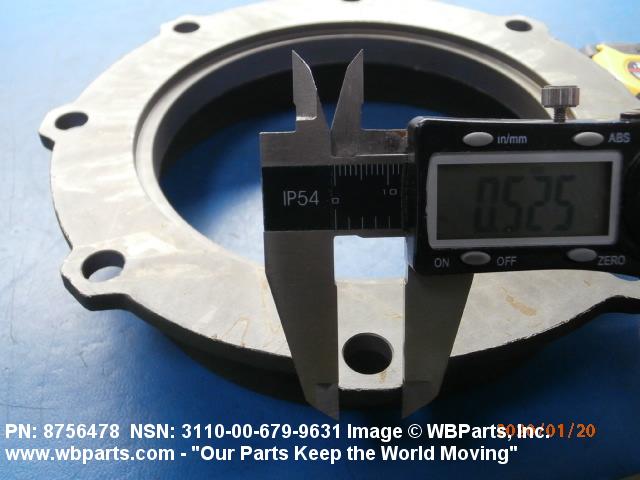

| LUG WIDTH | 0.500 INCHES NOMINAL |

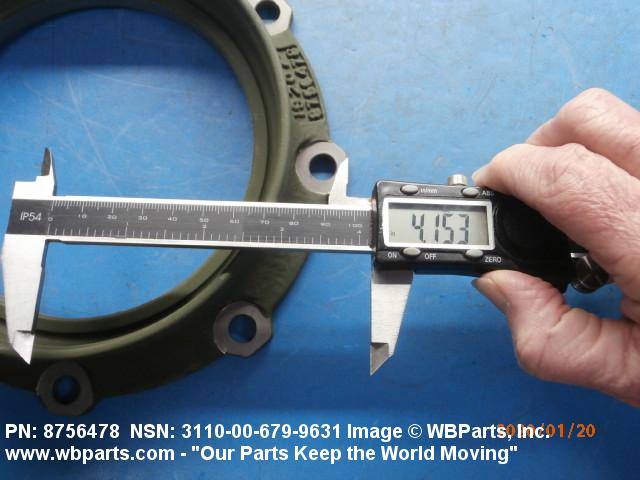

| RADIUS FROM CENTER OF PLATE TO END OF LUG | 4.156 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | C4B RAISED SURFACE WITHOUT APERTURE |

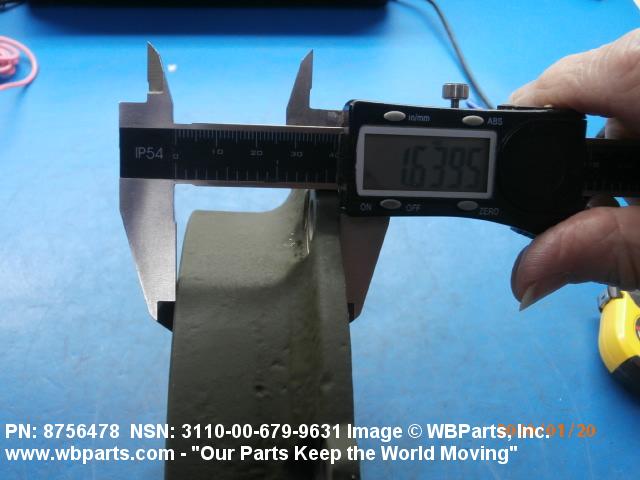

| OVERALL THICKNESS | 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |
| OUTSIDE RAISED SURFACE DIAMETER | 6.313 INCHES NOMINAL |

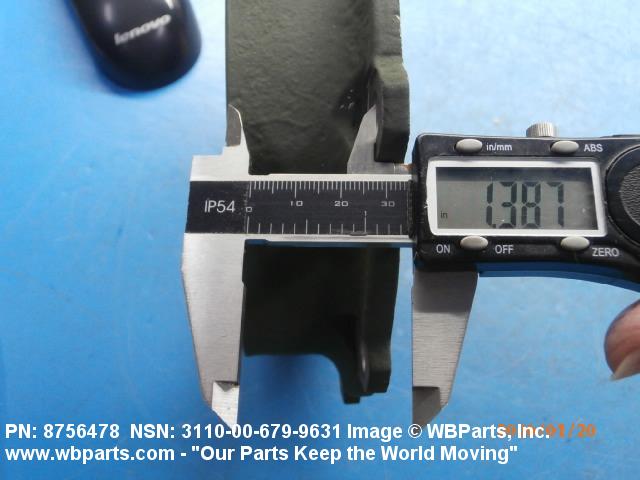

| RAISED SURFACE HEIGHT | 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |

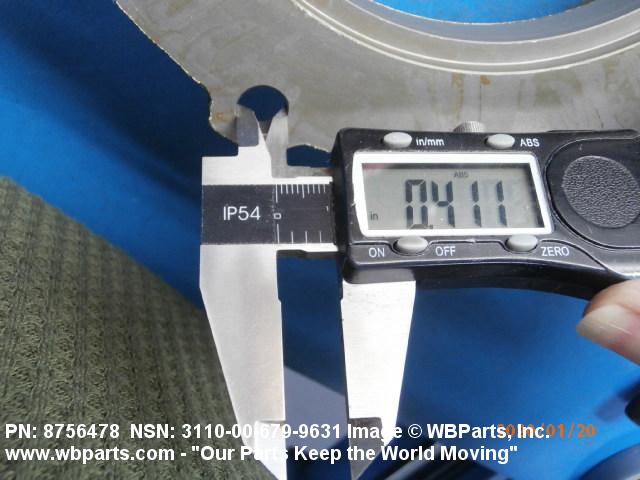

| MOUNTING HOLE DIAMETER | 0.391 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| MOUNTING HOLE ARRANGEMENT STYLE | D15 SINGLE BOLT HOLE CIRCLE |
| BOLT CIRCLE HOLE QUANTITY | 8 |
| MOUNTING BOLT CIRCLE DIAMETER | 7.500 INCHES NOMINAL |

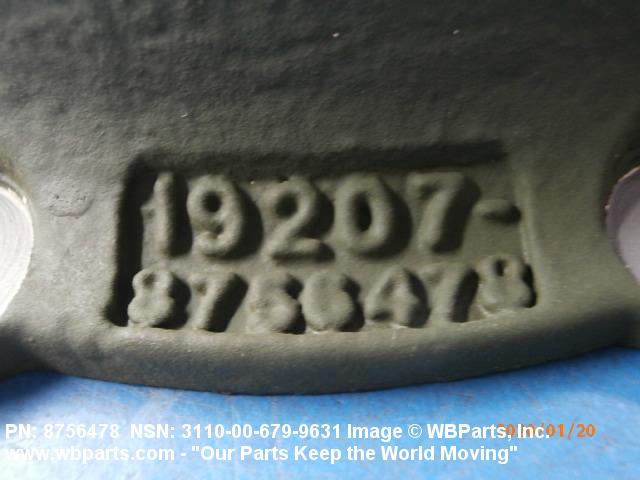

| TEST DATA DOCUMENT | 19207-8756478 DRAWING |
Restrictions/Controls & Freight Information | NSN 3110-00-679-9631
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-679-9631
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
