NSN 3110-00-555-5432 AA59597, A-A-59597, AA59597107JCBT

Product Details | ANNULAR BALL BEARING

3110-00-555-5432 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: AA59597, A-A-59597, AA59597107JCBT, AA59597-107JCBT, C9942P, H160923, S16024, KB131, U135MF, FFB171, 72-6970-017, 7766, 7956168001, 7956168-001, 827824, 35BS12, 556428, 55642-8, 661548, 01845-1226, 0211603, 02122430, 0212243-0, 1207, 1207ETN9, 1207J, 1207SA, 12235935, 122359-35, 12708A, 12Z31567, 12Z315-67, 160923, 17700967, 177009-67, 18451226, 1845-1226, 211603, 212243, 2507, 2507XY1, 263, L207, U135, 3110-00-555-5432, 00-555-5432, 3110005555432, 018451226, 005555432, 726970017

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-555-5432	00014 ( BEARING, BALL, ANNULAR )

Drawings & Photos | NSN 3110-00-555-5432

Part Number	Request Date	QTY	Origin
1207	2024-03-79	100	United States
3110-00-555-5432	2021-02-33	1	US
FFB171	2017-01-10	7	US
FFB171	2013-01-11	22	US
AA59597	2009-10-295	5	United States
FFB171	2008-11-317	8	United States
3110-00-555-5432	2008-01-29	353	DIBBS
3110-00-555-5432	2007-11-334	88	DIBBS
3110-00-555-5432	2007-11-307	101	DIBBS
3110-00-555-5432	2007-04-106	164	DIBBS
3110-00-555-5432	2007-03-89	58	DIBBS
3110-00-555-5432	2007-03-78	129	DIBBS

Cross Reference | NSN 3110-00-555-5432

Part Number	Cage Code	Manufacturer
01845-1226	79343	SCIENCE APPLICATIONS INTERNATIONAL CORPORATION
01845-1226	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
0211603	92392	ALLIS-CHALMERS CORP
0212243-0	92392	ALLIS-CHALMERS CORP
1207	24845	AMCA INTL CORP GIDDINGS AND LEWIS DIV
1207	43991	FAG BEARINGS CORPORATION
1207	52676	SKF USA INC.
1207	53035	NSK CORP BEARING DIV
1207	55207	ARROW-MASTER, INCORPORATED
1207	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
1207	80038	EQUITABLE BEARING CO INC
1207ETN9	52676	SKF USA INC.
1207J	52676	SKF USA INC.
1207SA	21760	SCHATZ BEARING CORPORATION
122359-35	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
12708A	1ML14	D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS
12708A	28265	HERCULES ENGINE CO INC
12Z315-67	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
160923	1ML14	D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS
160923	28265	HERCULES ENGINE CO INC
160923	42271	KENOSHA AUTOMOTIVE PLANT SUB OF AMERICAN MOTORS CORP
177009-67	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
1845-1226	93568	HARSCO CORP BMY-COMBAT SYSTEMS DIV
211603	92392	ALLIS-CHALMERS CORP
212243	92392	ALLIS-CHALMERS CORP
2507	24617	GENERAL MOTORS CORP
2507	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
2507XY1	24617	GENERAL MOTORS CORP
2507XY1	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
263	80254	TEXTRON LYCOMING INC WILLIAMSPORT PLANT
35BS12	70413	ANTI-FRICTION BEARING MFG ASSN INC THE
55642-8	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
661548	24617	GENERAL MOTORS CORP
72-6970-017	50024	COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE FM/ALCO
7766	11083	CATERPILLAR INC. DBA CATERPILLAR
7956168-001	98747	OGDEN AIR LOGISTICS CENTER
827824	61465	GARWOOD/FELLER INC GARWOOD WINCH DIV
A-A-59597	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
AA59597-107JCBT	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
C9942P	55509	COOPER CAMERON CORP AJAX-SUPERIOR DIV
FFB171	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
H160923	42271	KENOSHA AUTOMOTIVE PLANT SUB OF AMERICAN MOTORS CORP
KB131	34161	KOEHRING CO
KB131	8E499	KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO
L207	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
S16024	15434	CUMMINS INC.
S16024	59690	KOEHRING CO LORAIN DIV
S16024	8E499	KOEHRING CRANES AND EXCAVATORS INC SUB OF NORTHWEST ENGINEERING CO
U135	43991	FAG BEARINGS CORPORATION
U135MF	43991	FAG BEARINGS CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-555-5432

Compare

Related Products | NSN 3110-00-555-5432

3110-00-555-5433, 3110-00-555-5435, 3110-00-555-5436, 3110-00-555-5437, 3110-00-555-5444

Technical Data | NSN 3110-00-555-5432

Characteristic	Specifications
MATERIAL	STEEL OVERALL

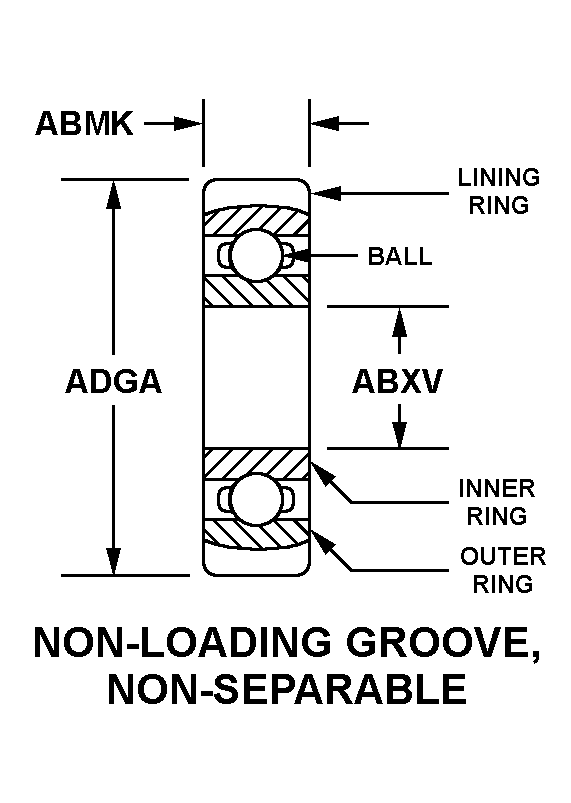

STYLE DESIGNATOR	84 NON-LOADING GROOVE, NON-SEPARABLE
OVERALL WIDTH	17.0 MILLIMETERS NOMINAL
BORE DIAMETER	35.00 MILLIMETERS NOMINAL
OVERALL OUTSIDE DIAMETER	72.00 MILLIMETERS NOMINAL
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-59597
MANUFACTURERS CODE	58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AA59597-107TCBT

Restrictions/Controls & Freight Information | NSN 3110-00-555-5432

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-555-5432

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
