NSN 3110-00-516-5301 A2408, YR138CP, YR-138-CP
Product Details | NEEDLE ROLLER BEARING
3110-00-516-5301 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: A2408, YR138CP, YR-138-CP , 1886MILG3278A, 54459, 74164, 74164ANG25, 74164MILG3278A, 9881, 9881MILG3278, 3110-00-516-5301, 00-516-5301, 3110005165301, 005165301
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-516-5301 | 00051 ( BEARING, ROLLER, NEEDLE ) |
Drawings & Photos | NSN 3110-00-516-5301
Demand History | NSN 3110-00-516-5301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-516-5301 | 2024-01-16 | 2 | GU |
| 3110-00-516-5301 | 2022-05-130 | 18 | United States |
| 3110-00-516-5301 | 2022-04-102 | 6 | United States |
| 3110-00-516-5301 | 2021-01-15 | 1 | DIBBS-RFPs |
| 3110-00-516-5301 | 2021-01-08 | 1 | DIBBS-RFPs |
| A2408 | 2019-03-85 | 2 | DIBBS |
| YR-138-CP | 2019-03-85 | 2 | DIBBS |
| A2408 | 2019-03-81 | 27 | DIBBS |
| YR-138-CP | 2019-03-81 | 27 | DIBBS |
| A2408 | 2019-03-79 | 5 | DIBBS |
| YR-138-CP | 2019-03-79 | 5 | DIBBS |
| A2408 | 2019-03-77 | 2 | DIBBS |
| YR-138-CP | 2019-03-77 | 2 | DIBBS |
| A2408 | 2019-03-72 | 27 | DIBBS |
| YR-138-CP | 2019-03-72 | 27 | DIBBS |
| A2408 | 2019-03-64 | 27 | DIBBS |
| YR-138-CP | 2019-03-64 | 27 | DIBBS |
| 3110-00-516-5301 | 2018-08-232 | 13 | DIBBS |
| 3110-00-516-5301 | 2017-05-138 | 39 | DIBBS |
| 3110-00-516-5301 | 2017-04-109 | 39 | DIBBS |
| 3110-00-516-5301 | 2017-03-78 | 39 | DIBBS |
| 3110-00-516-5301 | 2017-01-24 | 11 | DIBBS |
| 3110-00-516-5301 | 2017-01-06 | 11 | DIBBS |
| 3110-00-516-5301 | 2016-12-341 | 11 | DIBBS |
| 3110-00-516-5301 | 2016-06-167 | 27 | DIBBS |
| 3110-00-516-5301 | 2011-03-68 | 59 | DIBBS |
| 3110-00-516-5301 | 2011-02-35 | 59 | DIBBS |
| 3110-00-516-5301 | 2011-01-11 | 42 | DIBBS |
| 3110-00-516-5301 | 2010-10-280 | 42 | DIBBS |
| 3110-00-516-5301 | 2010-04-118 | 42 | DIBBS |
| 3110-00-516-5301 | 2007-05-150 | 18 | United States |
Cross Reference | NSN 3110-00-516-5301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1886MILG3278A | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 54459 | 06840 | BENDIX CORP THE |
| 54459 | 32669 | ABB INC. DBA A B B ANALYTICAL PRODUCTS |
| 74164 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 74164ANG25 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 74164MILG3278A | 51600 | EMERSON POWER TRANSMISSION CORPORATION |
| 9881 | 60038 | TIMKEN CORPORATION, THE |
| 9881MILG3278 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| A2408 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| YR-138-CP | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-516-5301
Related Products | NSN 3110-00-516-5301
Technical Data | NSN 3110-00-516-5301
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |

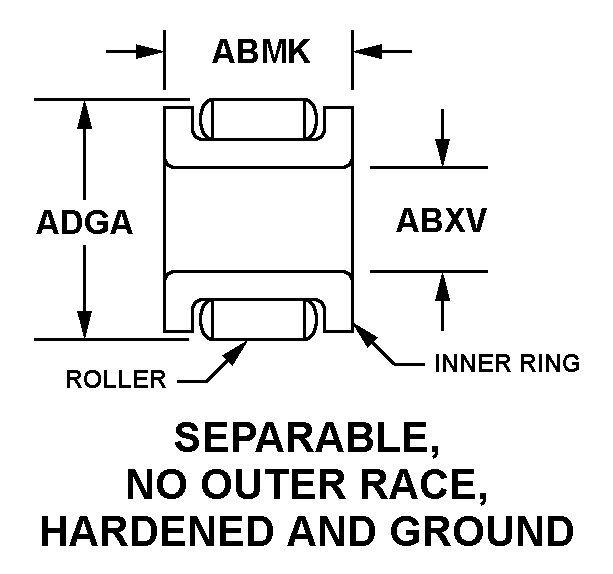

| STYLE DESIGNATOR | 428 SEPARABLE, NO OUTER RACE, HARDENED AND GROUND |

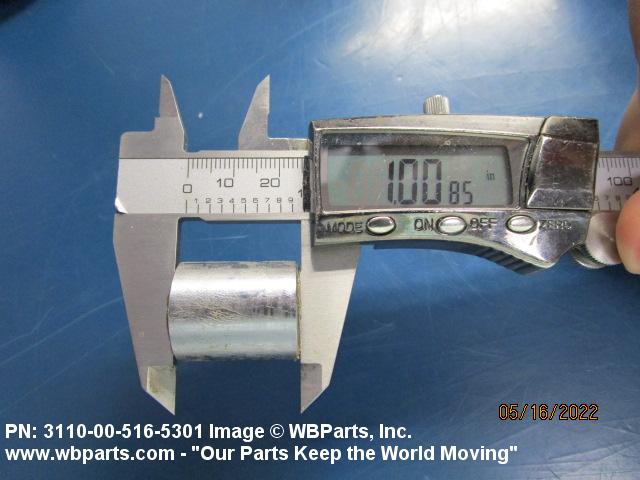

| OVERALL WIDTH | 0.9925 INCHES MINIMUM AND 1.0025 INCHES MAXIMUM |
| BORE DIAMETER | 0.3118 INCHES MINIMUM AND 0.3128 INCHES MAXIMUM |

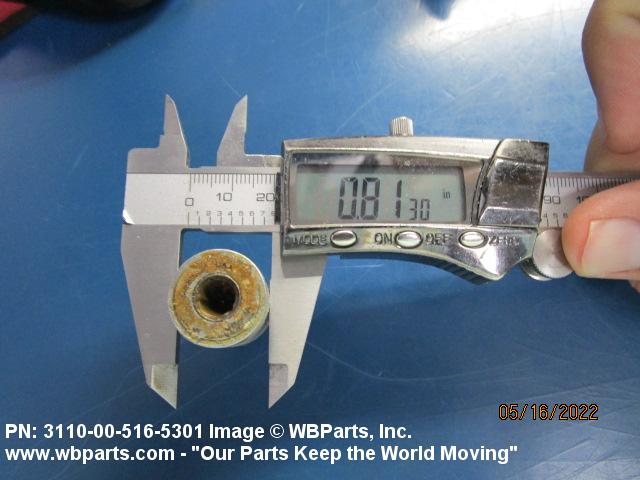

| OVERALL OUTSIDE DIAMETER | 0.8125 INCHES MINIMUM AND 0.8130 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OD AND FACES OF OUTER RING CHROME PLATED |
Restrictions/Controls & Freight Information | NSN 3110-00-516-5301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-516-5301
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
