NSN 3110-00-485-8379 14572411, 1457241-1, 00-485-8379
Product Details | BEARING ROLLER
3110-00-485-8379 A cylindrical body of either solid or hollow construction which provides the rolling elements in the roller bearing.
Part Alternates: 14572411, 1457241-1, 3110-00-485-8379, 00-485-8379, 3110004858379, 004858379
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 JUN 1974 | 00-485-8379 | 00037 ( ROLLER, BEARING ) |
Drawings & Photos | NSN 3110-00-485-8379
Cross Reference | NSN 3110-00-485-8379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1457241-1 | 98889 | AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-485-8379
Related Products | NSN 3110-00-485-8379
Technical Data | NSN 3110-00-485-8379
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 5140 OVERALL |
| SURFACE TREATMENT | OXIDE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

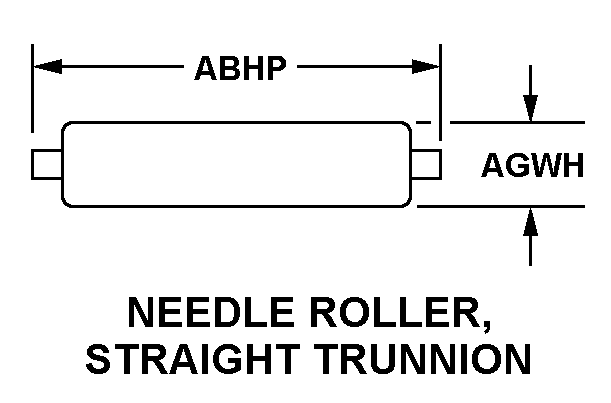

| STYLE DESIGNATOR | 546 NEEDLE ROLLER, STRAIGHT TRUNNION |
| OVERALL LENGTH | 0.3900 INCHES MINIMUM AND 0.4000 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.1562 INCHES NOMINAL |
| SPECIAL FEATURES | CHAMFER AT BOTH ENDS,0.005 IN. MIN TO 0.010 IN. MAX BY 45 DEGREES |
| MANUFACTURERS CODE | 98889 |
| DESIGN CONTROL REFERENCE | 1457241-1 |
Restrictions/Controls & Freight Information | NSN 3110-00-485-8379
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-485-8379
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
