NSN 3110-00-460-5244 MS289135C, MS28913-5C, AS28913

Product Details | AIRFRAME ROLLER BEARING

3110-00-460-5244 A cylindrical item in which the inner or outer ring turns upon row(s) of hardened ROLLER, BEARING which roll on a raceway, thus minimizing friction. These items are characterized by their noncorrosive qualities, lightness of weight, inch dimensions rather than metric, inner rings generally projecting beyond the faces of the outer ring, or a very narrow width inner ring having an outside diameter slightly larger than the bore diameter. Designed primarily for use in aircraft assemblies, such as control systems and surfaces of aircraft. Excludes BEARING, ROLLER, CYLINDRICAL.

Part Alternates: MS289135C, MS28913-5C, AS28913, AS289135C, AS28913-5C, DAS520A41, DAS5-20A-41, 3110-00-460-5244, 00-460-5244, 3110004605244, 004605244

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	12 JAN 1970	00-460-5244	00046 ( BEARING, ROLLER, AIRFRAME )

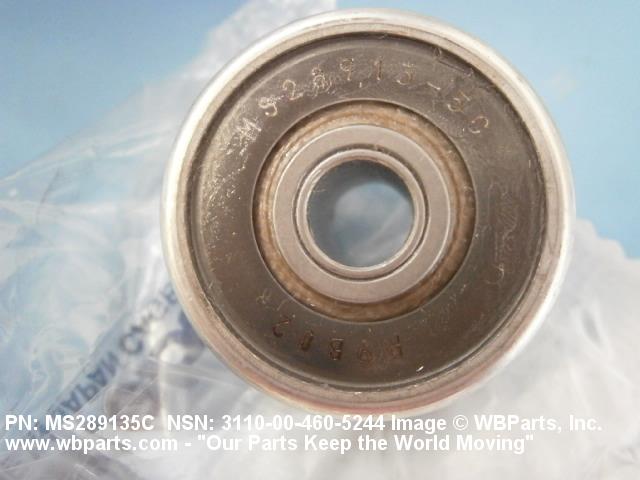

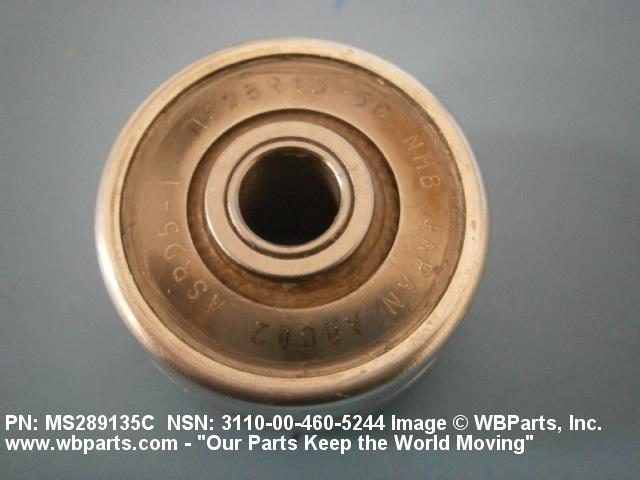

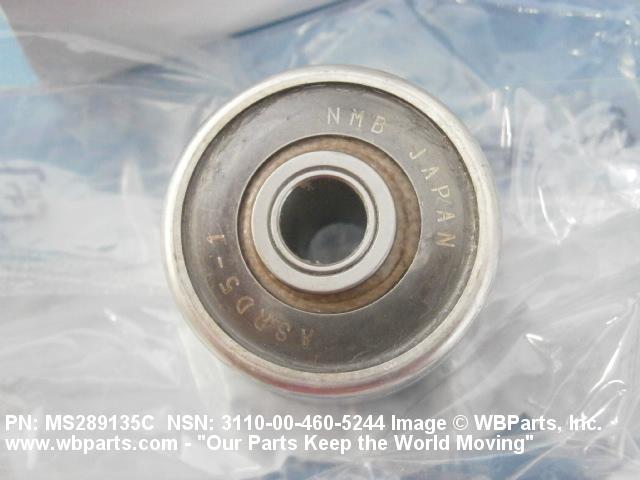

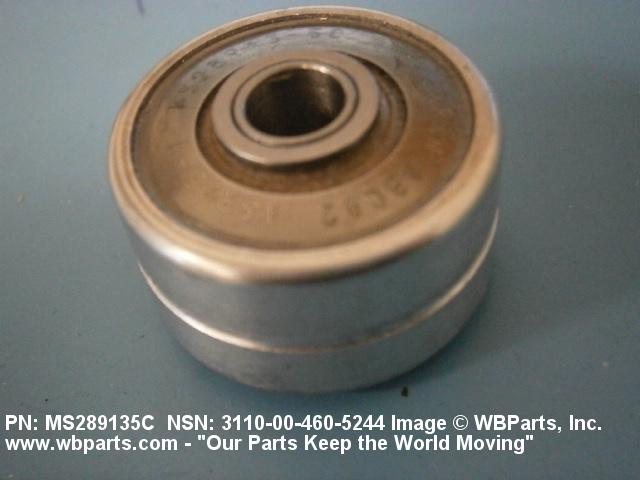

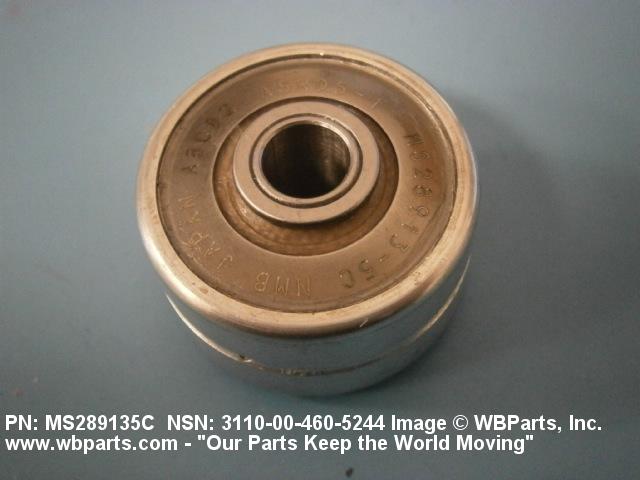

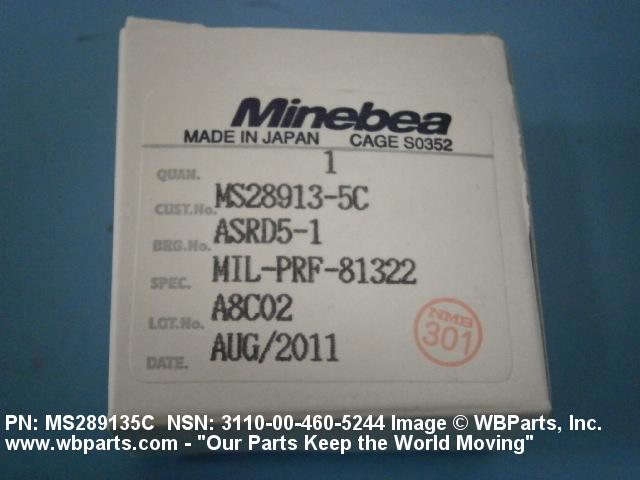

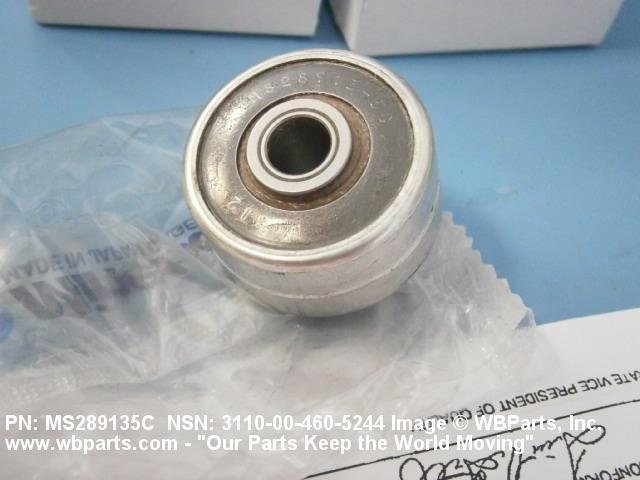

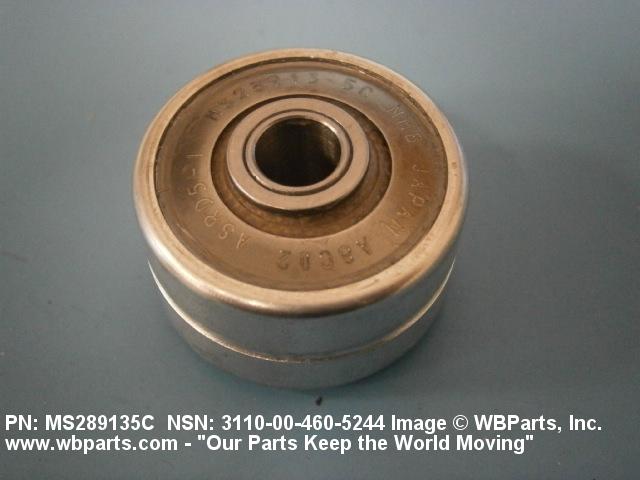

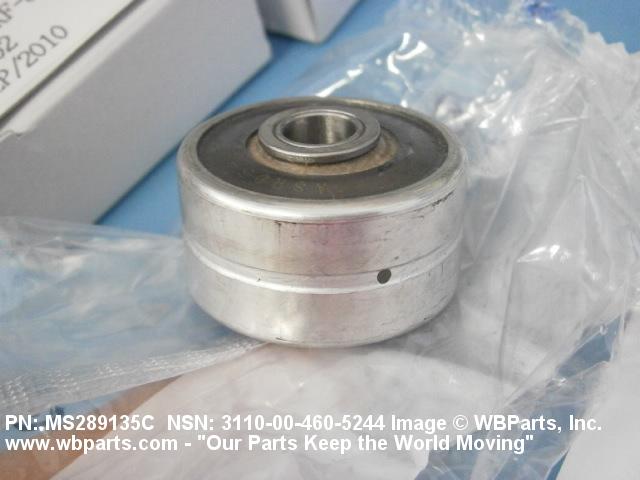

Drawings & Photos | NSN 3110-00-460-5244

Part Number	Request Date	QTY	Origin
3110-00-460-5244	2024-11-319	116	DIBBS
3110-00-460-5244	2024-08-239	47	DIBBS
3110-00-460-5244	2024-08-231	47	DIBBS
3110-00-460-5244	2024-05-149	36	DIBBS
3110-00-460-5244	2024-05-144	107	DIBBS
3110-00-460-5244	2024-05-140	36	DIBBS
3110-00-460-5244	2024-02-46	107	DIBBS
3110-00-460-5244	2023-10-288	6	DIBBS
MS289135C	2023-03-74	20	United States
MS28913-5C	2023-02-33	10	Argentina
3110-00-460-5244	2020-06-180	11	SA
3110-00-460-5244	2020-04-106	56	US
3110-00-460-5244	2018-05-128	1	DIBBS-RFPs
3110-00-460-5244	2017-03-82	4	US
3110-00-460-5244	2017-03-69	475	United States
MS289135C	2016-08-215	3	United States
MS289135C	2016-08-215	7	United States
MS289135C	2016-08-215	16	United States
MS289135C	2016-08-215	26	United States
MS289135C	2016-05-131	9	Egypt
MS289135C	2015-06-167	2	US
MS289135C	2015-06-167	57	US
MS289135C	2014-01-24	14	US
AS289135C	2013-09-267	430	United States
MS289135C	2013-09-267	430	United States
3110-00-460-5244	2013-09-255	1	DIBBS-RFPs
3110-00-460-5244	2013-08-218	220	United States
3110-00-460-5244	2013-02-39	765	DIBBS
3110-00-460-5244	2012-09-263	80	United States
3110-00-460-5244	2012-01-10	36	Taiwan
MS289135C	2012-01-07	184	United States
3110-00-460-5244	2012-01-04	478	DIBBS
MS289135C	2011-09-273	500	United States
3110-00-460-5244	2011-09-245	402	DIBBS
3110-00-460-5244	2011-04-112	434	DIBBS
MS289135C	2011-03-61	52	us
3110-00-460-5244	2011-02-34	375	DIBBS
3110-00-460-5244	2011-01-25	31	US
MS289135C	2011-01-04	130	United States
3110-00-460-5244	2010-10-298	366	DIBBS
DAS520A41	2010-09-271	4	US
MS289135C	2010-09-271	4	US
3110-00-460-5244	2010-09-252	50	US
MS289135C	2010-08-231	96	us
3110-00-460-5244	2010-05-146	374	DIBBS
3110-00-460-5244	2009-12-345	210	DIBBS
3110-00-460-5244	2009-11-308	196	DIBBS
MS289135C	2009-06-153	1	United States
MS289135C	2009-03-71	975	United States
3110-00-460-5244	2008-12-340	566	DIBBS
MS289135C	2008-11-322	336	United States
MS289135C	2008-11-316	1	US
3110-00-460-5244	2008-10-283	309	DIBBS
3110-00-460-5244	2008-04-105	152	DIBBS
MS289135C	2007-09-248	1110	US
MS289135C	2007-06-169	769	us
3110-00-460-5244	2007-03-73	46	DIBBS
3110-00-460-5244	2007-02-38	1256	DIBBS
3110-00-460-5244	2007-02-37	796	DIBBS
DAS520A41	2006-10-278	1	United States

Cross Reference | NSN 3110-00-460-5244

Part Number	Cage Code	Manufacturer
AS28913	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS28913-5C	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
AS28913-5C	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
DAS5-20A-41	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
MS28913-5C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-460-5244

Compare

Related Products | NSN 3110-00-460-5244

3110-00-460-5246, 3110-00-460-5247, 3110-00-460-6417, 3110-00-460-6643, 3110-00-460-8240

Technical Data | NSN 3110-00-460-5244

Characteristic	Specifications
MATERIAL	STEEL INNER RING STEEL OUTER RING STEEL OR COPPER ALLOY RETAINER STEEL ROLLER RUBBER SYNTHETIC SEAL
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	276 CONCAVE ROLLERS, DOUBLE CLOSURE, SELF ALIGNING
BORE DIAMETER	0.3125 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.2500 INCHES NOMINAL
OUTER RING WIDTH	0.6560 INCHES NOMINAL
INNER RING WIDTH	0.8120 INCHES NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
SPECIAL FEATURES	10 DEG SELF-ALIGNMENT IN EITHER DIRECTION,OIL HOLE AND GROOVE IN OD OF OUTER RING

Restrictions/Controls & Freight Information | NSN 3110-00-460-5244

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-460-5244

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
