NSN 3110-00-455-6188 AP41221, ETJ748889D10, ETJ74888-9D10
Product Details | NEEDLE ROLLER BEARING
3110-00-455-6188 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: AP41221, ETJ748889D10, ETJ74888-9D10, ETJ748889D11, ETJ74888-9D11, ETJ756499D, ETJ-75649-9D, 114RS2145, 114RS214-5, 3110-00-455-6188, 00-455-6188, 3110004556188, 004556188
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 APR 1969 | 00-455-6188 | 00051 ( BEARING, ROLLER, NEEDLE ) |

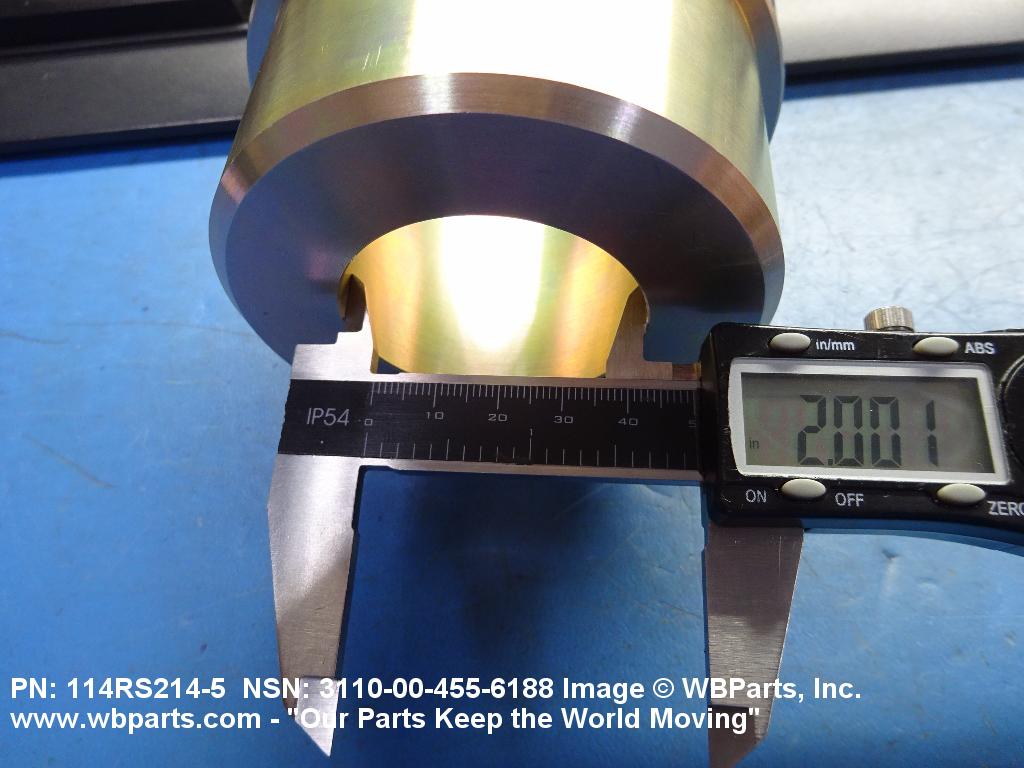

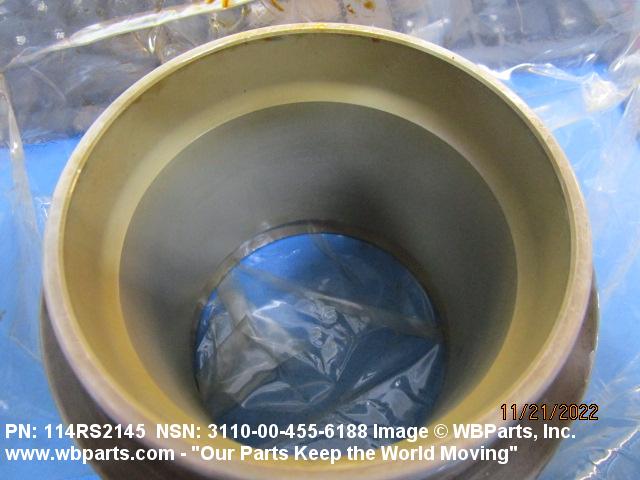

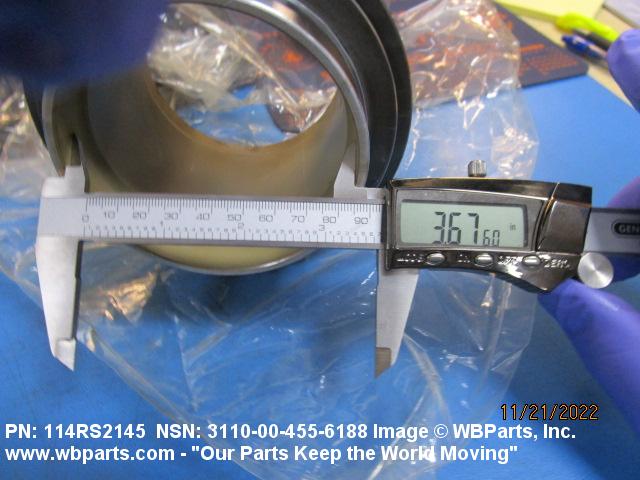

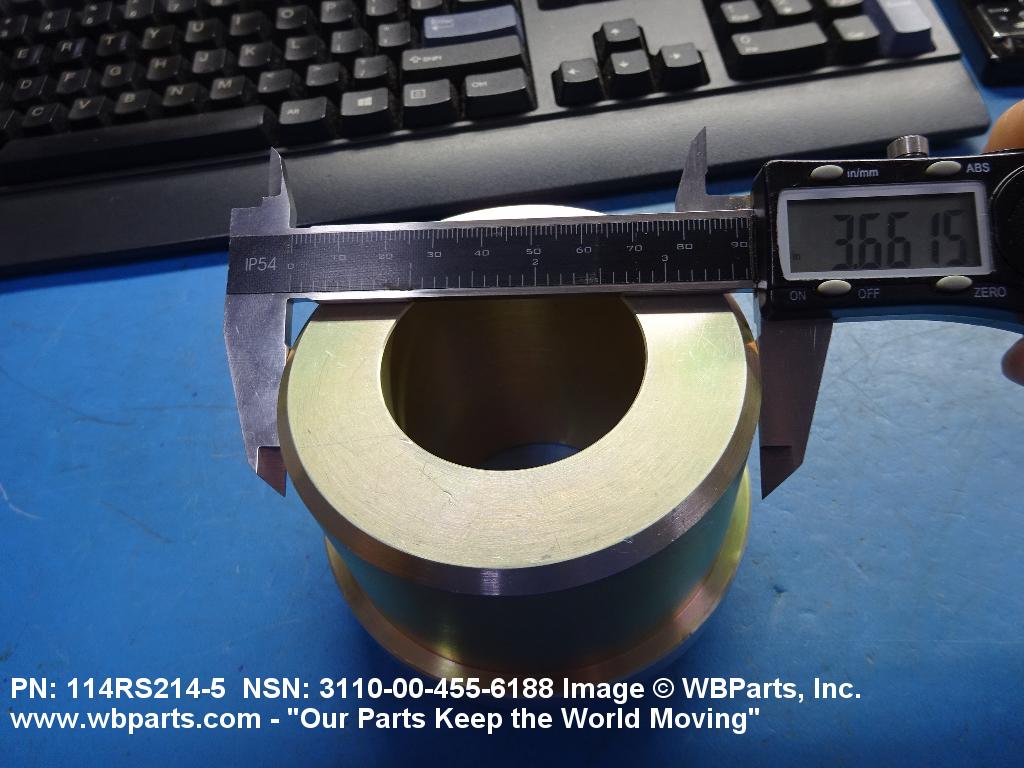

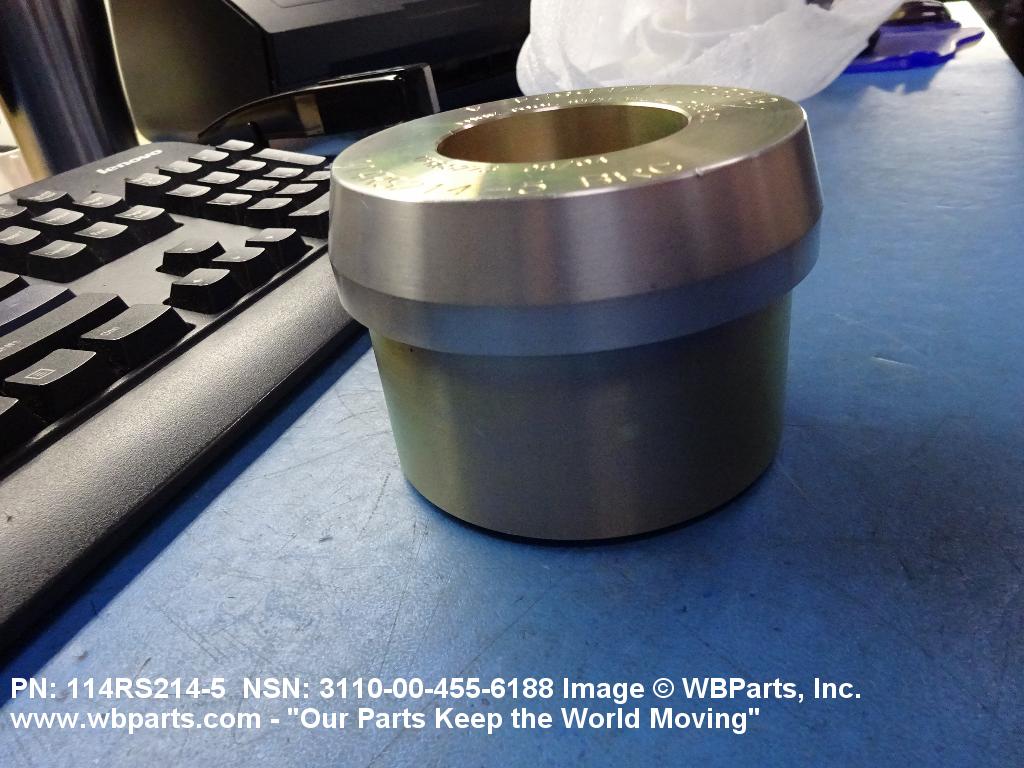

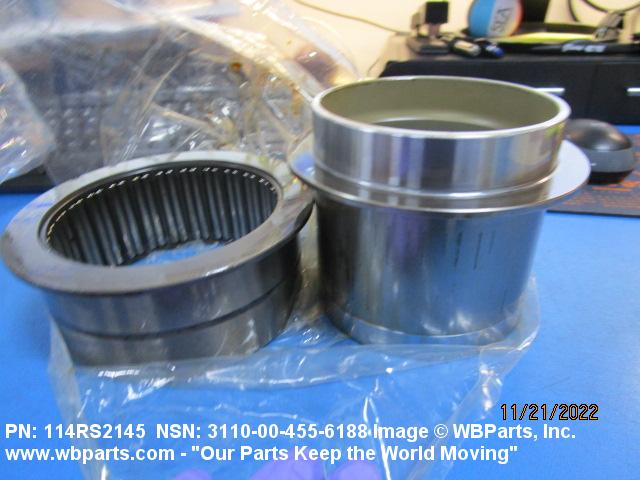

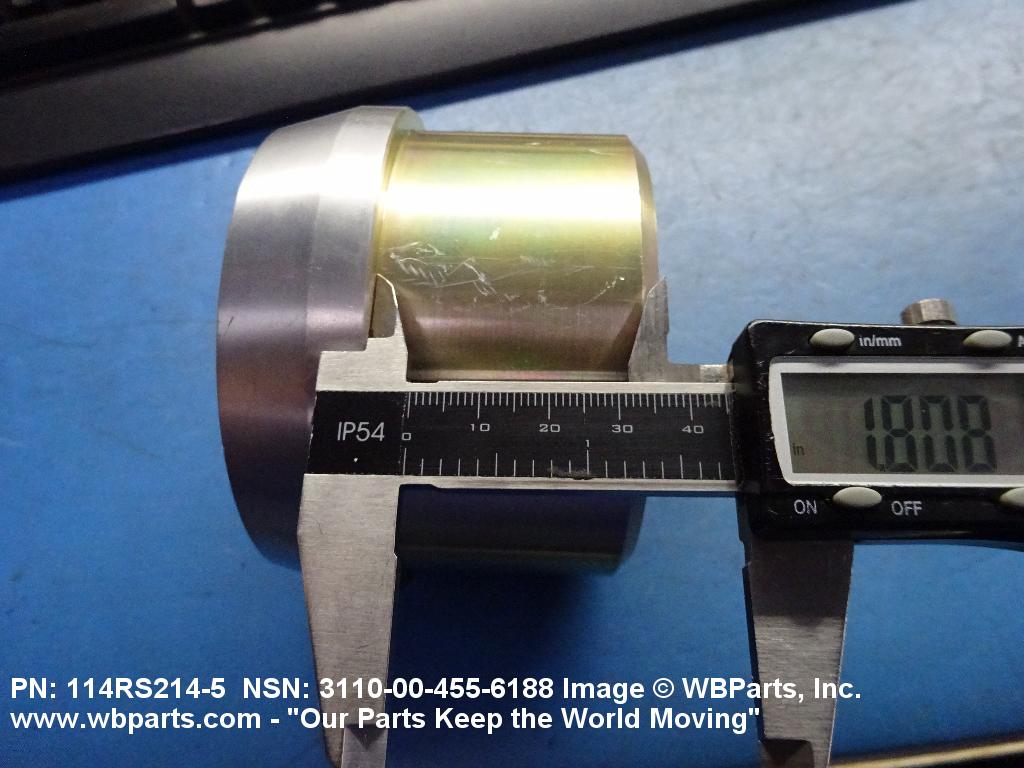

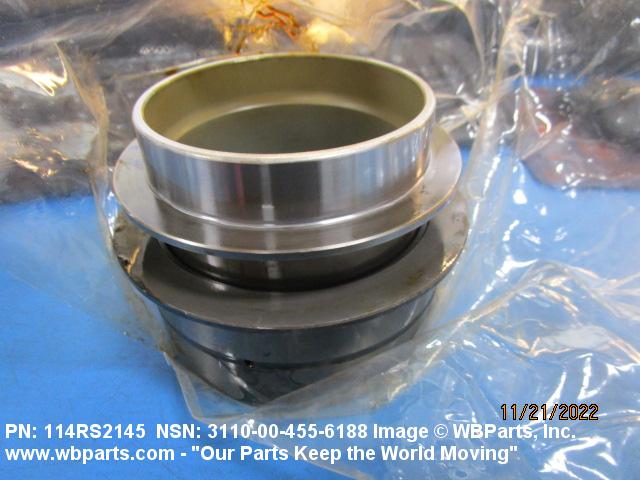

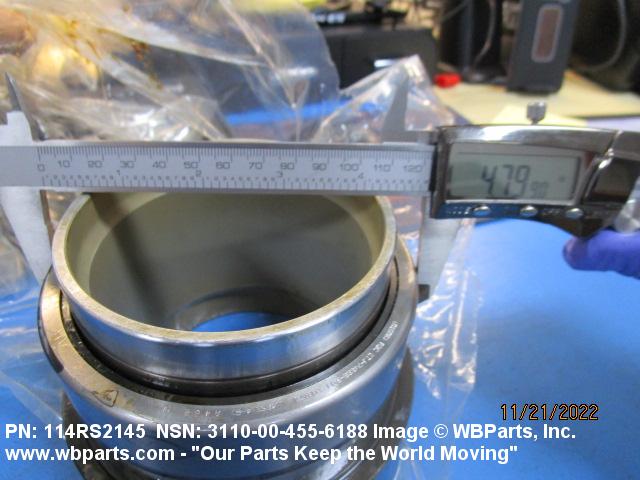

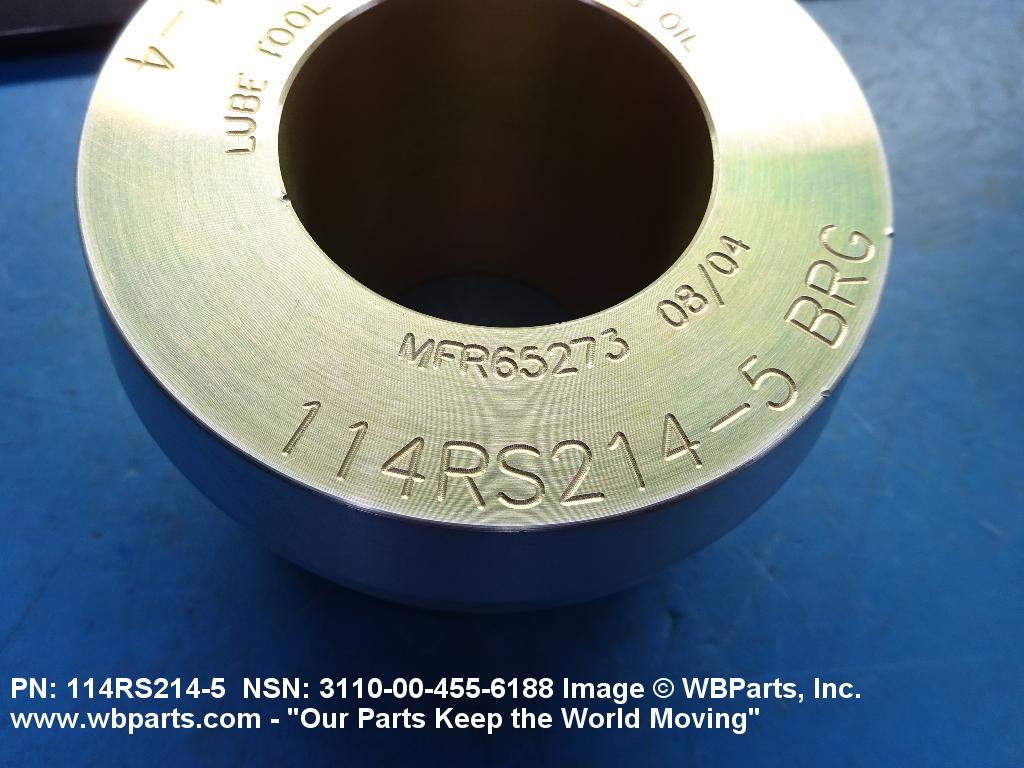

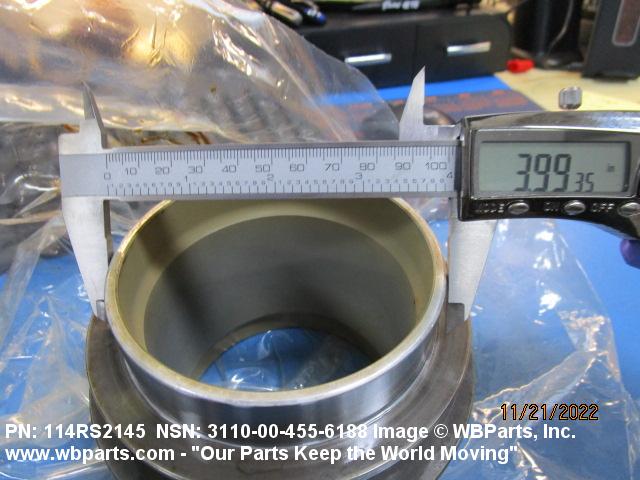

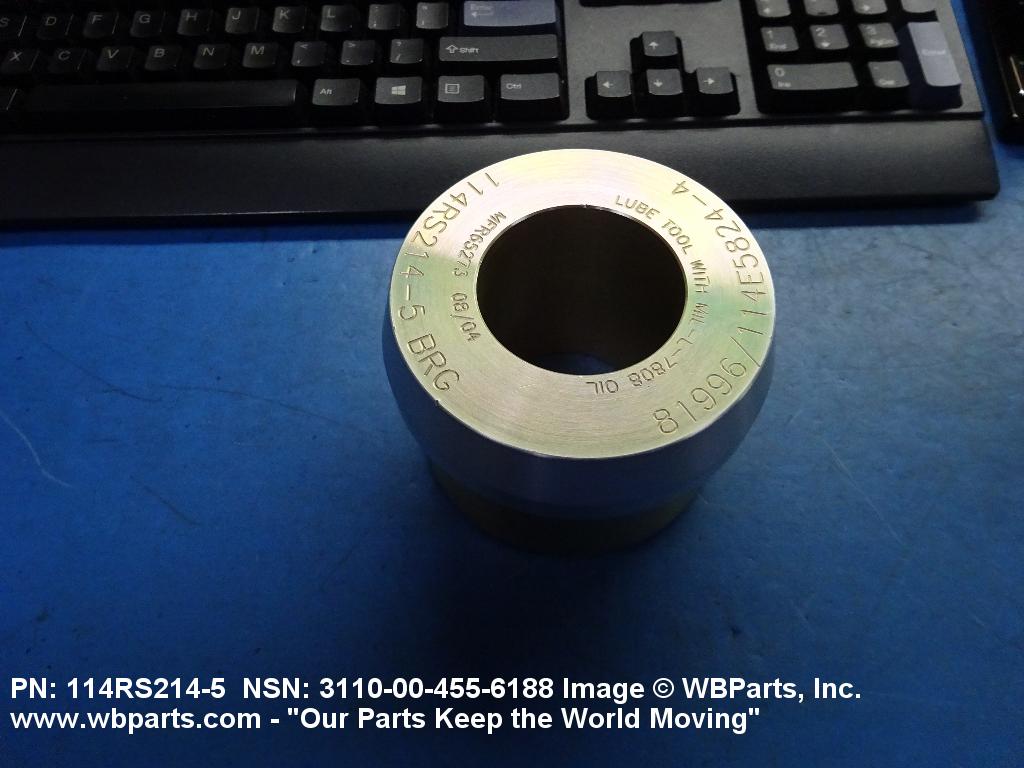

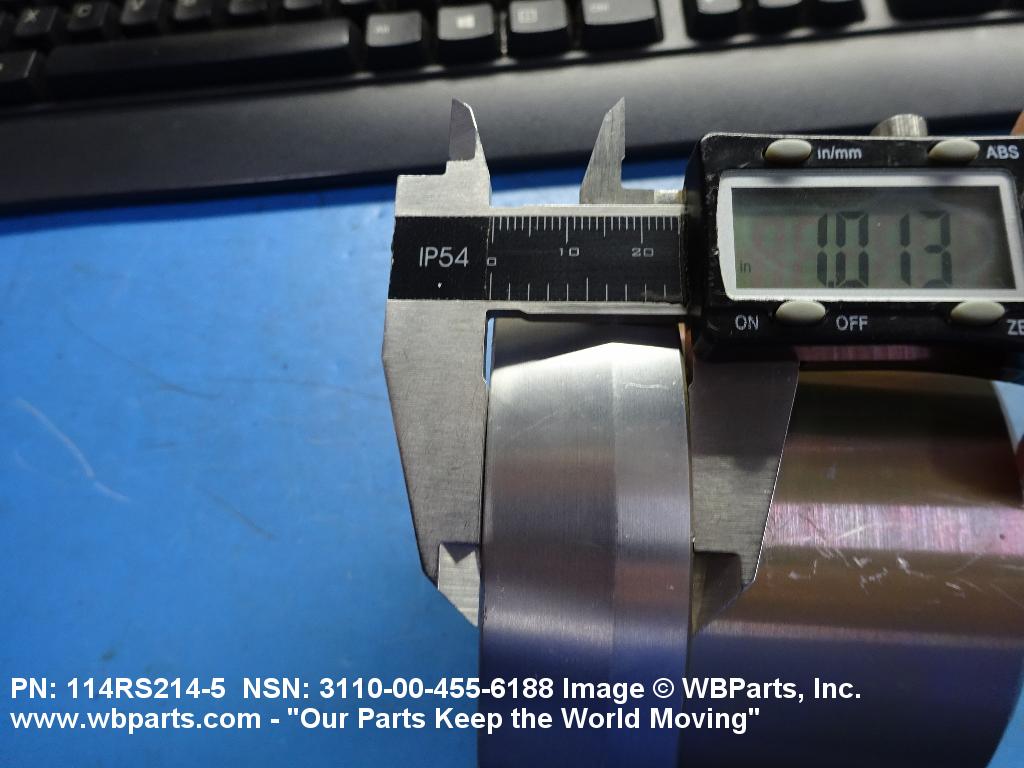

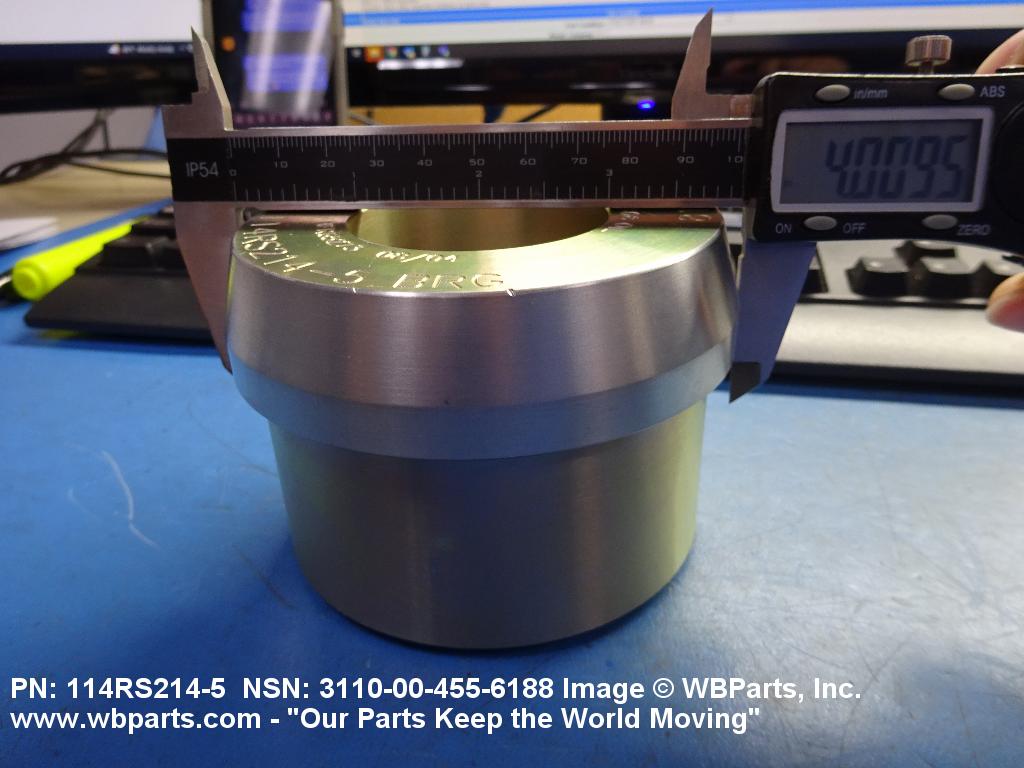

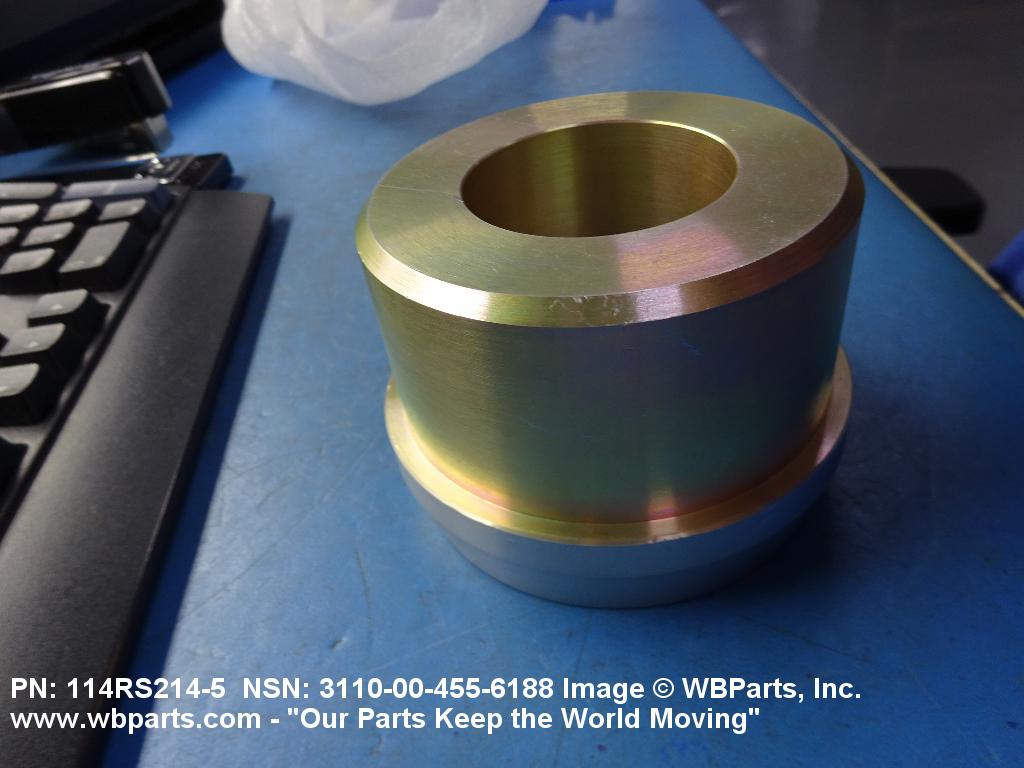

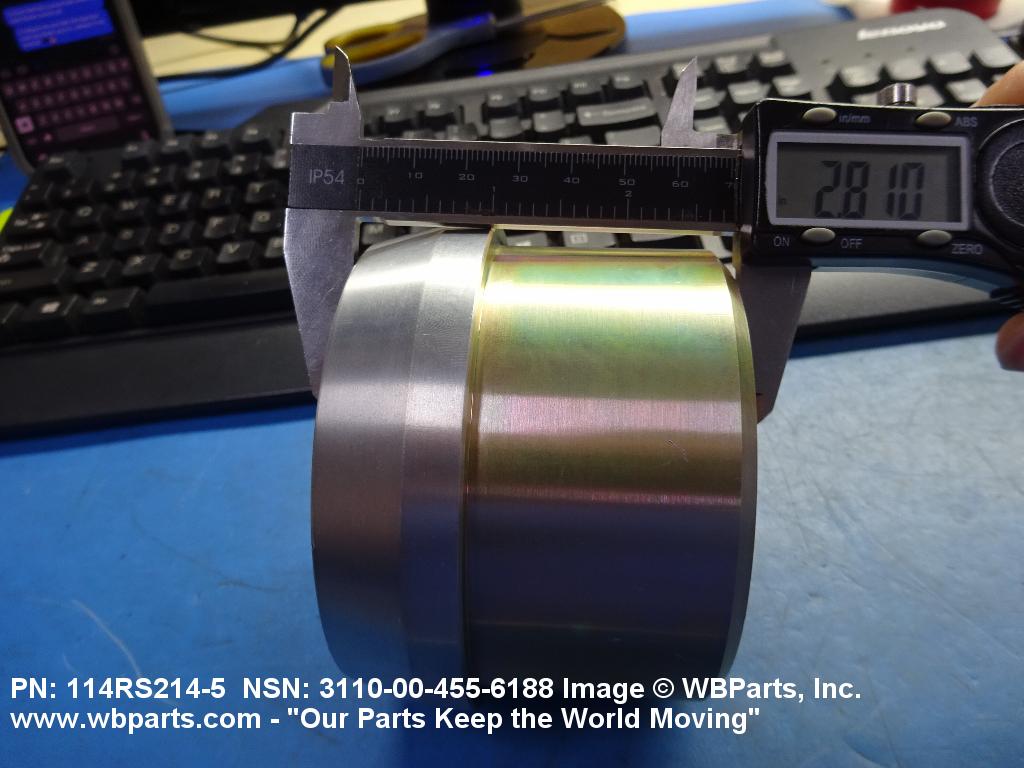

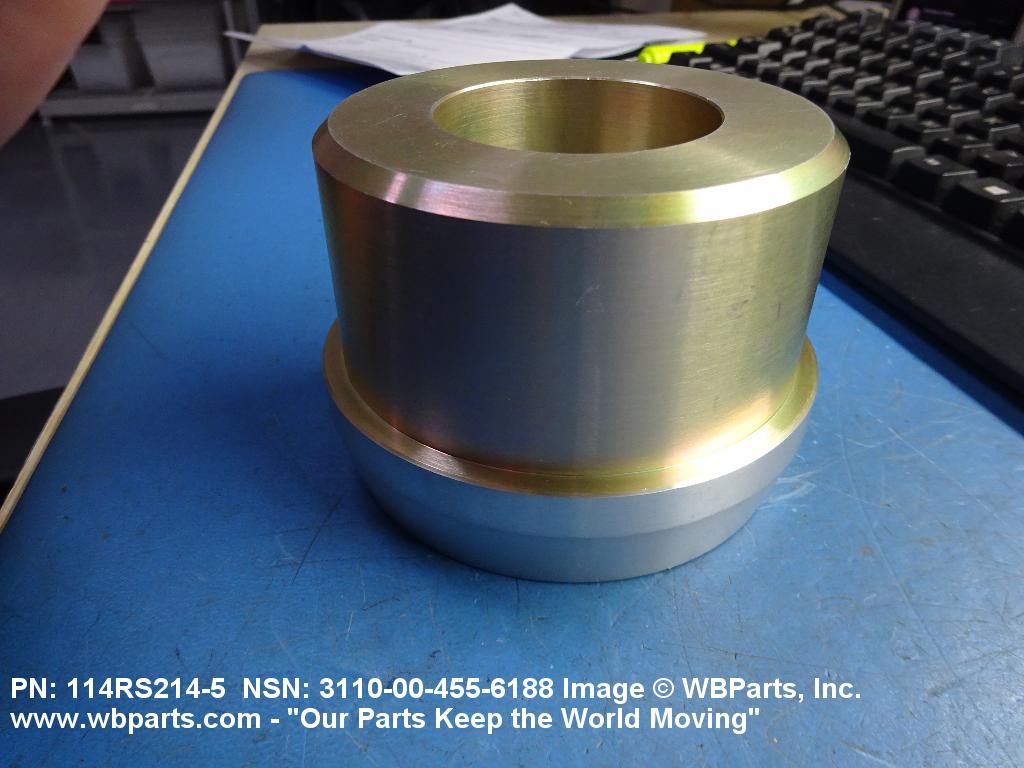

Drawings & Photos | NSN 3110-00-455-6188
Demand History | NSN 3110-00-455-6188
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 114RS214-5 | 2023-05-149 | 2 | DIBBS |
| 114RS214-5 | 2023-05-149 | 9 | DIBBS |
| 114RS2145 | 2023-01-12 | 2 | United States |
| 114RS2145 | 2022-12-342 | 1 | United States |
| 114RS2145 | 2022-07-210 | 3 | United States |
| 3110-00-455-6188 | 2022-02-59 | 5 | US |
| 114RS214-5 | 2021-03-63 | 18 | DIBBS |
| 114RS214-5 | 2020-11-314 | 100 | DIBBS |
| 3110-00-455-6188 | 2020-10-304 | 1 | DIBBS-RFPs |
| 114RS214-5 | 2019-07-203 | 107 | DIBBS |
| 3110-00-455-6188 | 2018-11-311 | 84 | DIBBS |
| 3110-00-455-6188 | 2018-08-232 | 115 | DIBBS |
| 3110-00-455-6188 | 2017-03-88 | 78 | DIBBS |
| 3110-00-455-6188 | 2017-02-40 | 1 | DIBBS-RFPs |
| 114RS2145 | 2013-03-65 | 1 | United Kingdom |
| 114RS214-5 | 2012-06-171 | 2 | Malaysia |
| 3110-00-455-6188 | 2012-06-171 | 2 | MANUAL |
| 3110-00-455-6188 | 2007-07-199 | 12 | Singapore |
Cross Reference | NSN 3110-00-455-6188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 114RS214-5 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| 114RS214-5 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 114RS214-5 | 77272 | THE BOEING COMPANY DBA BOEING |
| AP41221 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| ETJ-75649-9D | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| ETJ74888-9D10 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| ETJ74888-9D11 | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-455-6188
Related Products | NSN 3110-00-455-6188
Technical Data | NSN 3110-00-455-6188
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL COMP 1010 RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6490 ASSN STD SINGLE MATERIAL RESPONSE INNER RING FED-STD-66 FED STD SINGLE MATERIAL RESPONSE RETAINER AMS 6490 ASSN STD SINGLE MATERIAL RESPONSE ROLLER |
| STYLE DESIGNATOR | 418 SEPARABLE ROLLERS, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 3.8150 INCHES NOMINAL |
| BORE DIAMETER | 3.5305 INCHES MINIMUM AND 3.5317 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.7992 INCHES MINIMUM AND 4.8000 INCHES MAXIMUM |
| ALIGNMENT TYPE | RIGID |
| TEST DATA DOCUMENT | 51588-AQCVIP S2 SPECIFICATION AND 60380-ATPS20A5 SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 3110-00-455-6188
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
