NSN 3110-00-452-4035 754-4-24420, 754734099000, 754-7-34099-000
Product Details | ANNULAR BALL BEARING
3110-00-452-4035 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 754-4-24420, 754734099000, 754-7-34099-000, 3110-00-452-4035, 00-452-4035, 3110004524035, 754424420, 004524035
Bearings | Bearings, Antifriction, Unmounted
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 08 MAY 1970 | 00-452-4035 | 00014 ( BEARING, BALL, ANNULAR ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-452-4035
Related Products | NSN 3110-00-452-4035
Technical Data | NSN 3110-00-452-4035
Characteristic | Specifications |
---|---|
MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING COPPER ALLOY RETAINER |

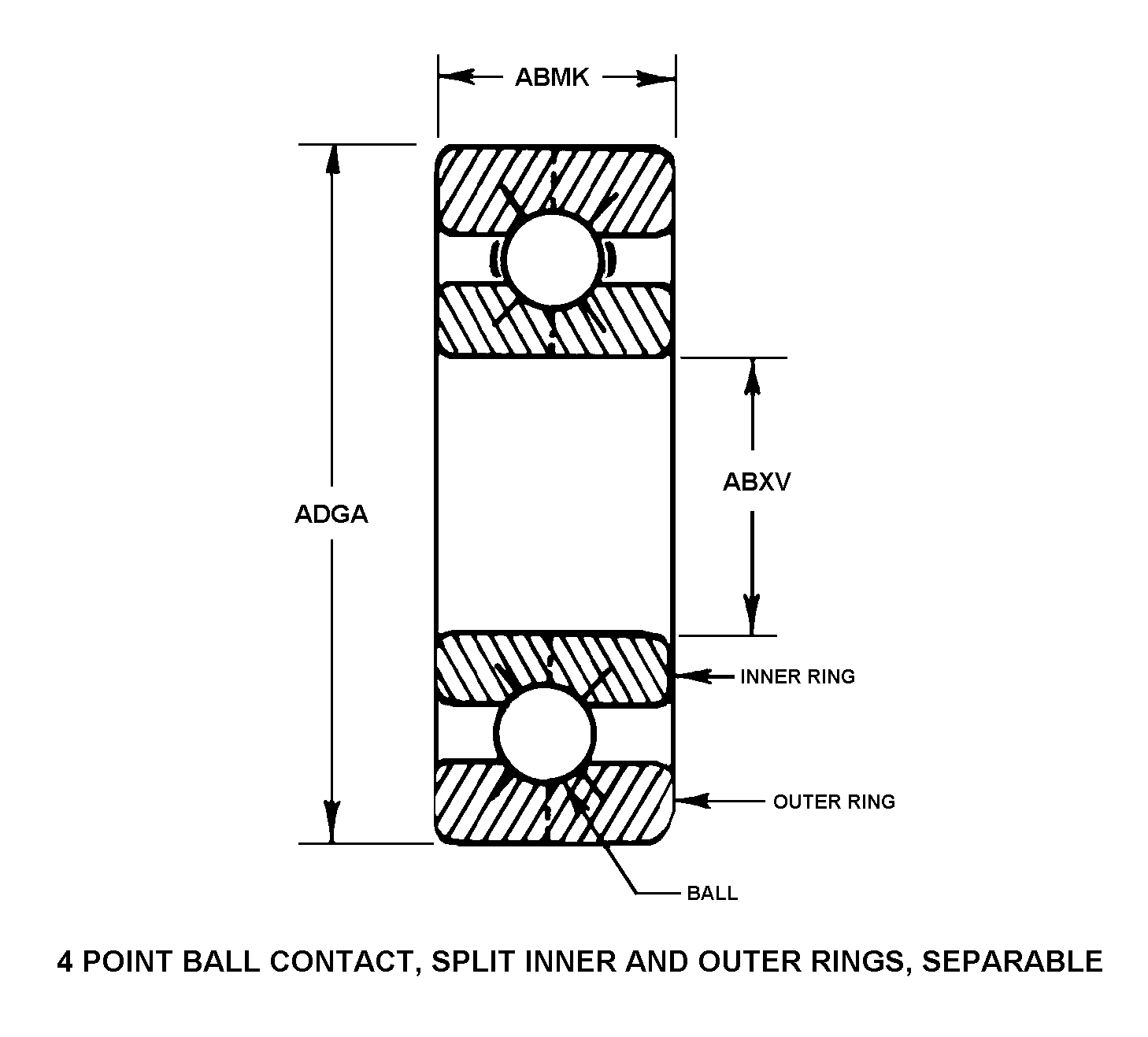

STYLE DESIGNATOR | 40D 4 POINT BALL CONTACT, SPLIT INNER AND OUTER RINGS, SEPARABLE |
OVERALL WIDTH | 13.95 MILLIMETERS MINIMUM AND 14.00 MILLIMETERS MAXIMUM |
BORE DIAMETER | 19.99 MILLIMETERS MINIMUM AND 20.00 MILLIMETERS MAXIMUM |
OVERALL OUTSIDE DIAMETER | 46.989 MILLIMETERS MINIMUM AND 47.000 MILLIMETERS MAXIMUM |
BORE SHAPE | STRAIGHT |
SURFACE FINISH | GROUND |
RETAINER FABRICATION METHOD | MACHINED |
LOAD DIRECTION | RADIAL |
INTERNAL CLEARANCE | 0.045 MILLIMETERS MINIMUM RADIAL AND 0.065 MILLIMETERS MAXIMUM RADIAL |
Restrictions/Controls & Freight Information | NSN 3110-00-452-4035
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 742 | unknown |
Originating Activity Code | 98 | DLIS-LFF Battle Creek, MI 49037-3084 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-452-4035
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
