NSN 3110-00-448-7402 15250B, 00-448-7402, 004487402
Product Details | TAPERED ROLLER BEARING CUP
3110-00-448-7402 An outer component of a tapered roller bearing which provides a contact surface for the rolling elements of the bearing.
Part Alternates: 15250B, 3110-00-448-7402, 00-448-7402, 3110004487402, 004487402
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 MAY 1970 | 00-448-7402 | 00024 ( CUP, TAPERED ROLLER BEARING ) |
Drawings & Photos | NSN 3110-00-448-7402
Cross Reference | NSN 3110-00-448-7402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15250B | 60038 | TIMKEN CORPORATION, THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-448-7402
Related Products | NSN 3110-00-448-7402
Technical Data | NSN 3110-00-448-7402
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

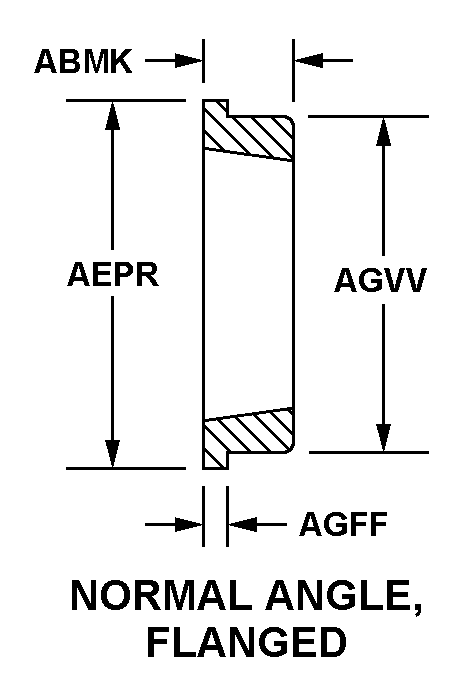

| STYLE DESIGNATOR | 568 NORMAL ANGLE, FLANGED |
| OVERALL WIDTH | 0.6250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.6522 INCHES NOMINAL |
| FLANGE WIDTH | 0.1562 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 2.5000 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.0500 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-448-7402
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
