NSN 3110-00-299-0410 C2402451, C240245-1, CVC708K3L2
Product Details | TRACK ROLLER BALL BEARING
3110-00-299-0410 An antifriction bearing having spherical rolling elements designed for use in a track roller assembly.
Part Alternates: C2402451, C240245-1, CVC708K3L2, K3L2ANG25, K3L2FS160, K3L2FS160A, K3L2MILG3278A, K3L2, 1213AS606, 6005994010, 6005-9940-10, 6026-4180-3, 6026-4255-1, 3110-00-299-0410, 00-299-0410, 3110002990410, 002990410, 602642551, 602641803
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-299-0410 | 00045 ( BEARING, BALL, TRACK ROLLER ) |

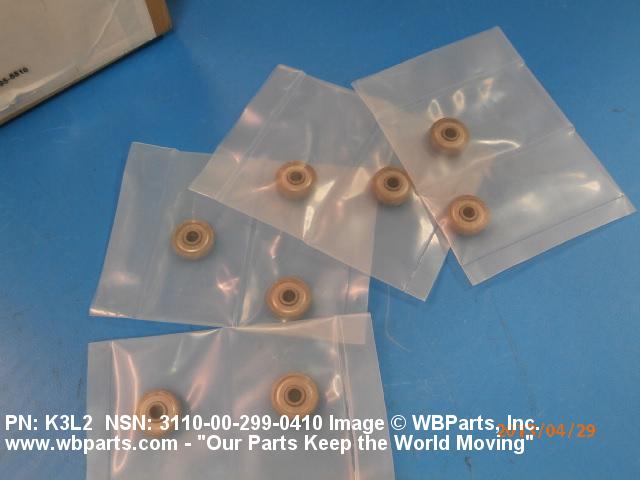

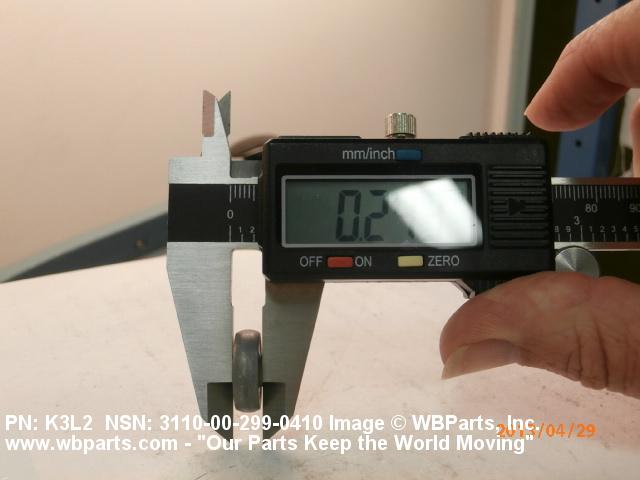

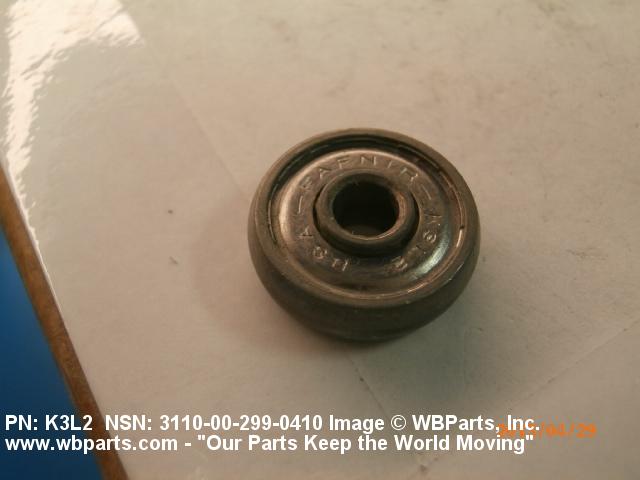

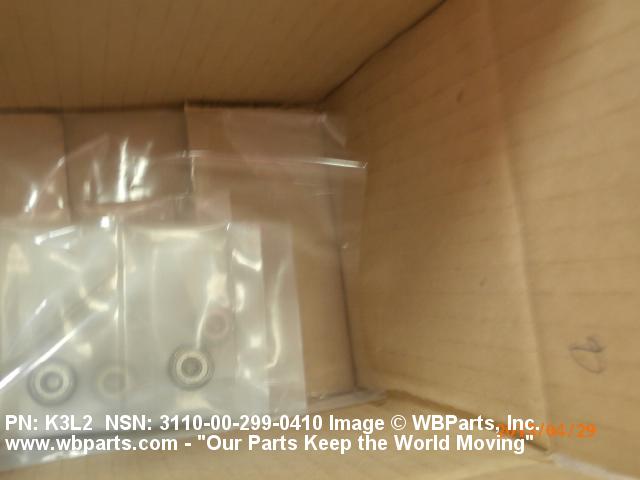

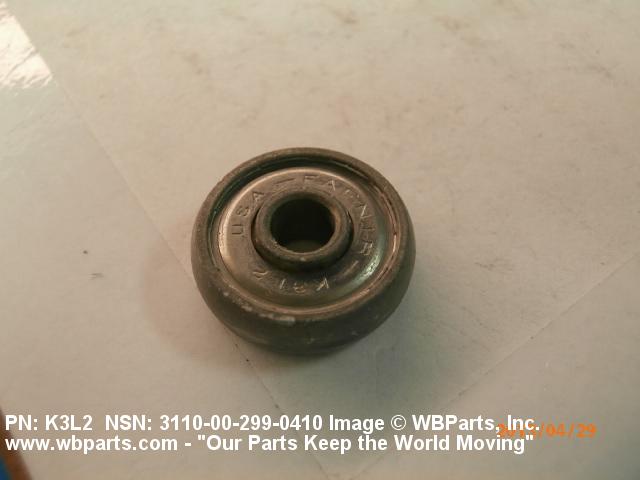

Drawings & Photos | NSN 3110-00-299-0410
Demand History | NSN 3110-00-299-0410
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-299-0410 | 2022-06-161 | 12 | GU |
| K3L2 | 2014-08-232 | 32 | NZ |
| 3110-00-299-0410 | 2013-04-109 | 8 | United States |
| 3110-00-299-0410 | 2013-04-106 | 8 | US |
| 3110-00-299-0410 | 2010-07-200 | 4 | US |
| CVC708K3L2 | 2006-10-304 | 2 | France |
| K3L2FS160 | 2006-05-142 | 12 | US |
Cross Reference | NSN 3110-00-299-0410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1213AS606 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 6005-9940-10 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-4180-3 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-4255-1 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| C240245-1 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| CVC708K3L2 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| K3L2 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K3L2 | 21760 | SCHATZ BEARING CORPORATION |
| K3L2 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| K3L2 | 43991 | FAG BEARINGS CORPORATION |
| K3L2ANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K3L2ANG25 | 21760 | SCHATZ BEARING CORPORATION |
| K3L2ANG25 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| K3L2ANG25 | 43991 | FAG BEARINGS CORPORATION |
| K3L2FS160 | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| K3L2FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K3L2FS160A | 06144 | INDUSTRIAL TECTONICS BEARINGS CORPORATION |
| K3L2FS160A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K3L2MILG3278A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| K3L2MILG3278A | 21760 | SCHATZ BEARING CORPORATION |
| K3L2MILG3278A | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| K3L2MILG3278A | 43991 | FAG BEARINGS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-299-0410
Related Products | NSN 3110-00-299-0410
Technical Data | NSN 3110-00-299-0410
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD |
| STYLE DESIGNATOR | 208 SINGLE ROW RIGID, CROWNED OD INNER RING EXTENDED BOTH SIDES |

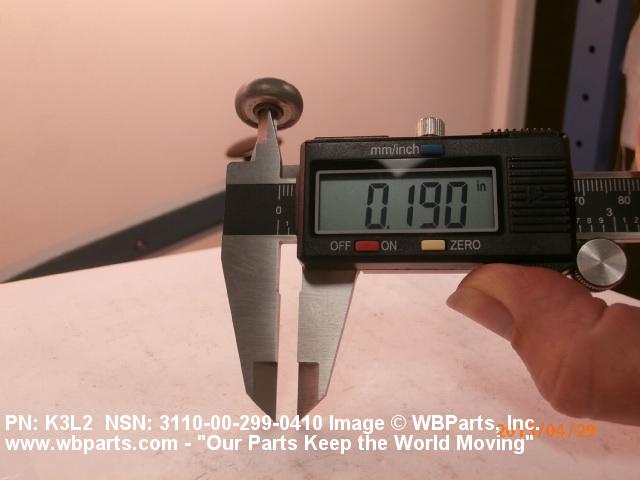

| BORE DIAMETER | 0.1900 INCHES NOMINAL |

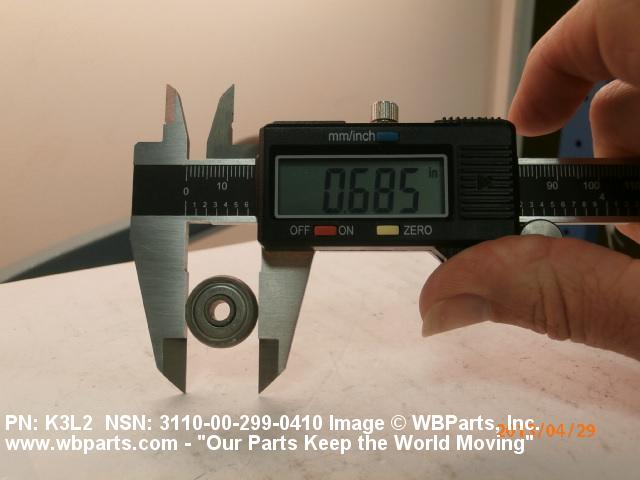

| OVERALL OUTSIDE DIAMETER | 0.6870 INCHES NOMINAL |

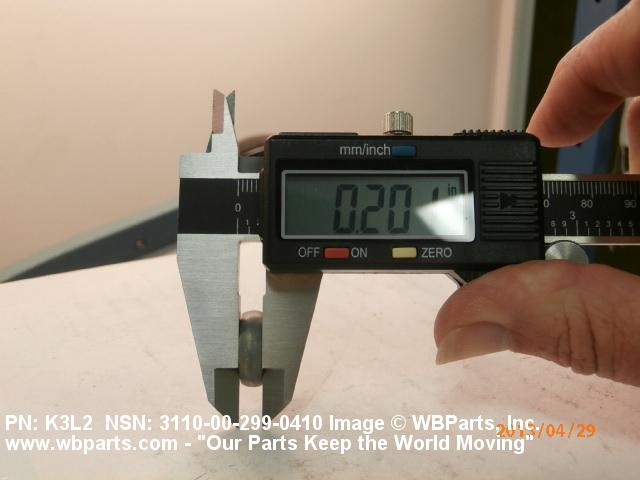

| OUTER RING WIDTH | 0.2030 INCHES NOMINAL |
| INNER RING WIDTH | 0.2450 INCHES NOMINAL |
| CROWN RADIUS | 0.1870 INCHES NOMINAL |
| LUBRICATION MATERIAL | LUBRICANT |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| RETAINER FABRICATION METHOD | MACHINED |
| SHIELD QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 3110-00-299-0410
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-299-0410
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
