NSN 3110-00-294-9596 R105D4C26A1, 105KS81, 23030560
Product Details | ANNULAR BALL BEARING
3110-00-294-9596 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: R105D4C26A1, 105KS81, 23030560, 23058597, 3L05DX1273, 3L05DX1709C09, 450939, 678427, 6784717, 6784727, 3110-00-294-9596, 00-294-9596, 3110002949596, 002949596
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-294-9596 | 00014 ( BEARING, BALL, ANNULAR ) |

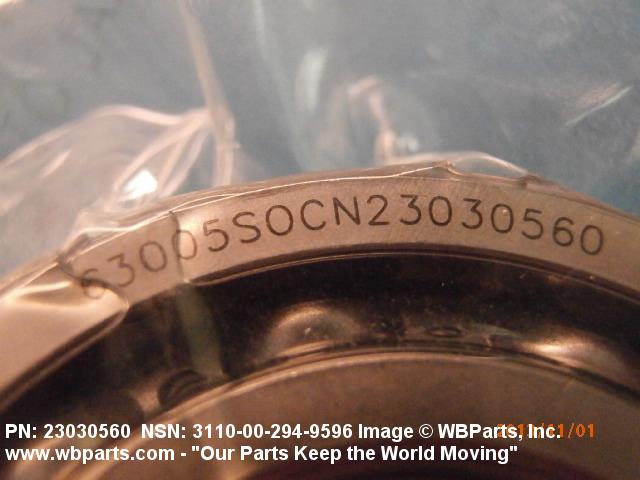

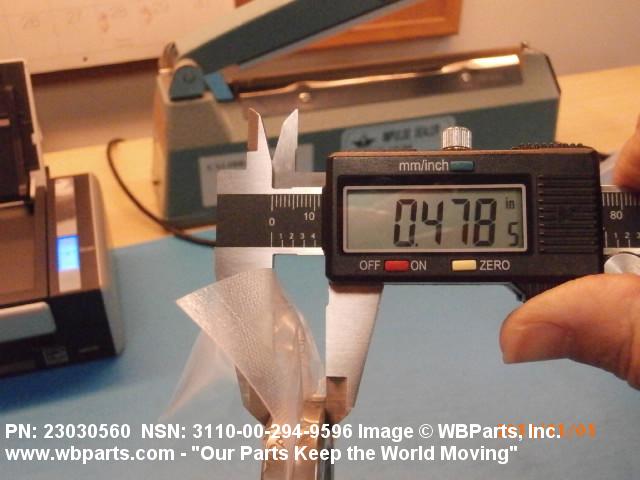

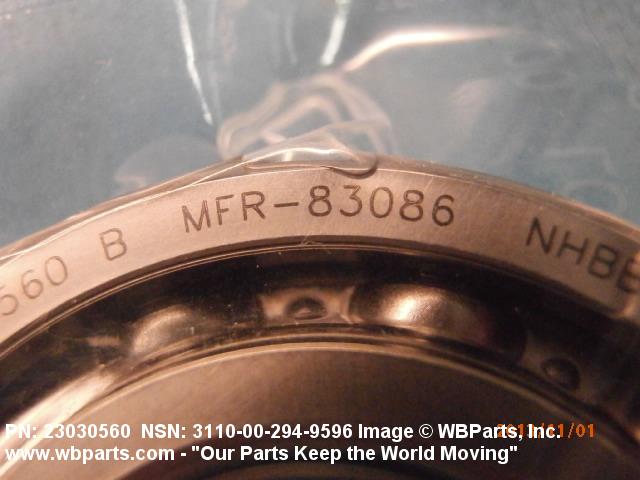

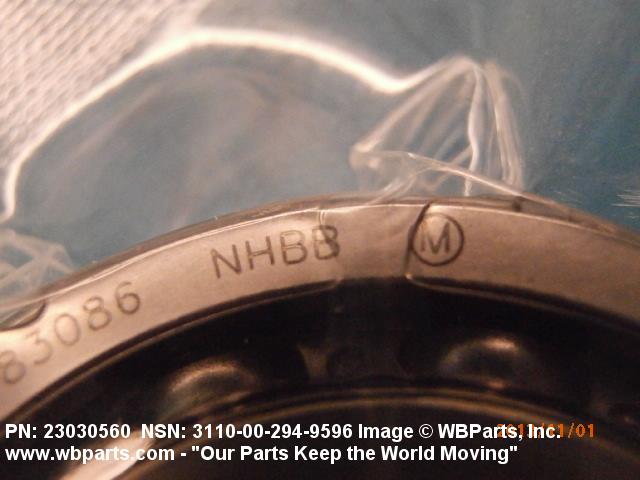

Drawings & Photos | NSN 3110-00-294-9596
Demand History | NSN 3110-00-294-9596
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23030560 | 2022-12-360 | 75 | DIBBS |
| 23030560 | 2022-11-324 | 115 | DIBBS |
| 3110-00-294-9596 | 2020-10-304 | 1 | DIBBS-RFPs |
| 3110-00-294-9596 | 2018-09-270 | 1 | DIBBS-RFPs |
| 6784727 | 2018-02-53 | 3 | Argentina |
| 6784727 | 2016-03-67 | 1 | Argentina |
| 6784727 | 2014-11-309 | 7 | Argentina |
| 6784727 | 2013-10-289 | 6 | United States |
| 3110-00-294-9596 | 2013-09-260 | 1 | DIBBS-RFPs |
| 6784727 | 2013-08-231 | 6 | United States |
| 3110-00-294-9596 | 2013-04-112 | 748 | DIBBS |
| 3110-00-294-9596 | 2012-12-352 | 267 | DIBBS |
| 3110-00-294-9596 | 2011-10-276 | 479 | DIBBS |
| 3110-00-294-9596 | 2011-08-228 | 611 | DIBBS |
| 3110-00-294-9596 | 2011-06-160 | 478 | DIBBS |
| 3110-00-294-9596 | 2011-04-102 | 543 | DIBBS |
| 3110-00-294-9596 | 2010-07-209 | 489 | DIBBS |
| 3110-00-294-9596 | 2010-01-04 | 760 | DIBBS |
| 3110-00-294-9596 | 2008-11-312 | 20 | US |
| 3110-00-294-9596 | 2008-01-16 | 982 | DIBBS |
| 3110-00-294-9596 | 2008-01-15 | 982 | DIBBS |
| 3110-00-294-9596 | 2007-04-103 | 336 | DIBBS |
Cross Reference | NSN 3110-00-294-9596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105KS81 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 23030560 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 23030560 | 63005 | ROLLS-ROYCE CORPORATION |
| 23030560 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| 23058597 | 63005 | ROLLS-ROYCE CORPORATION |
| 3L05DX1273 | 24617 | GENERAL MOTORS CORP |
| 3L05DX1273 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 3L05DX1709C09 | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| 450939 | 52676 | SKF USA INC. |
| 678427 | 24617 | GENERAL MOTORS CORP |
| 6784717 | 63005 | ROLLS-ROYCE CORPORATION |
| 6784717 | 73342 | ALLISON TRANSMISSION, INC. |
| 6784727 | 24617 | GENERAL MOTORS CORP |
| 6784727 | 63005 | ROLLS-ROYCE CORPORATION |
| 6784727 | 73342 | ALLISON TRANSMISSION, INC. |
| R105D4C26A1 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-294-9596
Related Products | NSN 3110-00-294-9596
Technical Data | NSN 3110-00-294-9596
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.4674 INCHES MINIMUM AND 0.4724 INCHES MAXIMUM |
| BORE DIAMETER | 0.9839 INCHES MINIMUM AND 0.9843 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.8499 INCHES MINIMUM AND 1.8504 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL CLEARANCE | 0.0001 INCHES MINIMUM RADIAL AND 0.0004 INCHES MAXIMUM RADIAL AND 0.0030 INCHES MINIMUM AXIAL AND 0.0045 INCHES MAXIMUM AXIAL |
| SPECIAL FEATURES | INTERNAL CLEARANCE MEASURED UNDER 3 LB LOAD |
| MANUFACTURERS CODE | 63005 |
| MFR SOURCE CONTROLLING REFERENCE | 23030560 |
Restrictions/Controls & Freight Information | NSN 3110-00-294-9596
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-294-9596
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
