NSN 3110-00-293-8447 6183, 00-293-8447, 002938447
Product Details | ANNULAR BALL BEARING
3110-00-293-8447 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: 6183, 3110-00-293-8447, 00-293-8447, 3110002938447, 002938447
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-293-8447 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-293-8447
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-293-8447
Technical Data | NSN 3110-00-293-8447
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440C BALL STEEL BAND STEEL COMP E50100 OR STEEL COMP E51100 OR STEEL COMP E52100 CONE STEEL COMP E50100 OR STEEL COMP E51100 OR STEEL COMP E52100 OUTER RACE |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE J405 ASSN STD SINGLE MATERIAL RESPONSE BALL HV GA SOFT STL MFR REF SINGLE MATERIAL RESPONSE BAND SAE J404 ASSN STD ALL MATERIAL RESPONSES CONE SAE J404 ASSN STD ALL MATERIAL RESPONSES OUTER RACE |

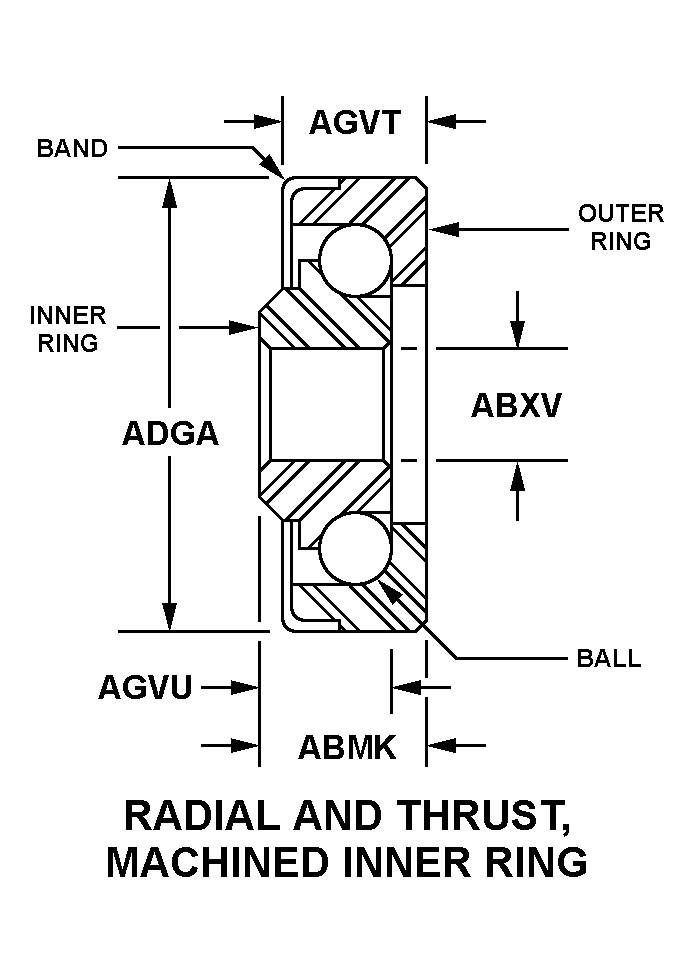

| STYLE DESIGNATOR | 76 RADIAL AND THRUST, MACHINED INNER RING |
| OVERALL WIDTH | 0.5525 INCHES MINIMUM AND 0.5725 INCHES MAXIMUM |
| BORE DIAMETER | 0.7500 INCHES MINIMUM AND 0.7550 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.6875 INCHES MINIMUM AND 1.6925 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4678 INCHES MINIMUM AND 0.4698 INCHES MAXIMUM |
| INNER RING WIDTH | 0.4615 INCHES MINIMUM AND 0.4635 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| CONTACT ANGLE | 25.0 DEGREES MAXIMUM |
| III FUNCTIONAL DESCRIPTION | COMBINATION UNGROUND RADIAL AND THRUST LOAD TO 1000.0 RPM |
| III SUPPLEMENTARY FEATURES | FULL BALL TYPE TURNED CONE AND PRESSED RACE |
Restrictions/Controls & Freight Information | NSN 3110-00-293-8447
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
