NSN 3110-00-293-8323 DP8A3, DP8A3ANG25, DP8A3FS10125
Product Details | TRACK ROLLER BALL BEARING
3110-00-293-8323 An antifriction bearing having spherical rolling elements designed for use in a track roller assembly.
Part Alternates: DP8A3, DP8A3ANG25, DP8A3FS10125, DP8A3FS10132, DP8A3FS160, DP8A3MILG3278, 3110-00-293-8323, 00-293-8323, 3110002938323, 002938323
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-293-8323 | 00045 ( BEARING, BALL, TRACK ROLLER ) |

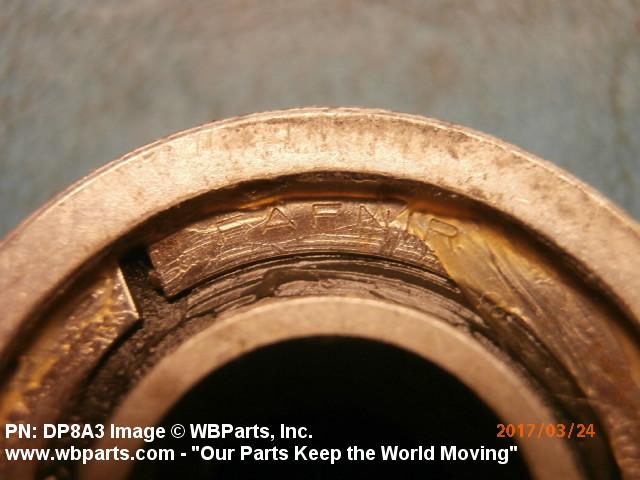

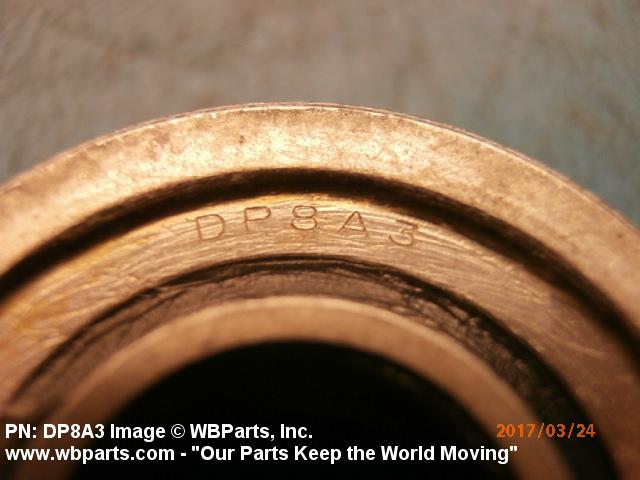

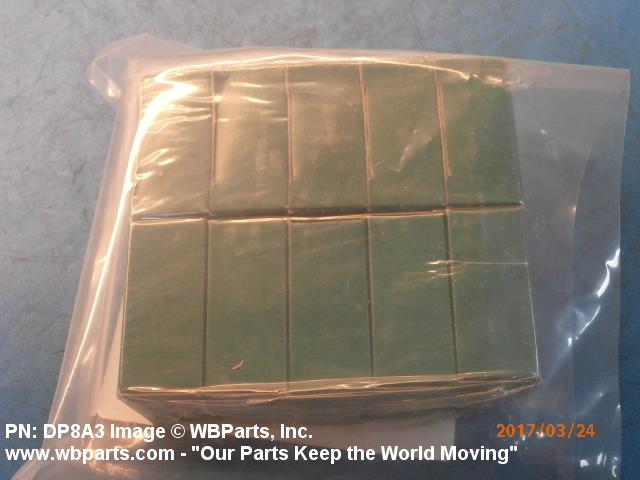

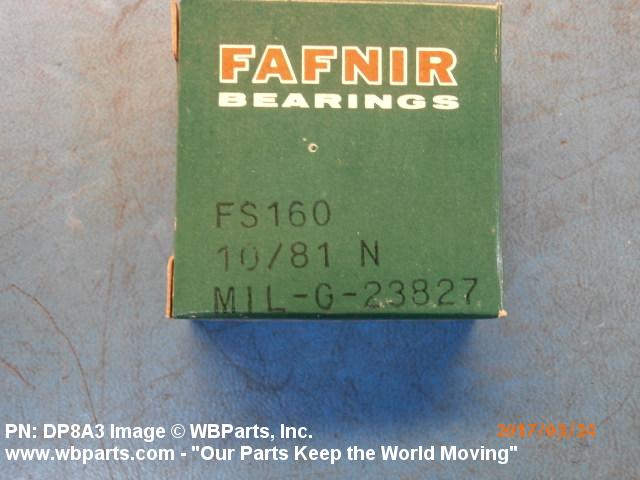

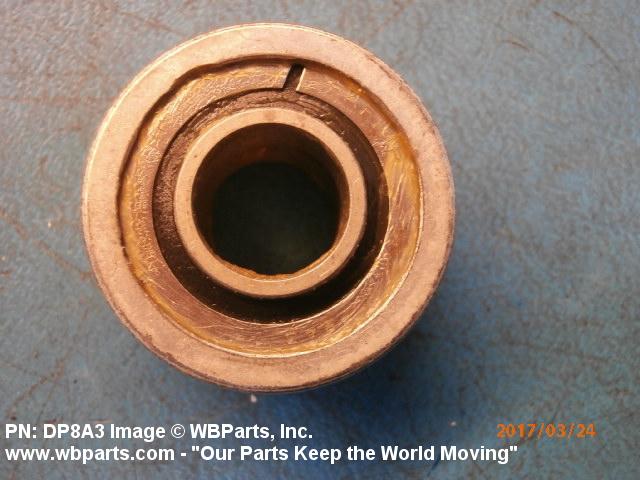

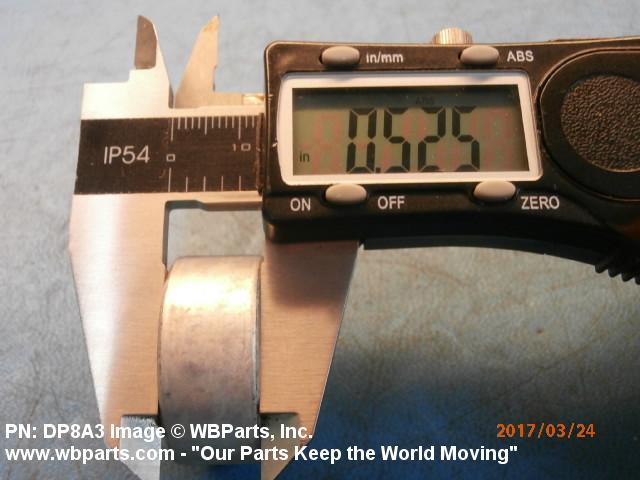

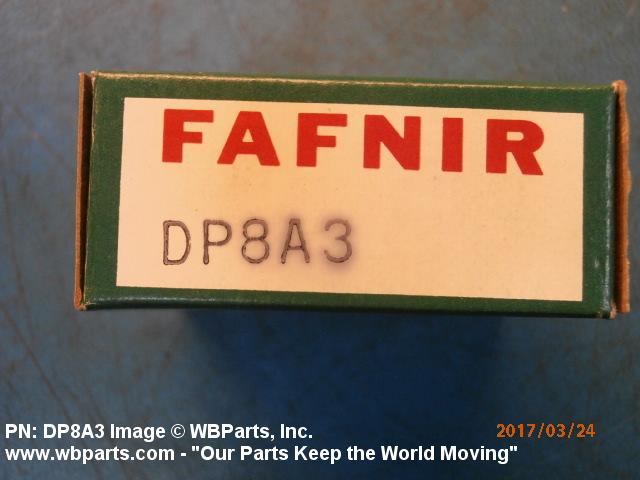

Drawings & Photos | NSN 3110-00-293-8323
Demand History | NSN 3110-00-293-8323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DP8A3 | 2017-05-121 | 3 | Switzerland |
| DP8A3 | 2017-03-62 | 10 | Switzerland |
Cross Reference | NSN 3110-00-293-8323
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DP8A3 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| DP8A3ANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3ANG25 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| DP8A3FS10125 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3FS10125 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| DP8A3FS10132 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3FS10132 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| DP8A3FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3FS160 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| DP8A3MILG3278 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| DP8A3MILG3278 | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-293-8323
Related Products | NSN 3110-00-293-8323
Technical Data | NSN 3110-00-293-8323
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP E52100 OUTER RING RUBBER SYNTHETIC SEAL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |

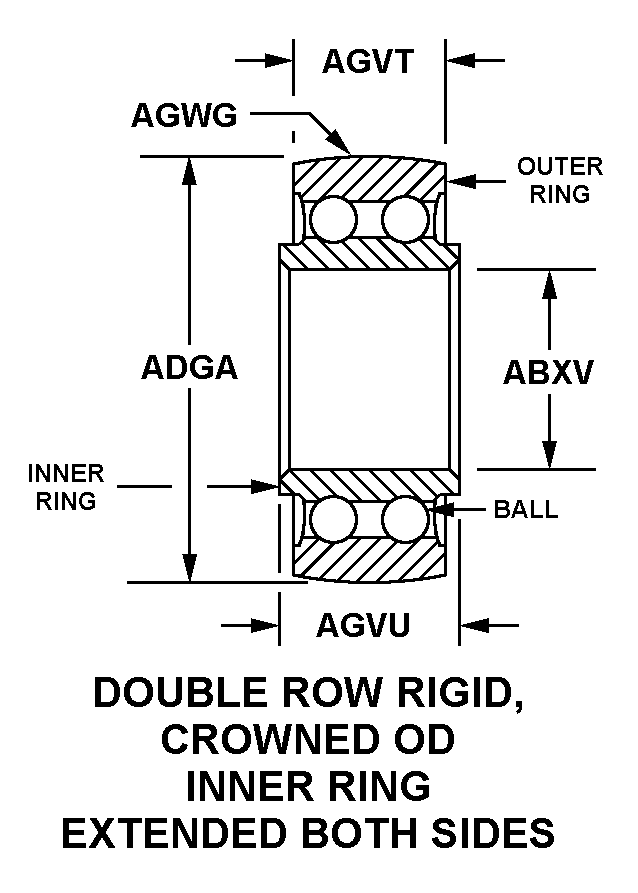

| STYLE DESIGNATOR | 210 DOUBLE ROW RIGID, CROWNED OD INNER RING ENTENDED BOTH SIDES |

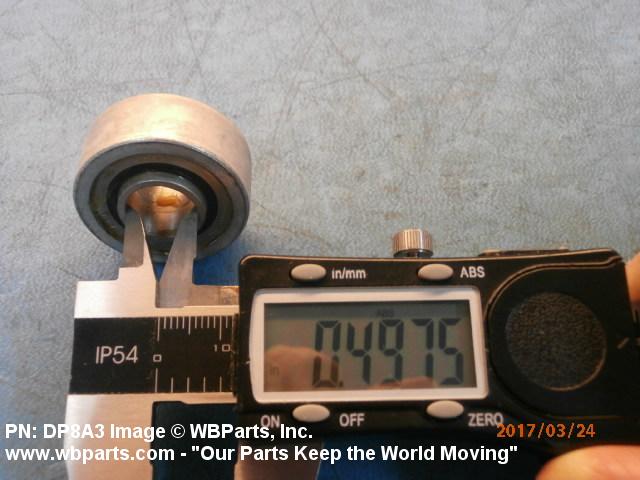

| BORE DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

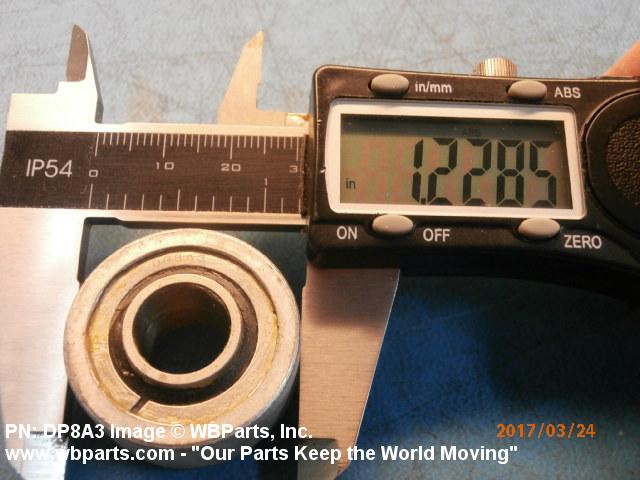

| OVERALL OUTSIDE DIAMETER | 1.2200 INCHES MINIMUM AND 1.2250 INCHES MAXIMUM |

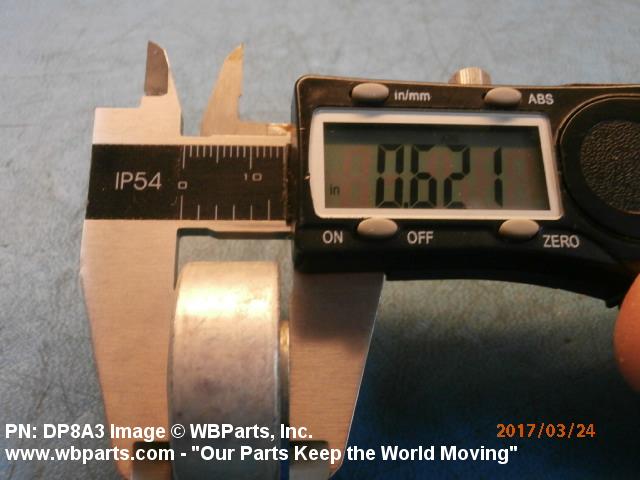

| OUTER RING WIDTH | 0.5270 INCHES NOMINAL |
| INNER RING WIDTH | 0.6200 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |
| CROWN RADIUS | 0.5150 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| SPECIAL FEATURES | INWARDLY CONVERGENT CONTACT ANGLE |
Restrictions/Controls & Freight Information | NSN 3110-00-293-8323
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-293-8323
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
