Product Details | ANNULAR BALL BEARING

3110-00-277-0036 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: DW5-5, GD5M28, GD5M28C1, GD5M28C1FS160, GD5M28C1MILG3278, GD5M28FS160, DW55, 3110-00-277-0036, 00-277-0036, 3110002770036, 002770036

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1963 00-277-0036

Drawings & Photos | NSN 3110-00-277-0036


Demand History | NSN 3110-00-277-0036

Part Number Request Date QTY Origin
3110-00-277-0036 2024-10-282 50 Canada
3110-00-277-0036 2024-09-267 70 Canada
3110-00-277-0036 2024-09-263 72 Canada
3110-00-277-0036 2024-09-262 10 Canada
GD5M28C1 2024-09-255 10 Canada
GD5M28C1 2024-08-234 10 Canada
GD5M28C1 2024-07-190 56 Canada
GD5M28C1 2024-06-179 56 Canada
3110-00-277-0036 2024-01-10 24 us
GD5M28C1 2023-11-326 20 Canada
GD5M28C1 2023-08-226 30 LV
3110-00-277-0036 2023-07-207 40 US
GD5M28C1 2022-09-264 60 us
3110-00-277-0036 2022-08-235 1 United States
3110-00-277-0036 2022-07-206 10 United States
GD5M28C1 2022-05-146 40 Canada
3110-00-277-0036 2022-02-48 680 Malaysia
3110-00-277-0036 2022-02-47 680 Malaysia
3110-00-277-0036 2022-01-31 20 CA
3110-00-277-0036 2022-01-11 50 CA
3110-00-277-0036 2021-11-321 130 Malaysia
GD5M28C1 2021-11-315 50 Canada
3110-00-277-0036 2021-11-307 680 MY
3110-00-277-0036 2021-10-284 130 Malaysia
GD5M28C1 2021-09-267 60 US
GD5M28C1 2021-09-267 80 US
GD5M28C1 2021-09-267 100 US
GD5M28C1 2021-09-267 60 US
3110-00-277-0036 2021-05-150 30 MY
GD5M28C1 2021-05-147 30 Malaysia
3110-00-277-0036 2021-05-146 30 Malaysia
GD5M28C1 2021-05-134 100 Malaysia
GD5M28C1 2021-05-133 100 Malaysia
3110-00-277-0036 2021-05-131 100 Malaysia
3110-00-277-0036 2021-02-42 20 Canada
3110-00-277-0036 2021-02-41 20 Canada
3110-00-277-0036 2020-07-210 2 AE
3110-00-277-0036 2020-07-209 2 AE
GD5M28 2019-01-29 146 DIBBS
GD5M28FS160 2019-01-29 146 DIBBS
3110-00-277-0036 2018-12-362 1 DIBBS-RFPs
3110-00-277-0036 2017-05-143 16 United States
3110-00-277-0036 2017-05-138 16 United States
3110-00-277-0036 2017-03-86 4 US
3110-00-277-0036 2016-08-239 3 Malaysia
GD5M28C1 2016-08-237 6 Malaysia
3110-00-277-0036 2016-08-232 3 Malaysia
GD5M28C1 2014-06-164 16 PE
3110-00-277-0036 2014-06-154 50 United States
3110-00-277-0036 2014-01-28 1 DIBBS-RFPs
GD5M28FS160 2011-08-229 24 AU
GD5M28FS160 2011-03-90 2 United States
3110-00-277-0036 2009-04-104 618 DIBBS
3110-00-277-0036 2009-03-84 305 DIBBS
GD5M28C1 2009-03-78 36 us
GD5M28C1 2009-02-37 36 us
3110-00-277-0036 2008-11-316 56 US
GD5M28FS160 2008-08-228 43 United States
GD5M28FS160 2008-08-221 60 United States
GD5M28FS160 2008-07-186 1 Canada
3110-00-277-0036 2008-06-162 109 DIBBS
3110-00-277-0036 2008-03-67 11 United States
3110-00-277-0036 2007-05-145 121 DIBBS

Cross Reference | NSN 3110-00-277-0036

Part Number Cage Code Manufacturer
DW5-5 38443 SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
GD5M28 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GD5M28 21760 SCHATZ BEARING CORPORATION
GD5M28C1 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GD5M28C1FS160 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GD5M28C1FS160 3NPS1 RBC AIRCRAFT PRODUCTS, INC.
GD5M28C1MILG3278 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GD5M28FS160 21335 TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
GD5M28FS160 3NPS1 RBC AIRCRAFT PRODUCTS, INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-277-0036

Technical Data | NSN 3110-00-277-0036

Characteristic Specifications
MATERIAL STEEL BALL STEEL INNER RING STEEL OUTER RING RUBBER SYNTHETIC SEAL
SURFACE TREATMENT CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES

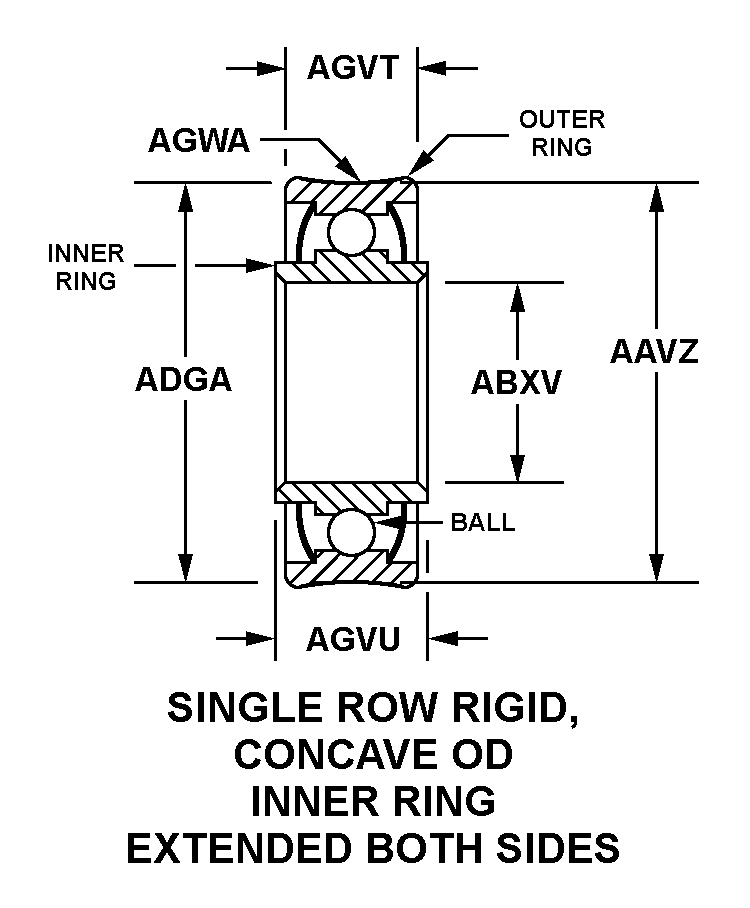

STYLE DESIGNATOR 212 SINGLE ROW RIGID, CONCAVE OD INNER RING EXTENDED BOTH SIDES
