NSN 3110-00-245-4876 JTT87, 139C77572, 139C7757-2
Product Details | NEEDLE ROLLER BEARING
3110-00-245-4876 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: JTT87, 139C77572, 139C7757-2, 3110-00-245-4876, 00-245-4876, 3110002454876, 002454876
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 09 JUN 1973 | 00-245-4876 | 00051 ( BEARING, ROLLER, NEEDLE ) |
Drawings & Photos | NSN 3110-00-245-4876
Demand History | NSN 3110-00-245-4876
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-245-4876 | 2013-09-246 | 51 | DIBBS |
| 3110-00-245-4876 | 2013-01-08 | 25 | DIBBS |
| JTT87 | 2007-12-344 | 25 | United States |
| JTT87 | 2007-08-226 | 36 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-245-4876
Related Products | NSN 3110-00-245-4876
Technical Data | NSN 3110-00-245-4876
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL RETAINER STEEL ROD END BODY RUBBER SYNTHETIC SEAL STEEL SHELL |

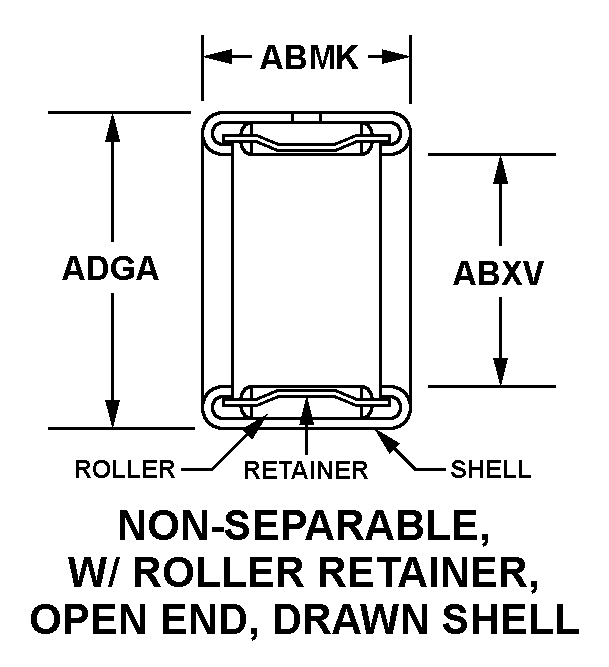

| STYLE DESIGNATOR | 414 NON-SEPARABLE, WITH ROLLER RETAINER, OPEN END, DRAWN SHELL |
| OVERALL WIDTH | 0.4370 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.6875 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | RIGID |
Restrictions/Controls & Freight Information | NSN 3110-00-245-4876
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
