NSN 3110-00-227-2878 MS2446448, MS24464-48, NAS50448
Product Details | NEEDLE ROLLER BEARING
3110-00-227-2878 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS2446448, MS24464-48, NAS50448, NAS504-48, AS24464, 48NBK2068YZP, 48NBK2068YZP2C, 48NBK2068YZPANG25, 3110-00-227-2878, 00-227-2878, 3110002272878, 002272878
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-2878 | 00051 ( BEARING, ROLLER, NEEDLE ) |

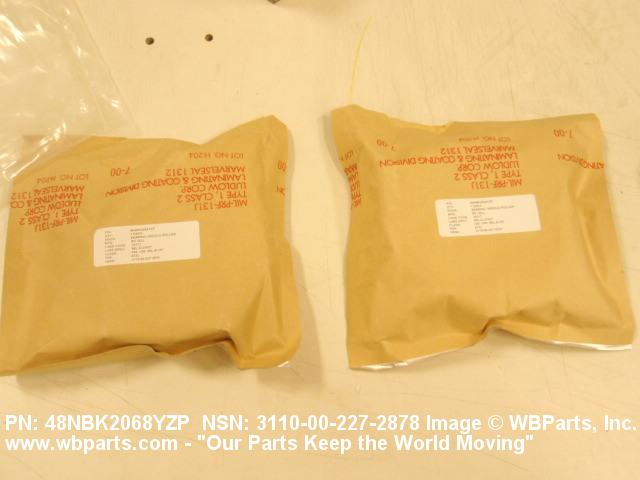

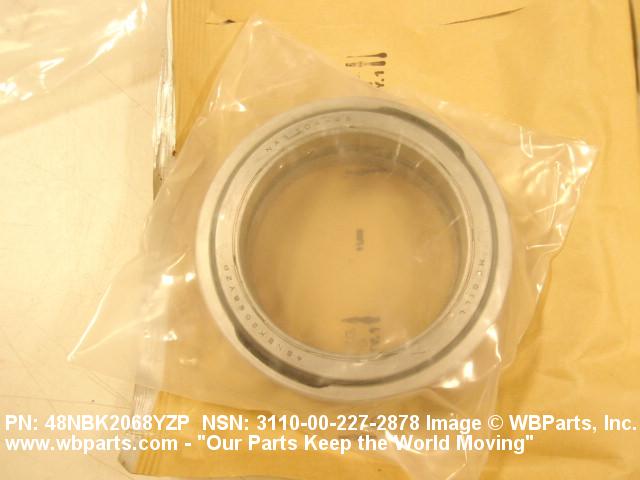

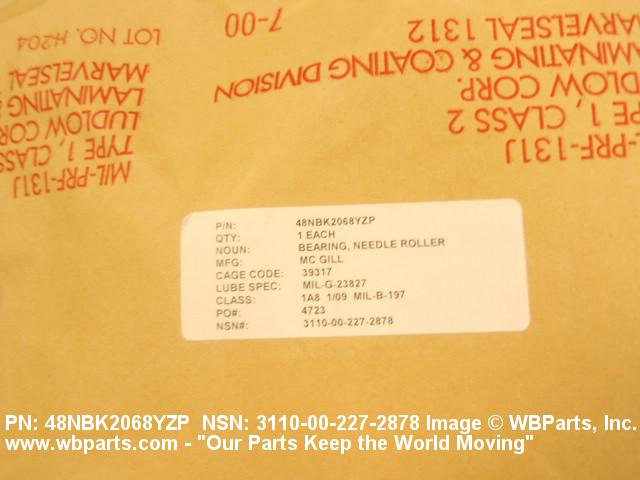

Drawings & Photos | NSN 3110-00-227-2878
Demand History | NSN 3110-00-227-2878
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 48NBK2068YZP | 2024-01-04 | 28 | DIBBS |
| 48NBK2068YZP | 2023-05-130 | 34 | DIBBS |
| 48NBK2068YZP | 2023-05-130 | 72 | DIBBS |
| 48NBK2068YZP | 2023-02-44 | 31 | DIBBS |
| 48NBK2068YZP | 2023-02-44 | 5 | DIBBS |
| 48NBK2068YZP | 2020-07-195 | 31 | DIBBS |
| 48NBK2068YZP | 2020-07-187 | 31 | DIBBS |
| 48NBK2068YZP | 2019-03-90 | 213 | DIBBS |
| 48NBK2068YZP | 2019-02-41 | 40 | DIBBS |
| 3110-00-227-2878 | 2017-10-290 | 1200 | DIBBS |
| 3110-00-227-2878 | 2017-02-37 | 67 | DIBBS |
| 3110-00-227-2878 | 2017-01-10 | 40 | DIBBS |
| 3110-00-227-2878 | 2016-10-301 | 33 | DIBBS |
| 3110-00-227-2878 | 2016-08-242 | 50 | DIBBS |
| 3110-00-227-2878 | 2016-02-54 | 115 | DIBBS |
| 3110-00-227-2878 | 2013-07-185 | 1 | DIBBS-RFPs |
| 3110-00-227-2878 | 2013-06-158 | 64 | DIBBS |
| 3110-00-227-2878 | 2013-04-91 | 129 | DIBBS |
| 3110-00-227-2878 | 2012-07-213 | 0 | DIBBS |
| 3110-00-227-2878 | 2011-08-223 | 30 | DIBBS |
| 48NBK2068YZP | 2011-07-200 | 2 | United States |
| 3110-00-227-2878 | 2011-04-104 | 38 | DIBBS |
| 3110-00-227-2878 | 2011-02-33 | 29 | DIBBS |
| 3110-00-227-2878 | 2010-10-300 | 65 | DIBBS |
| 3110-00-227-2878 | 2009-12-349 | 58 | DIBBS |
| 3110-00-227-2878 | 2009-09-244 | 42 | DIBBS |
| 48NBK2068YZP | 2009-01-21 | 2 | United States |
| 3110-00-227-2878 | 2008-10-281 | 99 | DIBBS |
| 3110-00-227-2878 | 2008-02-50 | 67 | DIBBS |
| 3110-00-227-2878 | 2008-01-31 | 56 | DIBBS |
| 3110-00-227-2878 | 2007-06-180 | 48 | DIBBS |
Cross Reference | NSN 3110-00-227-2878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 48NBK2068YZP | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 48NBK2068YZP | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 48NBK2068YZP2C | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 48NBK2068YZP2C | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 48NBK2068YZPANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| AS24464 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24464-48 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS24464-48 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS504-48 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-227-2878
Related Products | NSN 3110-00-227-2878
Technical Data | NSN 3110-00-227-2878
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| BORE DIAMETER | 2.9993 INCHES MINIMUM AND 3.0000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 4.2492 INCHES MINIMUM AND 4.2500 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.0440 INCHES MINIMUM AND 1.0490 INCHES MAXIMUM |
| INNER RING WIDTH | 1.2450 INCHES MINIMUM AND 1.2500 INCHES MAXIMUM |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| FEATURES PROVIDED | ALIGNING RING |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN OUTER AND INNER RINGS |
Restrictions/Controls & Freight Information | NSN 3110-00-227-2878
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-227-2878
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
