NSN 3110-00-227-2865 MS244635, MS24463-5, MS244635G

Product Details | NEEDLE ROLLER BEARING

3110-00-227-2865 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.

Part Alternates: MS244635, MS24463-5, MS244635G, MS24463-5G, NAS5045, NAS504-5, NAS5045MILG3278, NAS504-5MILG3278, AS24463, BACB10CE5, 244635, 24463-5, 5045, 504-5, 5NBE7172P, 5NBE717ZP, 5NBE717ZP2C, 5NBE717ZPANG25, 5NBE717ZPMILG3278A, 3110-00-227-2865, 00-227-2865, 3110002272865, 002272865

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-227-2865	00051 ( BEARING, ROLLER, NEEDLE )

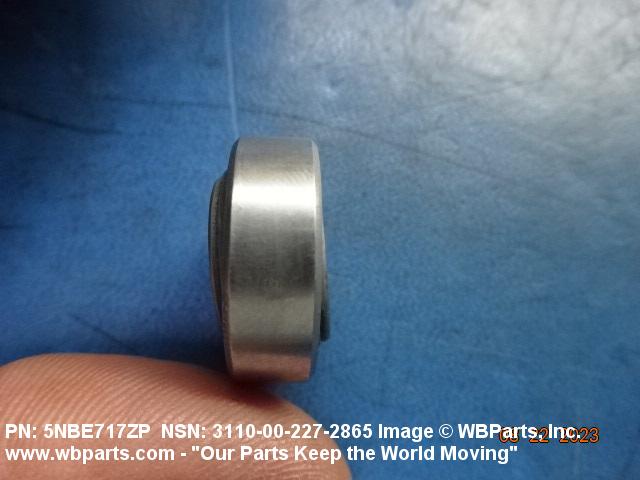

Drawings & Photos | NSN 3110-00-227-2865

Part Number	Request Date	QTY	Origin
3110-00-227-2865	2024-10-303	56	DIBBS
BACB10CE5	2024-06-166	1	United States
3110-00-227-2865	2024-06-162	40	DIBBS
BACB10CE5	2024-05-141	3	United States
3110-00-227-2865	2024-05-124	2	US
BACB10CE5	2024-04-96	1	United States
BACB10CE5	2024-03-87	3	United States
5NBE717ZP	2023-07-207	16	us
5NBE717ZP	2021-12-349	6	us
3110-00-227-2865	2021-06-166	12	US
3110-00-227-2865	2021-02-56	103	US
3110-00-227-2865	2020-10-304	1	DIBBS-RFPs
3110-00-227-2865	2020-10-297	310	DIBBS
5NBE717ZP	2020-10-289	16	South Africa
3110-00-227-2865	2020-10-289	310	DIBBS
3110-00-227-2865	2020-10-281	310	DIBBS
3110-00-227-2865	2020-08-238	50	US
3110-00-227-2865	2020-07-211	8	DIBBS
3110-00-227-2865	2020-01-09	342	DIBBS
3110-00-227-2865	2019-11-325	342	DIBBS
3110-00-227-2865	2019-11-317	342	DIBBS
3110-00-227-2865	2019-08-213	201	DIBBS
3110-00-227-2865	2018-06-171	113	DIBBS
BACB10CE5	2018-03-66	2	United States
3110-00-227-2865	2017-12-356	81	DIBBS
3110-00-227-2865	2017-12-347	81	DIBBS
3110-00-227-2865	2017-08-229	51	us
5NBE717ZP	2017-01-23	16	South Africa
5NBE717ZP	2016-01-20	50	United States
5NBE717ZP	2016-01-20	100	United States
5NBE717ZP	2016-01-20	200	United States
5NBE717ZP	2013-07-203	100	United States
MS244635G	2011-09-264	320	US
MS244635G	2011-08-243	314	US
MS244635G	2011-06-167	353	US
5NBE717ZP	2011-04-98	2	US
NAS5045	2011-01-31	1	PE
BACB10CE5	2010-08-217	357	United States
BACB10CE5	2010-07-183	100	US
3110-00-227-2865	2009-07-203	227	US
3110-00-227-2865	2008-04-101	5	United States

Cross Reference | NSN 3110-00-227-2865

Part Number	Cage Code	Manufacturer
24463-5	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
504-5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
5NBE7172P	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
5NBE717ZP	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
5NBE717ZP	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
5NBE717ZP	92563	MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION
5NBE717ZP2C	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
5NBE717ZP2C	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
5NBE717ZPANG25	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
5NBE717ZPMILG3278A	60380	TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT
AS24463	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
BACB10CE5	81205	THE BOEING COMPANY DBA BOEING
MS24463-5	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS24463-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24463-5G	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
NAS504-5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS504-5MILG3278	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-227-2865

Compare

Related Products | NSN 3110-00-227-2865

3110-00-227-2866, 3110-00-227-2867, 3110-00-227-2868, 3110-00-227-2869, 3110-00-227-2870

Technical Data | NSN 3110-00-227-2865

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

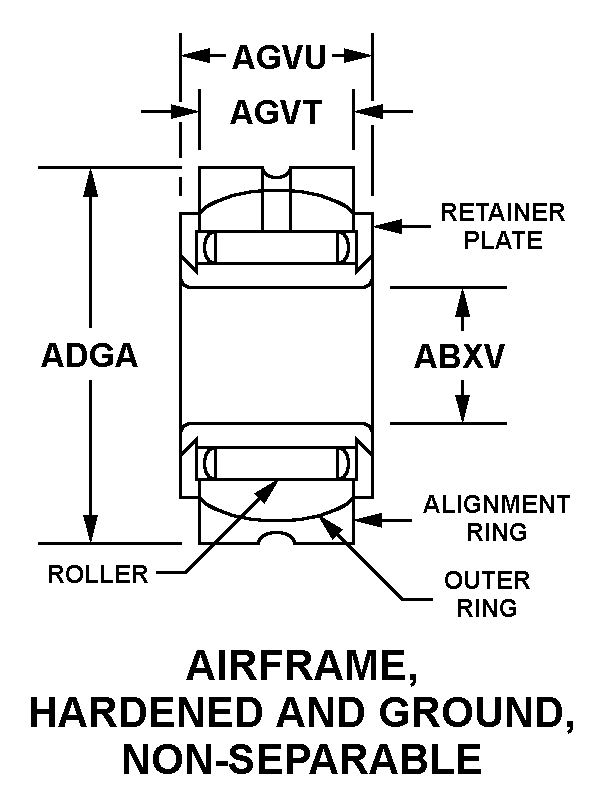

STYLE DESIGNATOR	438 AIRFRAME, HARDENED AND GROUND, NON-SEPARABLE

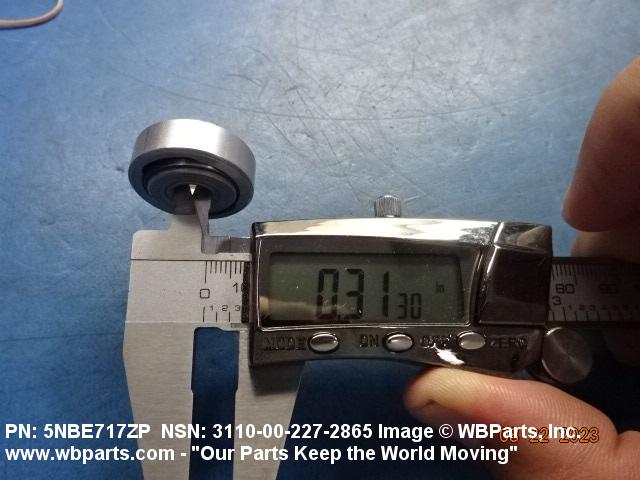

BORE DIAMETER	0.3118 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM

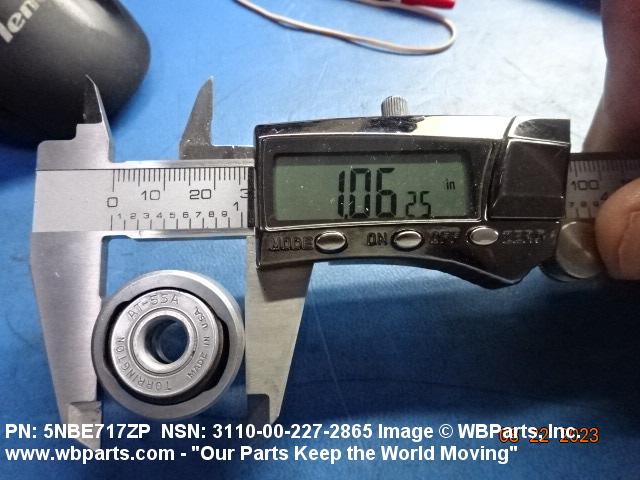

OVERALL OUTSIDE DIAMETER	1.0620 INCHES MINIMUM AND 1.0625 INCHES MAXIMUM

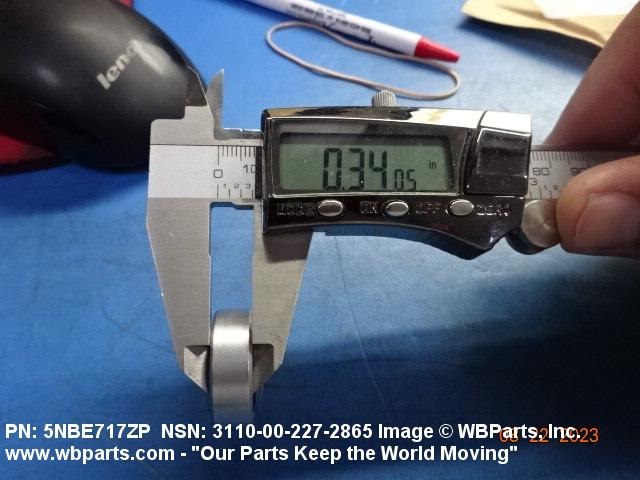

OUTER RING WIDTH	0.3390 INCHES MINIMUM AND 0.3440 INCHES MAXIMUM

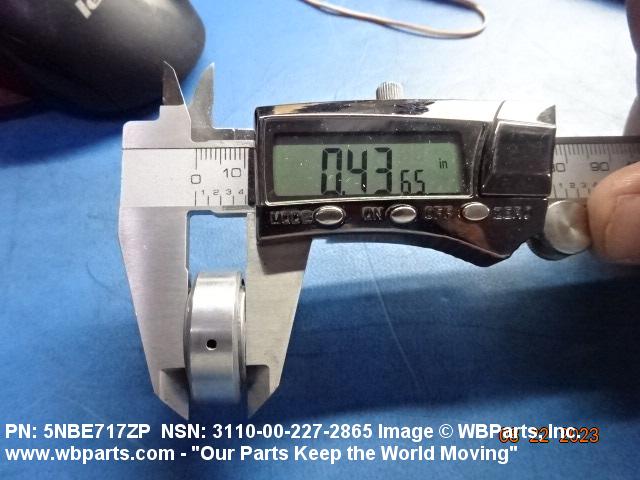

INNER RING WIDTH	0.4320 INCHES MINIMUM AND 0.4370 INCHES MAXIMUM
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	EXTERNAL
FEATURES PROVIDED	ALIGNING RING

Restrictions/Controls & Freight Information | NSN 3110-00-227-2865

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-227-2865

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
