NSN 3110-00-227-2803 MS21438106, MS21438-106, MS244656
Product Details | NEEDLE ROLLER BEARING
3110-00-227-2803 A single or multiple-row antifriction bearing used with or without inner or outer races characterized by relatively small size rollers usually not ranging above 0.250 inch (6.35mm) diameter and generally longer in length in relation to diameter.
Part Alternates: MS21438106, MS21438-106, MS244656, MS24465-6, NAS5026, NAS502-6, NAS5026MILG3278, NAS502-6MILG3278, AS21438, BACB10B132, BACB10BN06, ATF3, 1FA1305530, 1SE3741, 244656, 24465-6, 5026, 502-6, 6HDANG25, 6HDMILG3278A, 6NBF817YJ, 6NBF817YJ086, 6NBF817YJANG25, 8035005, 3110-00-227-2803, 00-227-2803, 3110002272803, 002272803
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-227-2803 | 00051 ( BEARING, ROLLER, NEEDLE ) |

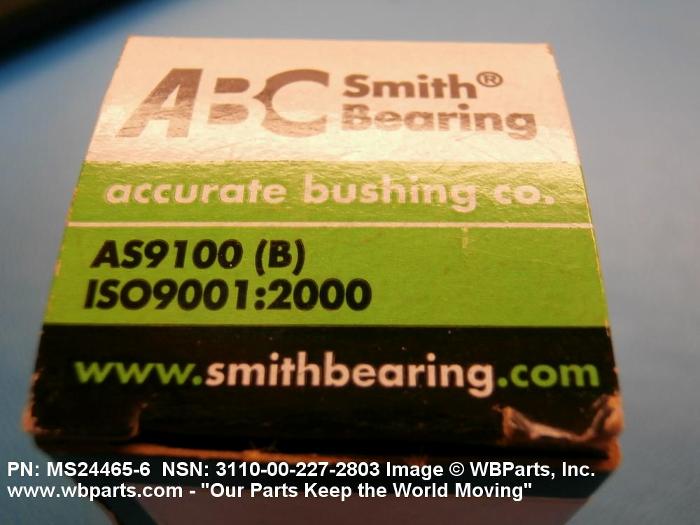

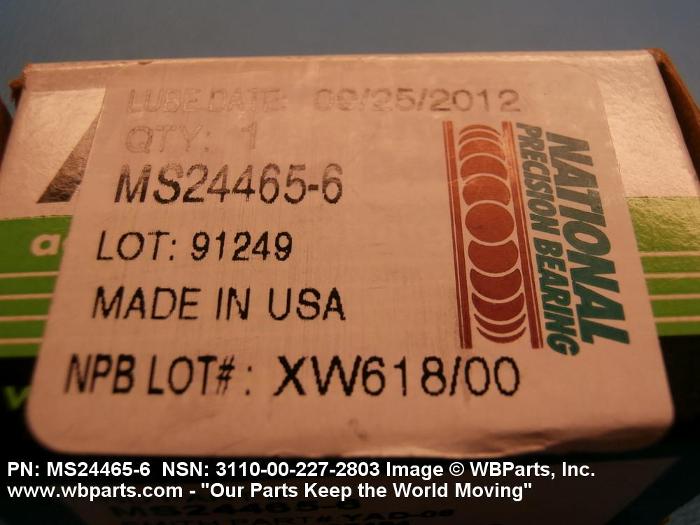

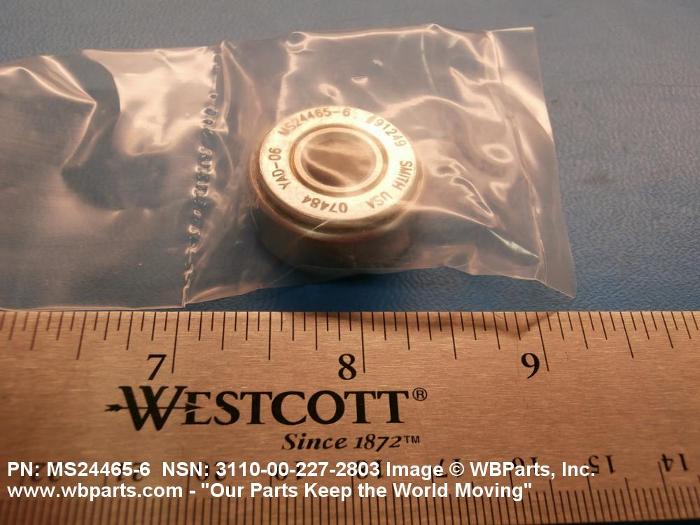

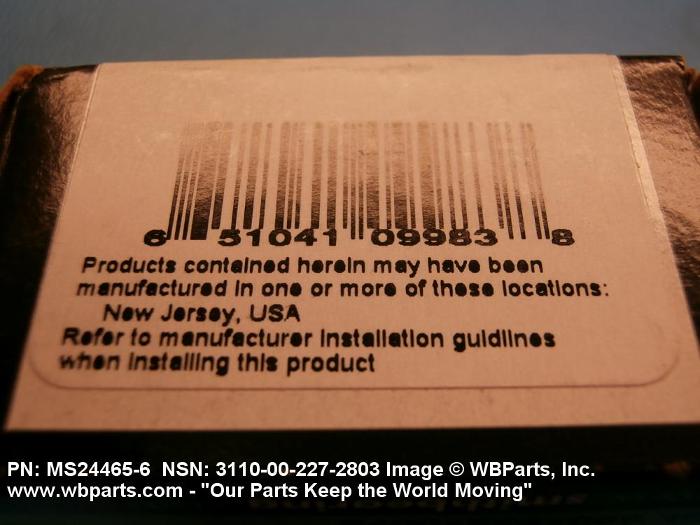

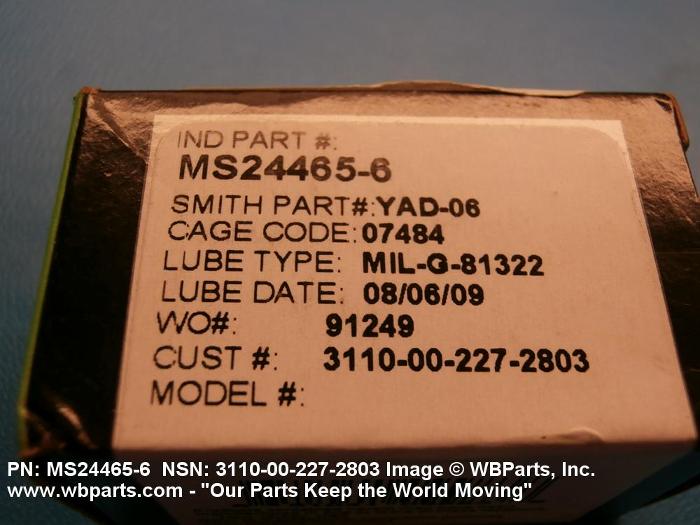

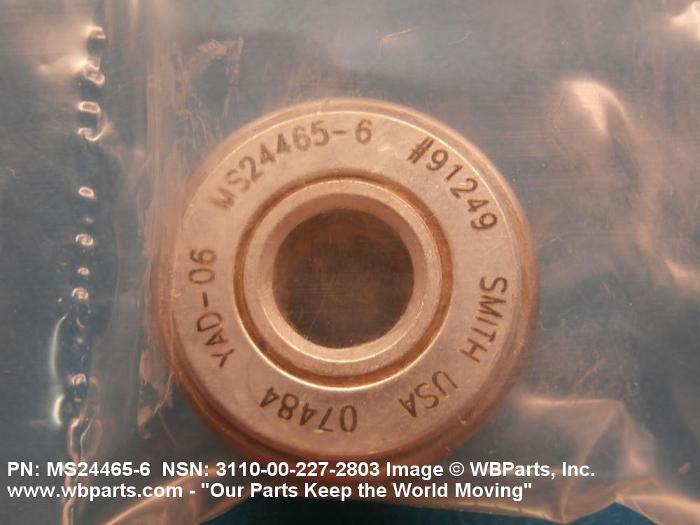

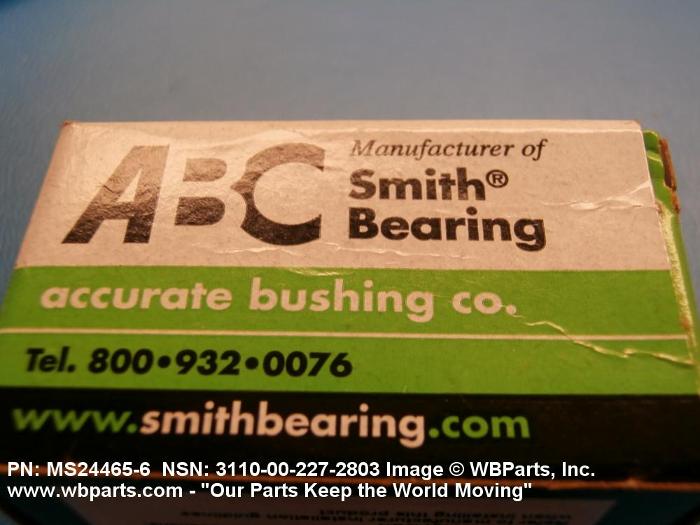

Drawings & Photos | NSN 3110-00-227-2803
Demand History | NSN 3110-00-227-2803
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-227-2803 | 2024-04-99 | 2608 | DIBBS |
| 3110-00-227-2803 | 2024-03-91 | 2608 | DIBBS |
| 3110-00-227-2803 | 2022-09-245 | 4 | South Korea |
| 3110-00-227-2803 | 2021-03-71 | 1 | DIBBS-RFPs |
| MS21438106 | 2019-12-336 | 2 | Indonesia |
| 3110-00-227-2803 | 2017-03-82 | 957 | DIBBS |
| 3110-00-227-2803 | 2017-01-23 | 1 | DIBBS-RFPs |
| 3110-00-227-2803 | 2016-12-365 | 677 | DIBBS |
| 3110-00-227-2803 | 2016-10-286 | 571 | DIBBS |
| 3110-00-227-2803 | 2016-09-259 | 570 | DIBBS |
| 3110-00-227-2803 | 2015-09-263 | 1207 | DIBBS |
| 3110-00-227-2803 | 2013-02-37 | 1444 | DIBBS |
| 3110-00-227-2803 | 2013-01-08 | 1226 | DIBBS |
| 6NBF817YJ | 2012-11-310 | 35 | |
| MS244656 | 2012-09-262 | 55 | United States |
| MS244656 | 2012-09-257 | 55 | United States |
| 3110-00-227-2803 | 2012-09-249 | 249 | DIBBS |
| BACB10B132 | 2012-07-202 | 86 | United States |
| 3110-00-227-2803 | 2012-07-187 | 366 | DIBBS |
| 3110-00-227-2803 | 2012-05-130 | 106 | DIBBS |
| BACB10B132 | 2012-01-17 | 55 | United States |
| 3110-00-227-2803 | 2011-10-298 | 0 | DIBBS |
| 6NBF817YJ | 2010-06-173 | 300 | Italy |
| 3110-00-227-2803 | 2010-06-158 | 300 | Italy |
| 6NBF817YJ | 2010-04-109 | 71 | Italy |
| MS244656 | 2010-03-62 | 62 | US |
| 6NBF817YJ | 2010-02-55 | 300 | US |
| 6NBF817YJ | 2009-10-279 | 71 | Italy |
| 3110-00-227-2803 | 2008-11-325 | 841 | DIBBS |
| 3110-00-227-2803 | 2008-09-268 | 10 | US |
| BACB10B132 | 2008-05-151 | 14 | United States |
| MS244656 | 2007-12-344 | 56 | US |
| 6NBF817YJ | 2007-05-135 | 50 | US |
| 3110-00-227-2803 | 2007-01-29 | 417 | DIBBS |
| 6NBF817YJ | 2006-02-32 | 25 | US |
| 6NBF817YJ | 2006-01-09 | 24 | US |
Cross Reference | NSN 3110-00-227-2803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1FA1305530 | 26437 | TRIUMPH ACTUATION SYSTEMS, LLC DIV TRIUMPH ACTUATION SYSTEMS - |
| 1SE3741 | 45014 | ORANGE ROLLER BEARING CO INC |
| 24465-6 | 92563 | MCGILL MANUFACTURING COMPANY INC DBA EMERSON POWER TRANSMISSION |
| 502-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| 6HDANG25 | 83590 | SMITH METER INC PARTS OPN |
| 6HDMILG3278A | 83590 | SMITH METER INC PARTS OPN |
| 6NBF817YJ | 3NPS1 | RBC AIRCRAFT PRODUCTS, INC. |
| 6NBF817YJ | 51588 | RBC BEARINGS INCORPORATED DIV WEST TRENTON DIVISION |
| 6NBF817YJ | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 6NBF817YJ086 | K0018 | TIMKEN EUROPE A BRANCH OF THE TIMKEN COMPANY |
| 6NBF817YJANG25 | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
| 8035005 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| AS21438 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| ATF3 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| BACB10B132 | 81205 | THE BOEING COMPANY DBA BOEING |
| BACB10BN06 | 81205 | THE BOEING COMPANY DBA BOEING |
| MS21438-106 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21438-106 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24465-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS502-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS502-6MILG3278 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-227-2803
Related Products | NSN 3110-00-227-2803
Technical Data | NSN 3110-00-227-2803
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 OR STEEL COMP 8620 OR STEEL OR STEEL COMP E50100 OR STEEL COMP E51100 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC 1ST MATERIAL RESPONSE OR 66 FED STD 1ST MATERIAL RESPONSE OR MIL-S-8690 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-7493 MIL SPEC 3RD MATERIAL RESPONSE OR QQ-S-624 FED SPEC 3RD MATERIAL RESPONSE OR QQ-S-633 FED SPEC 3RD MATERIAL RESPONSE OR 66 FED STD 4TH MATERIAL RESPONSE OR 66 FED STD 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM EXPOSED SURFACES AS MOUNTED CHROMIUM OUTER RING OUTSIDE DIAMETER |

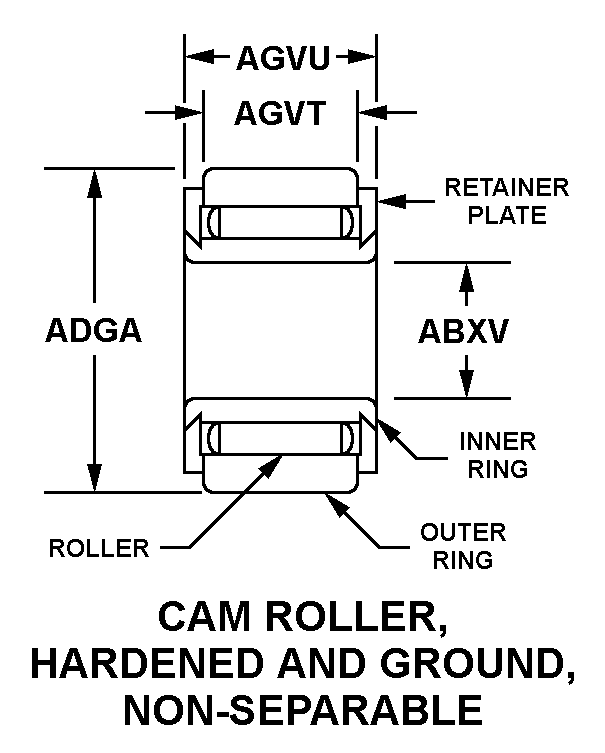

| STYLE DESIGNATOR | 430 CAM ROLLER, HARDENED AND GROUND, NON-SEPARABLE |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.0625 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3750 INCHES NOMINAL |
| INNER RING WIDTH | 0.5000 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| SPECIAL FEATURES | OIL HOLE AND GROOVE IN INNER RING |
Restrictions/Controls & Freight Information | NSN 3110-00-227-2803
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114690 | BALLS/ROLLS BEARING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-227-2803
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
