NSN 3110-00-227-2513 SS80022, SS800-22, Z99606X1FC9

Product Details | ANNULAR BALL BEARING

3110-00-227-2513 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.

Part Alternates: SS80022, SS800-22, Z99606X1FC9, G3DB187015, G3DB-187-015, PP047BC, 25011-0003, 306SZZQ5A7MILL35, 01005184306, 01-005184-306, 111030034000, 111-03003-4000, 12385771, 12619376, 1306RR, 1306RRG, 49128648, 4912864-8, 51458154006, 51-458-154-006, 63062ARSHT, 6306-2ARSHT, 63062RS, 6306-2RS, 63062RSJHB, 6306A2RSJMILL3545, 907594, 99606X1R5, 3110-00-227-2513, 00-227-2513, 3110002272513, 002272513, 250110003

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-227-2513	00014 ( BEARING, BALL, ANNULAR )

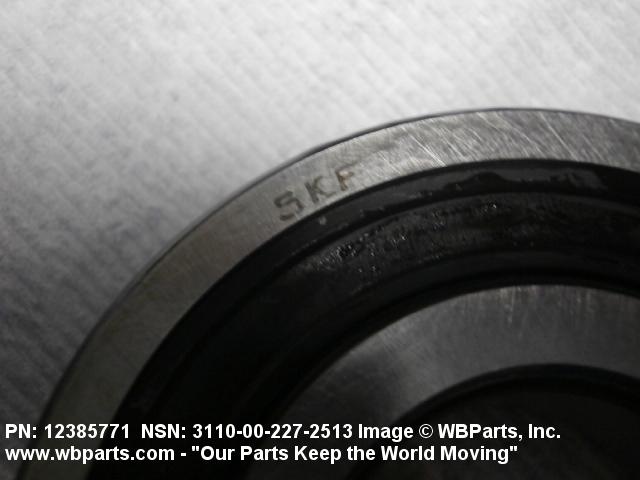

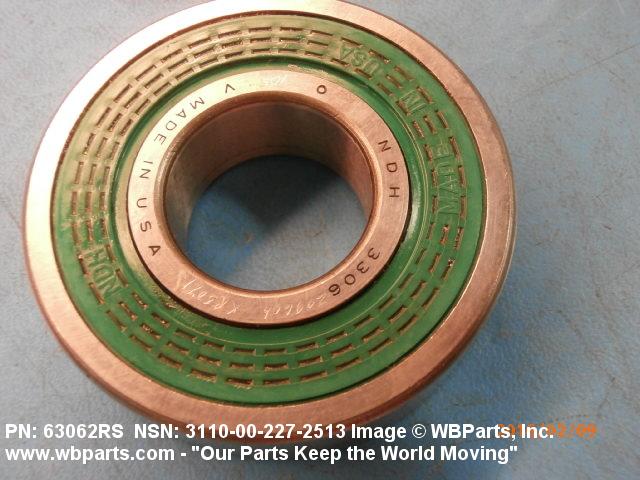

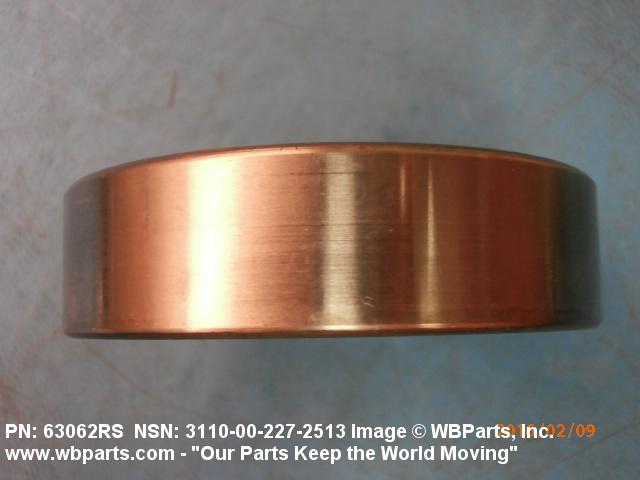

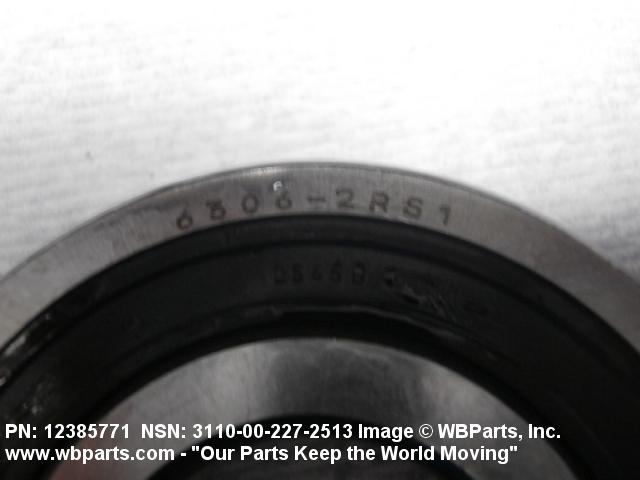

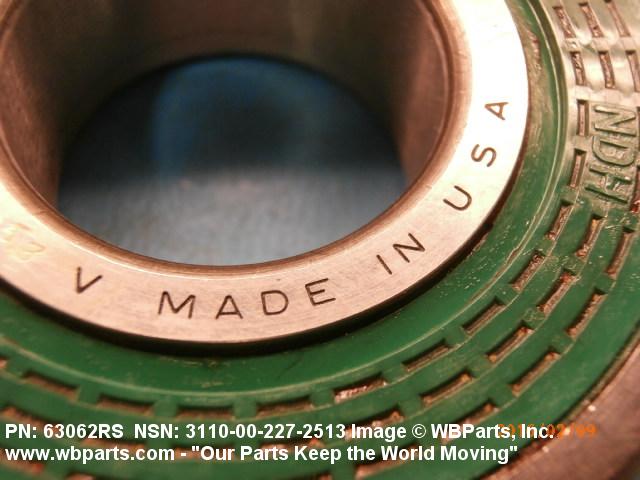

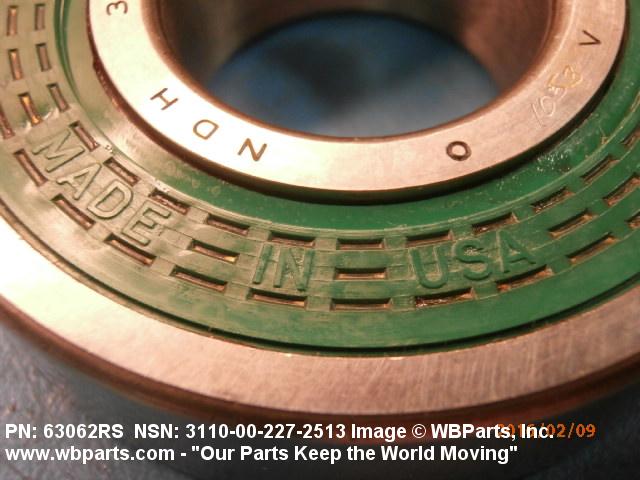

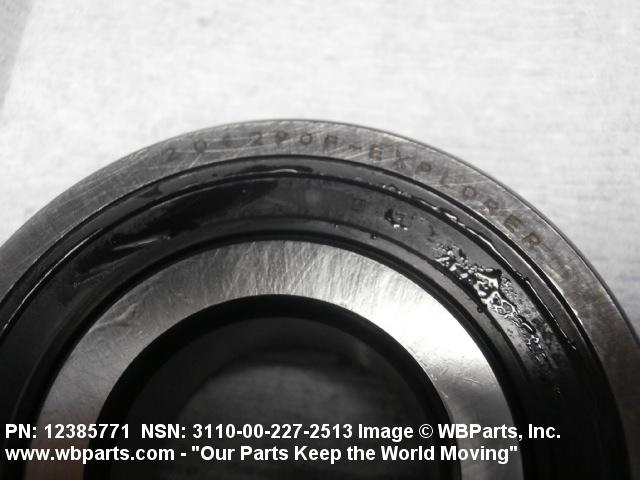

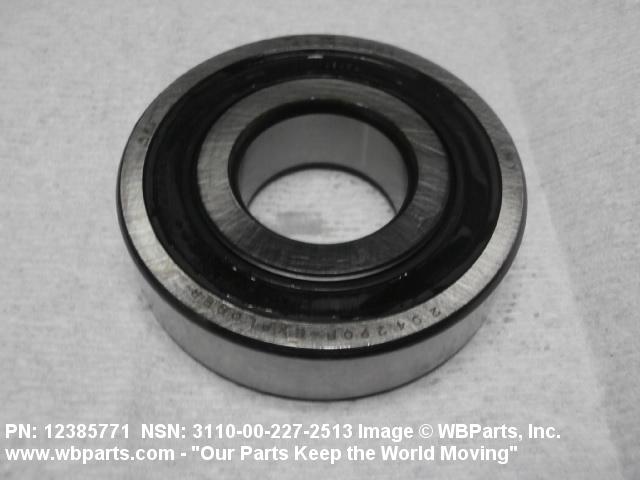

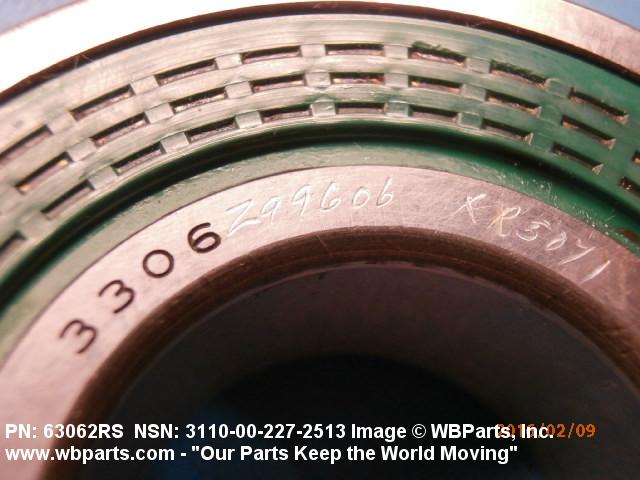

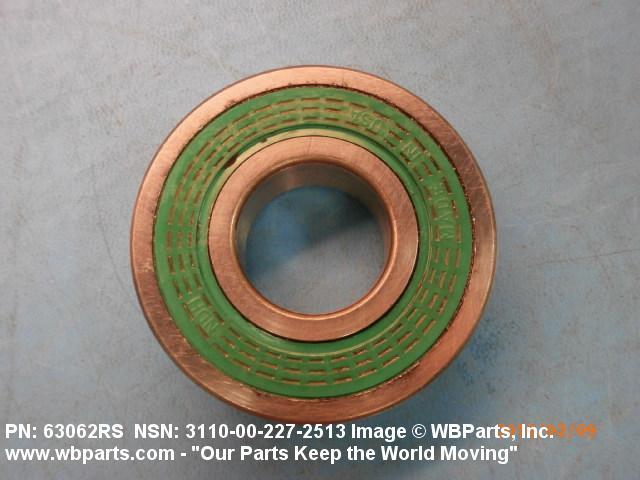

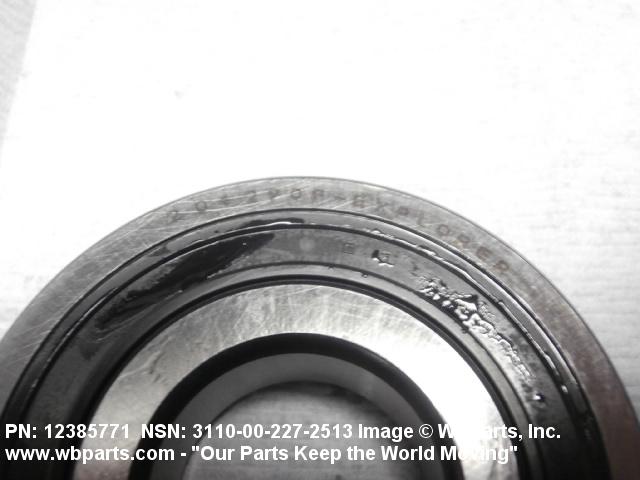

Drawings & Photos | NSN 3110-00-227-2513

Part Number	Request Date	QTY	Origin
3110-00-227-2513	2016-01-15	30	United States
3110-00-227-2513	2016-01-15	30	United States
3110-00-227-2513	2015-12-343	30	United States
Z99606X1FC9	2015-12-343	30	United States
3110-00-227-2513	2015-08-238	10	United States
12385771	2009-03-83	10	Canada
63062RS	2009-01-02	1	US
3110-00-227-2513	2008-02-35	5	DIBBS
3110-00-227-2513	2008-02-35	13	DIBBS
3110-00-227-2513	2008-02-35	15	DIBBS
3110-00-227-2513	2008-02-35	16	DIBBS
3110-00-227-2513	2008-02-35	20	DIBBS
3110-00-227-2513	2008-01-04	10	DIBBS
3110-00-227-2513	2008-01-04	21	DIBBS
3110-00-227-2513	2007-07-187	321	DIBBS
3110-00-227-2513	2007-06-166	1276	DIBBS
3110-00-227-2513	2007-06-163	1850	DIBBS
3110-00-227-2513	2007-06-157	1885	DIBBS
3110-00-227-2513	2007-05-141	2071	DIBBS
3110-00-227-2513	2007-05-136	2014	DIBBS
3110-00-227-2513	2007-05-134	2027	DIBBS
3110-00-227-2513	2007-05-125	2221	DIBBS
3110-00-227-2513	2007-04-93	432	DIBBS
3110-00-227-2513	2007-02-43	2880	DIBBS

Cross Reference | NSN 3110-00-227-2513

Part Number	Cage Code	Manufacturer
01-005184-306	64731	WESTERN SKY INDUSTRIES INC DBA ELECTROMECH TECHOLOGIES
111-03003-4000	94135	NAVAL ORDNANCE STANDARDS
12385771	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12385771	21335	TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE
12385771	21760	SCHATZ BEARING CORPORATION
12385771	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
12385771	3NPS1	RBC AIRCRAFT PRODUCTS, INC.
12385771	52676	SKF USA INC.
12619376	19200	US ARMY ARDEC RDECOM
1306RR	21760	SCHATZ BEARING CORPORATION
1306RRG	21760	SCHATZ BEARING CORPORATION
25011-0003	62265	VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO
306SZZQ5A7MILL35	38443	SKF USA INC DBA SKF AEROENGINE NORTH AMERICA
4912864-8	0AHU0	KALMAR AC INC
51-458-154-006	88310	SIEMENS-ALLIS INC MEDIUM MOTOR-GENERATOR DIV
6306-2ARSHT	52676	SKF USA INC.
6306-2RS	10408	LAWNEL CORP
63062RSJHB	52676	SKF USA INC.
6306A2RSJMILL3545	52676	SKF USA INC.
907594	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
99606X1R5	24617	GENERAL MOTORS CORP
99606X1R5	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV
G3DB-187-015	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
G3DB-187-015	59180	IMO INDUSTRIES INC. DBA IMO PUMP DIVISION
PP047BC	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
PP047BC	59180	IMO INDUSTRIES INC. DBA IMO PUMP DIVISION
SS800-22	4P412	INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND
SS800-22	54837	INGERSOLL-RAND CO TOOL GROUP HEADQUARTERS
SS800-22	65853	INGERSOLL-RAND CO POWER TOOL DIV
Z99606X1FC9	24617	GENERAL MOTORS CORP
Z99606X1FC9	43334	GENERAL MOTORS CORP DELCO MORAINE NDH DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3110-00-227-2513

Compare

Related Products | NSN 3110-00-227-2513

3110-00-227-2514, 3110-00-227-2516, 3110-00-227-2517, 3110-00-227-2518, 3110-00-227-2525

Technical Data | NSN 3110-00-227-2513

Characteristic	Specifications
MATERIAL	STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL RETAINER RUBBER SYNTHETIC SEAL
STYLE DESIGNATOR	10A NON-LOADING GROOVE, NON-SEPARABLE

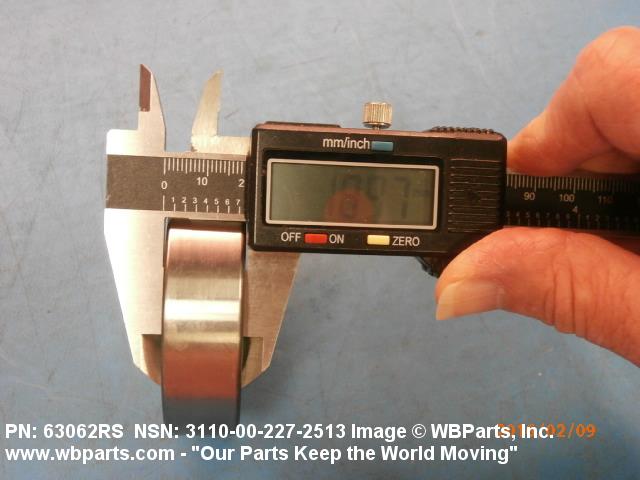

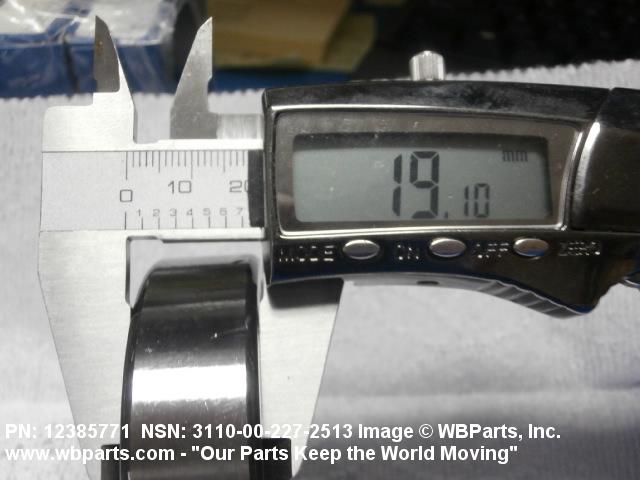

OVERALL WIDTH	19.0 MILLIMETERS NOMINAL

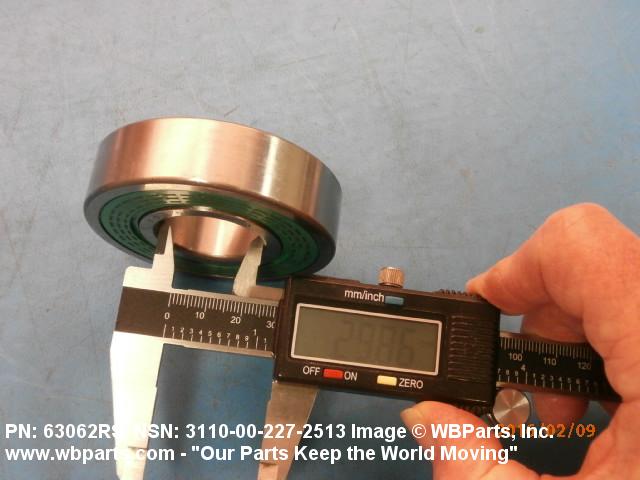

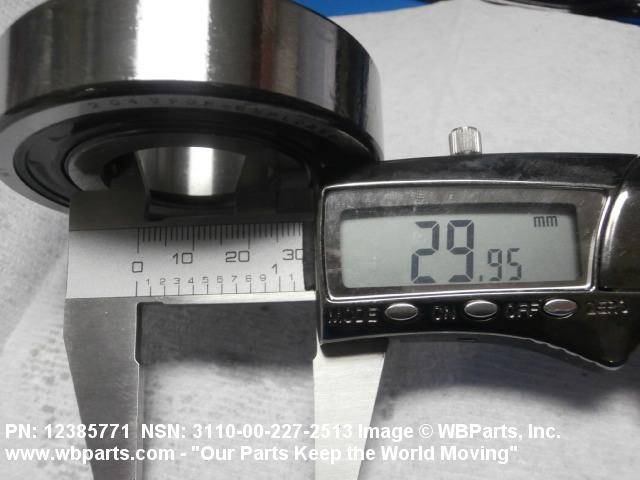

BORE DIAMETER	30.0 MILLIMETERS NOMINAL

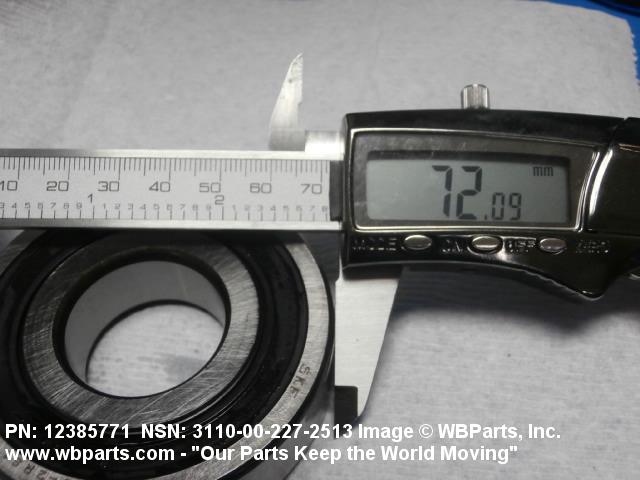

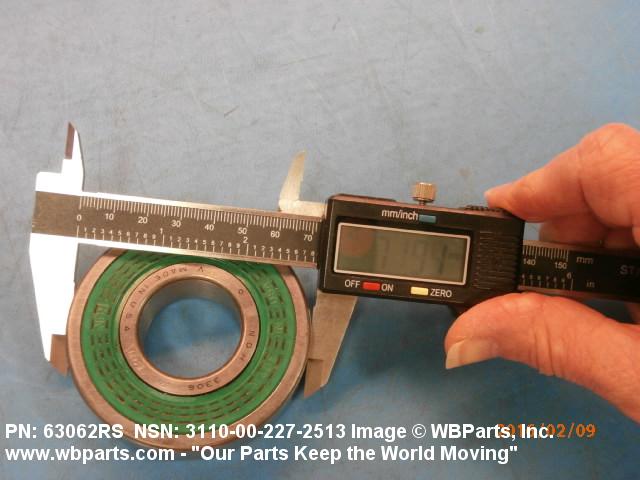

OVERALL OUTSIDE DIAMETER	72.0 MILLIMETERS NOMINAL
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE
STANDARD TOLERANCE DESIGNATION	ABEC NO.1
BORE SHAPE	STRAIGHT
SURFACE FINISH	GROUND
RETAINER FABRICATION METHOD	PRESSED
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
LOAD DIRECTION	RADIAL
INTERNAL FIT-UP DESIGNATION	STANDARD

Restrictions/Controls & Freight Information | NSN 3110-00-227-2513

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 3110-00-227-2513

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
