NSN 3110-00-198-2799 469KB25, 00-198-2799, 001982799
Product Details | TAPERED ROLLER BEARING CUP
3110-00-198-2799 An outer component of a tapered roller bearing which provides a contact surface for the rolling elements of the bearing.
Part Alternates: 469KB25, 3110-00-198-2799, 00-198-2799, 3110001982799, 001982799
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-198-2799 | 00024 ( CUP, TAPERED ROLLER BEARING ) |

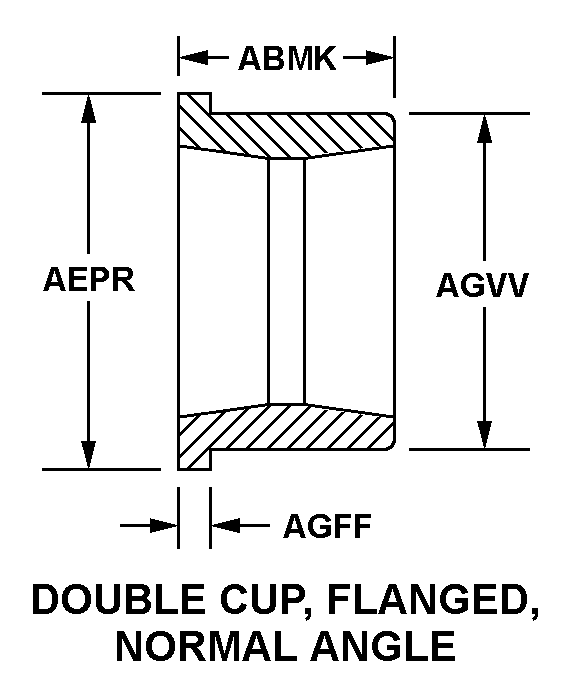

Drawings & Photos | NSN 3110-00-198-2799
Cross Reference | NSN 3110-00-198-2799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 469KB25 | 76040 | MACK TRUCKS INC PARTS OPN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-2799
Related Products | NSN 3110-00-198-2799
Technical Data | NSN 3110-00-198-2799
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 574 DOUBLE CUP, FLANGED, NORMAL ANGLE |
| OVERALL WIDTH | 2.0600 INCHES MINIMUM AND 2.0620 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 7.5000 INCHES NOMINAL |
| FLANGE WIDTH | 0.5000 INCHES NOMINAL |
| OUTER RING OUTSIDE DIAMETER | 4.9980 INCHES MINIMUM AND 4.9990 INCHES MAXIMUM |
| BACKFACE CORNER RADIUS | 0.0312 INCHES NOMINAL |
| SPECIAL FEATURES | 1/32 IN. BACK FACE CORNER RADIUS,LUBE HOLE IN CUP,DRILLED AND TAPPED HOLES ON FLANGE OD |
Restrictions/Controls & Freight Information | NSN 3110-00-198-2799
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-198-2799
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
