NSN 3110-00-198-2057 M81793/03LA1N5N1A1, M8179303LA1N5N1A1, M81793BKMAN0GAF51AB1
Product Details | ANNULAR BALL BEARING
3110-00-198-2057 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: M81793/03LA1N5N1A1, M8179303LA1N5N1A1, M81793BKMAN0GAF51AB1, M81793-BKMAN0GAF51AB1, M81793BKNMAN0GAF51AB1, M81793-BKNMAN0GAF51AB1, M81793BKNMAX0SAC51AB1, M81793-BKNMAX0SAC51AB1, SR6DK58/24, SR6DK5824, SR6K5, SR6K5-0-11 ABEC 5, SR6K5011ABEC5, SR6K502, SR6K5G2, SR6R5P49L02, SRR6EZF5454JCLS, SSR6LR5J, MILB81793, MIL-B-81793, PAMMS3KFS171A, PMS3KFS67205, R610T507S023H89PE354R, R6-10T5-07S023H89PE354R, R6K12K5VL474, R6X2K5, 00212, 11502743-1, 1233391PC4, 5189258002, 5189258-002, 3110-00-198-2057, 00-198-2057, 3110001982057, 001982057, 115027431
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-198-2057 | 00014 ( BEARING, BALL, ANNULAR ) |

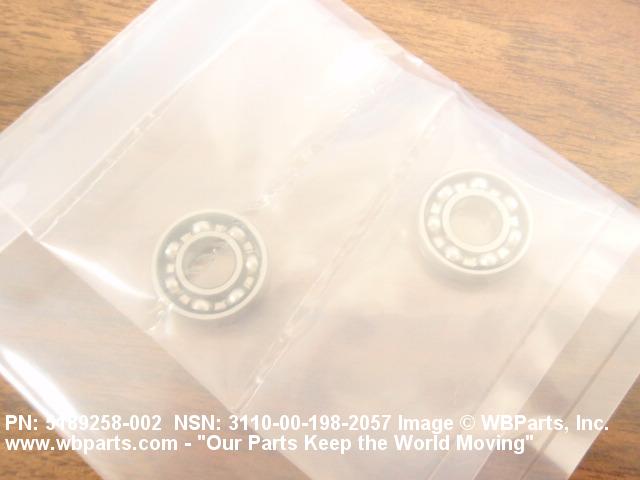

Drawings & Photos | NSN 3110-00-198-2057
Demand History | NSN 3110-00-198-2057
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-198-2057 | 2016-03-63 | 57 | DIBBS |
| 3110-00-198-2057 | 2016-02-55 | 57 | DIBBS |
| 3110-00-198-2057 | 2016-02-33 | 57 | DIBBS |
| 3110-00-198-2057 | 2016-01-20 | 57 | DIBBS |
| MILB81793 | 2011-04-103 | 150 | US |
| 3110-00-198-2057 | 2010-07-189 | 2 | Portugal |
| 3110-00-198-2057 | 2010-03-88 | 2 | Portugal |
Cross Reference | NSN 3110-00-198-2057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00212 | 07213 | HONEYWELL AEROSPATIALE INC |
| 11502743-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 1233391PC4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 5189258-002 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| M81793-BKMAN0GAF51AB1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81793-BKNMAN0GAF51AB1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81793-BKNMAX0SAC51AB1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M81793/03LA1N5N1A1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-B-81793 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PAMMS3KFS171A | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| PMS3KFS67205 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| R6-10T5-07S023H89PE354R | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| R6K12K5VL474 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| R6X2K5 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| SR6DK58/24 | 83086 | NEW HAMPSHIRE BALL BEARINGS, INC. DIV HITECH DIVISION |
| SR6K5 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| SR6K5-0-11 ABEC 5 | 70854 | BARDEN CORPORATION, THE DIV BARDEN PRECISION BEARINGS |
| SR6K502 | U1381 | ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD |
| SR6K5G2 | U1381 | ROLLS-ROYCE MARINE ELECTRICAL SYSTEMS LTD |
| SR6R5P49L02 | 40920 | MPB CORPORATION DBA TIMKEN SUPER PRECISION |
| SRR6EZF5454JCLS | 24617 | GENERAL MOTORS CORP |
| SRR6EZF5454JCLS | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
| SSR6LR5J | 43334 | GENERAL MOTORS CORP DELCO MORAINE NDH DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-198-2057
Related Products | NSN 3110-00-198-2057
Technical Data | NSN 3110-00-198-2057
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | 10A NON-LOADING GROOVE, NON-SEPARABLE |
| OVERALL WIDTH | 0.2188 INCHES NOMINAL |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8750 INCHES NOMINAL |
| LUBRICATION MATERIAL | OIL |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-L-6085 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | LOOSE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-B-81793 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M81793/03LA1N5N1A1 |
Restrictions/Controls & Freight Information | NSN 3110-00-198-2057
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-198-2057
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
