NSN 3110-00-195-5291 PSMN415WS, 00-195-5291, 001955291
Product Details | ANNULAR BALL BEARING
3110-00-195-5291 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Part Alternates: PSMN415WS, 3110-00-195-5291, 00-195-5291, 3110001955291, 001955291
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 MAR 1970 | 00-195-5291 | 00014 ( BEARING, BALL, ANNULAR ) |
Drawings & Photos | NSN 3110-00-195-5291
Cross Reference | NSN 3110-00-195-5291
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PSMN415WS | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-195-5291
Technical Data | NSN 3110-00-195-5291
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

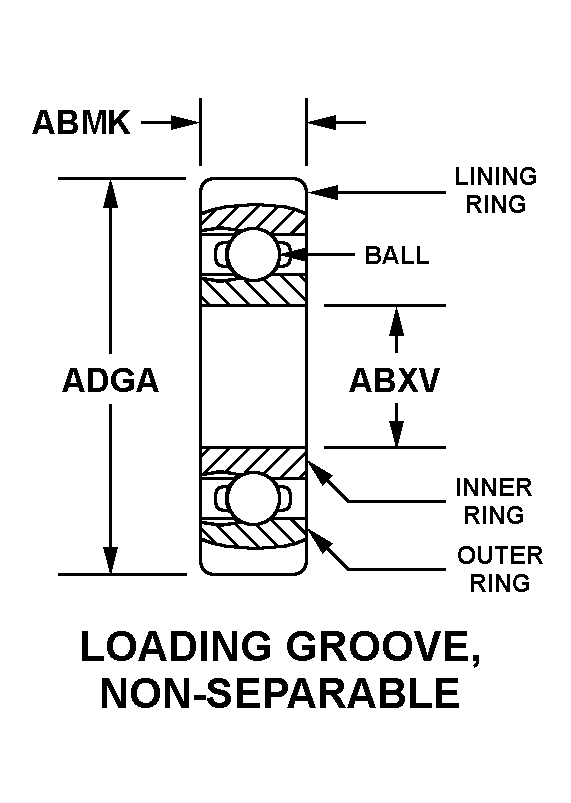

| STYLE DESIGNATOR | 86 LOADING GROOVE, NON-SEPARABLE |
| BORE DIAMETER | 4.9375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 300.00 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 59.00 MILLIMETERS NOMINAL |
| INNER RING WIDTH | 4.5625 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | EXTERNAL |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | LOOSE |
| FEATURES PROVIDED | ALIGNING RING |
Restrictions/Controls & Freight Information | NSN 3110-00-195-5291
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
