NSN 3110-00-194-3955 2300, 2300U, 7620
Product Details | SELF-ALIGNING ROLLER BEARING
3110-00-194-3955 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Part Alternates: 2300, 2300U, 7620, 3110-00-194-3955, 00-194-3955, 3110001943955, 001943955
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 11 MAR 1970 | 00-194-3955 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
Drawings & Photos | NSN 3110-00-194-3955
Demand History | NSN 3110-00-194-3955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7620 | 2012-12-339 | 38 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-194-3955
Technical Data | NSN 3110-00-194-3955
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

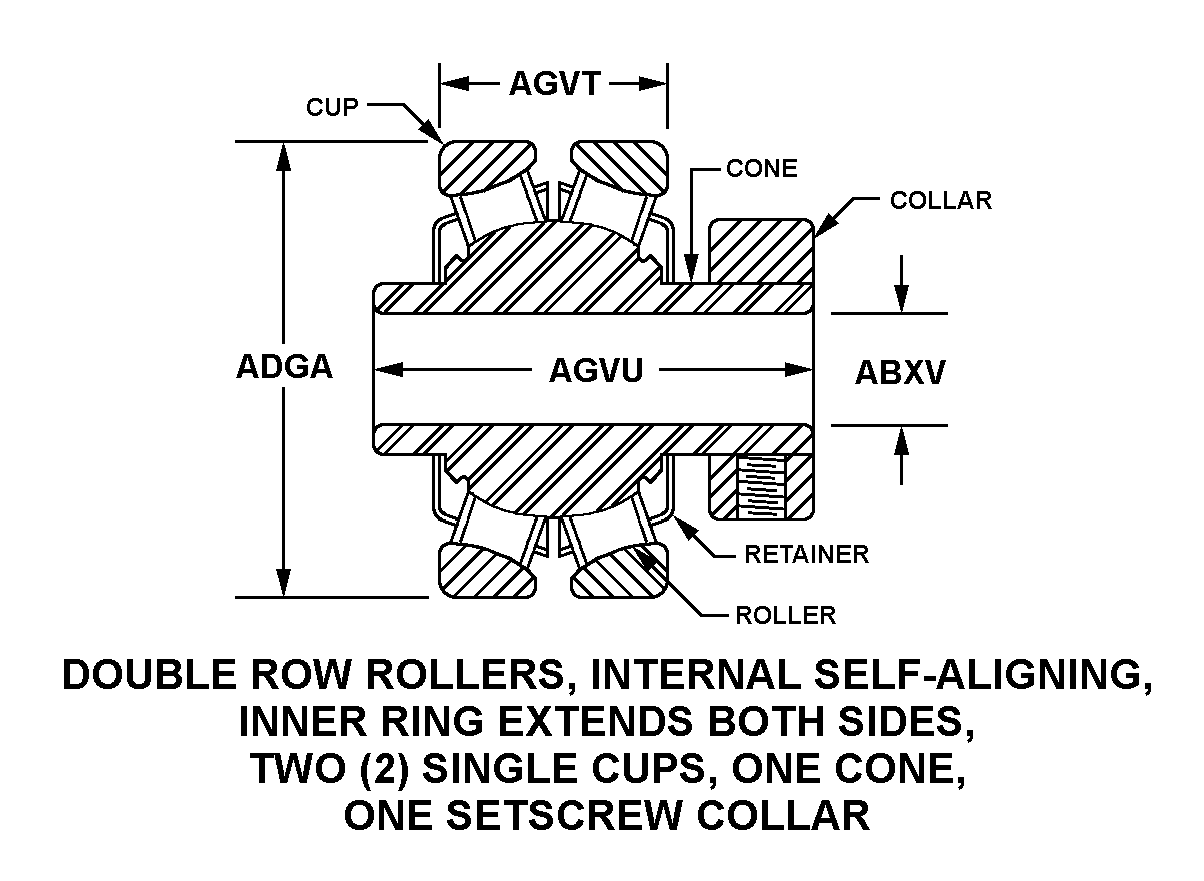

| STYLE DESIGNATOR | 296 DOUBLE ROW ROLLERS, INTERNAL SELF-ALIGNING, INNER RING EXTENDS BOTH SIDES, TWO (2) SINGLE CUPS, ONE CONE, ONE SETSCREW COLLAR |
| BORE DIAMETER | 3.0000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 5.1172 INCHES NOMINAL |
| OUTER RING WIDTH | 3.3700 INCHES NOMINAL |
| INNER RING WIDTH | 4.0070 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
Restrictions/Controls & Freight Information | NSN 3110-00-194-3955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-194-3955
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
